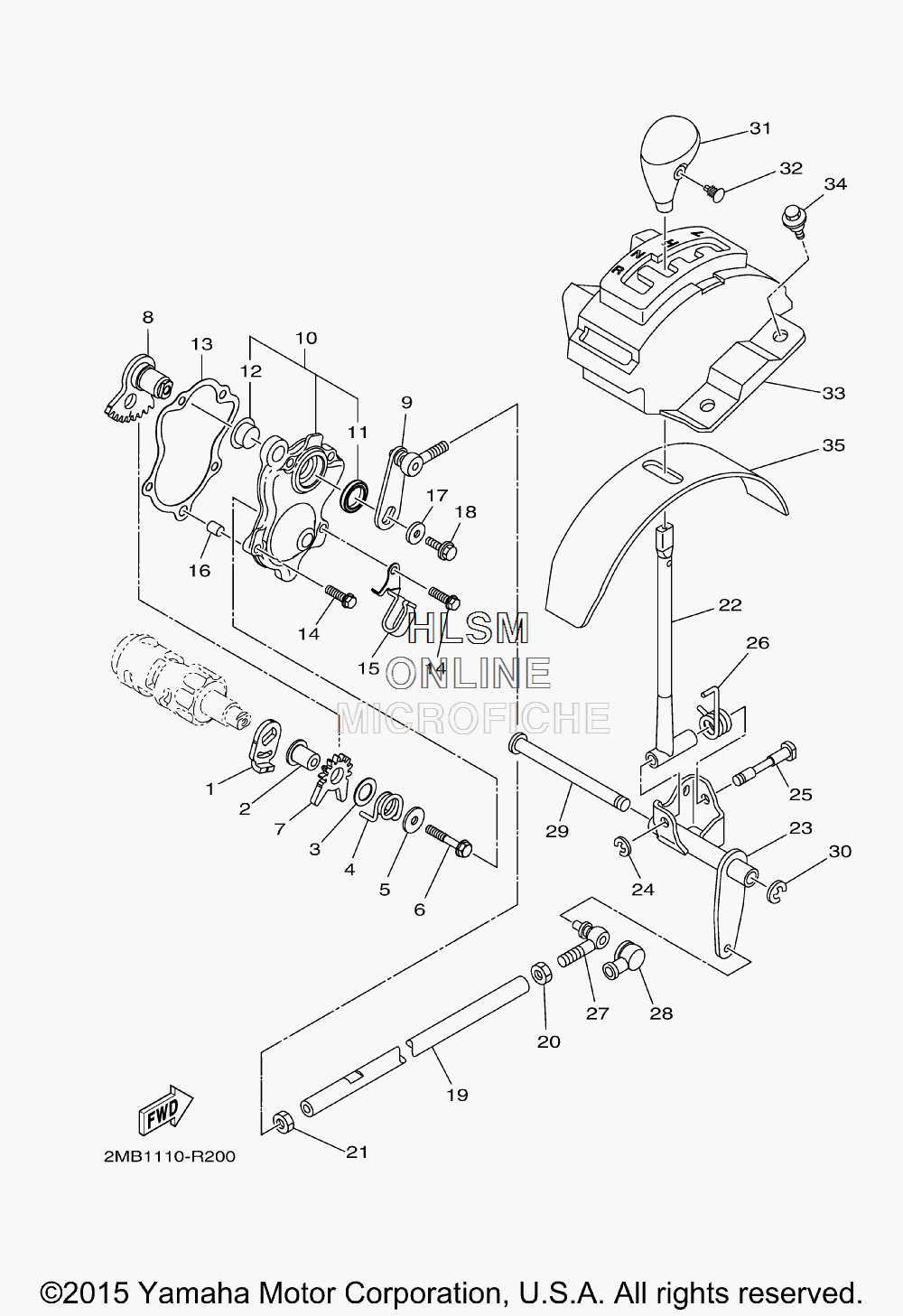

SHIFT SHAFT для Yamaha WOLVERINE R-SPEC EPS [YXE70WPXGG] - 2016 года выпуска
-
№АртикулНазвание
-
12MB-E8198-00-00 LEVERLEVER
-
22MB-E8413-00-00 COLLAR, SHIFTERCOLLAR, SHIFTER
-
32MB-E8137-00-00 WASHER 1WASHER 1
-
42MB-E8183-00-00 SPRINGSPRING
-
52MB-E8138-00-00 WASHER 2WASHER 2
-
62MB-E5482-20-00 BOLT 2BOLT 2
-
72MB-E8191-00-00 LEVERLEVER
-
82MB-E8103-00-00 SHIFT SHAFT COMP.SHIFT SHAFT COMP.
-
92MB-18104-00-00 SHIFT GUIDE COMP.SHIFT GUIDE COMP.
-
102MB-E8380-00-00 SHIFTER BRKT. ASSYSHIFTER BRKT. ASSY
-
112MB-E76G3-00-00 ...OIL SEAL 2...OIL SEAL 2
-
123B4-18582-00-00 ...SPACER 2...SPACER 2
-
132MB-E8146-00-00 GASKETGASKET
-
142MB-E5481-10-00 BOLT 1BOLT 1
-
152MB-E261G-00-00 CLAMP 2CLAMP 2
-
162MB-E8438-00-00 PIN, DOWELPIN, DOWEL
-
1790201-06036-00 WASHER, PLATEWASHER, PLATE
-
1890105-06176-00 BOLT, FLANGEBOLT, FLANGE
-
192MB-18115-00-00 ROD, SHIFTROD, SHIFT
-
2090170-08358-00 NUTNUT
-
2195302-08700-00 NUT, HEXAGONNUT, HEXAGON
-
221XD-E8190-10-00 LEVER COMP. 1LEVER COMP. 1
-
232MB-E8169-00-00 ARM, SHIFT 2ARM, SHIFT 2
-
2499002-06600-00 CIRCLIPCIRCLIP
-
251HP-E8125-00-00 SHAFT, SHIFTSHAFT, SHIFT
-
261HP-E8196-00-00 SPRING, RETURNSPRING, RETURN
-
271KT-18157-00-00 JOINT 2JOINT 2
-
282H9-18154-00-00 COVER, DUSTCOVER, DUST
-
292MB-18173-00-00 PIN, SHIFTPIN, SHIFT
-
3099001-08600-00 CIRCLIPCIRCLIP
-
3128P-18174-00-00 KNOB, SHIFT LEVERKNOB, SHIFT LEVER
-
3290269-05055-00 RIVET SPEC'L SHAPERIVET SPEC'L SHAPE
-
331XD-E8172-00-00 GUIDE, SHIFTGUIDE, SHIFT
-
3490109-06172-00 BOLTBOLT
-
351HP-E8154-00-00 COVER, DUSTCOVER, DUST
