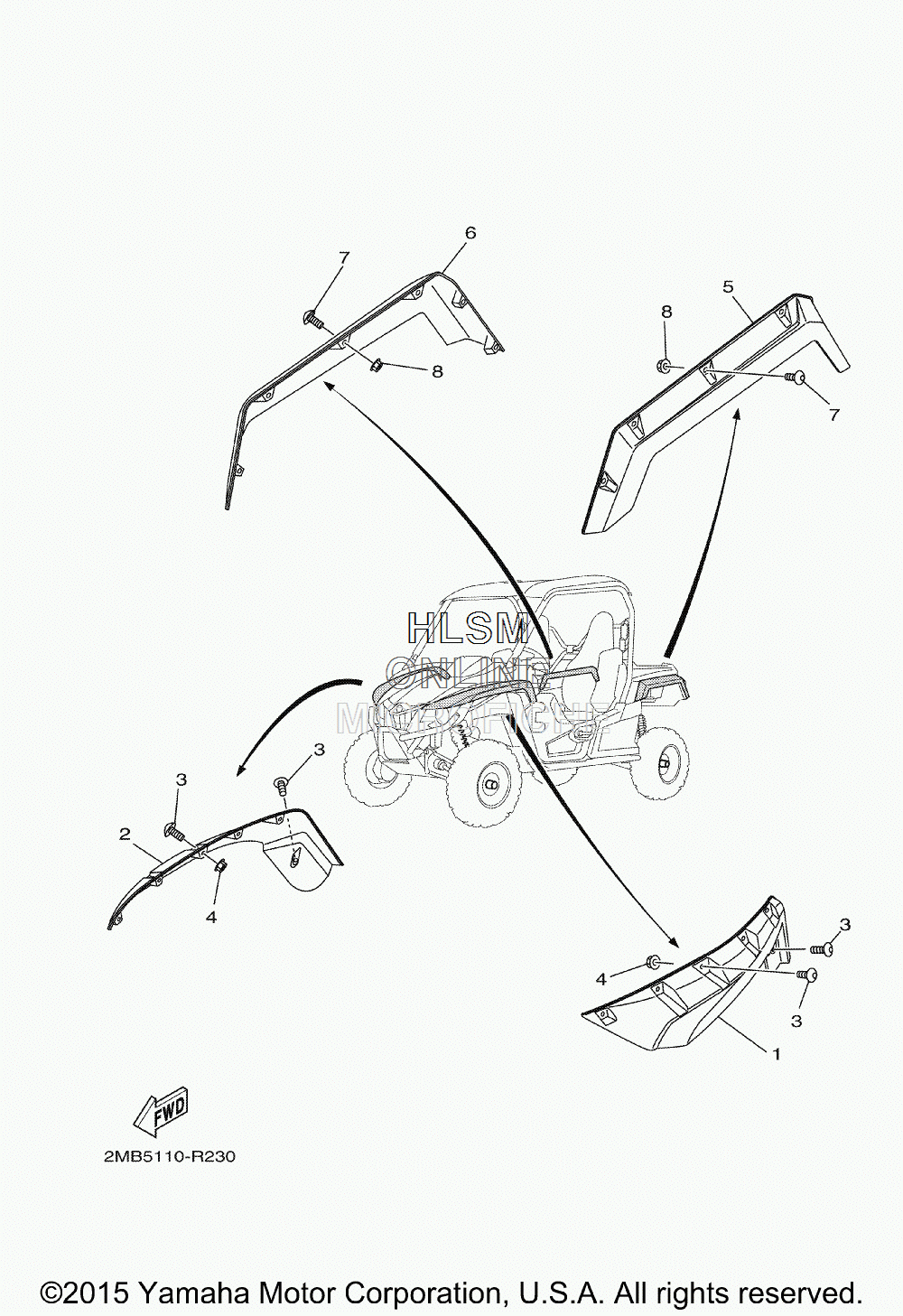

FENDERS - FRONT AND REAR для Yamaha WOLVERINE R-SPEC HUNTER [YXE70WDHGH] - 2016 года выпуска
-
№АртикулНазвание
-
12MB-F1551-00-00 FENDER, OVERFENDER, OVER
-
22MB-F1555-00-00 FENDER, OVER 2FENDER, OVER 2
-
390149-06302-00 SCREW SPEC'L SHAPESCREW SPEC'L SHAPE
-
495602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
52MB-F1559-00-00 FENDER, OVER 3FENDER, OVER 3
-
62MB-F1560-00-00 FENDER, OVER 4FENDER, OVER 4
-
790149-06302-00 SCREW SPEC'L SHAPESCREW SPEC'L SHAPE
-
895602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
