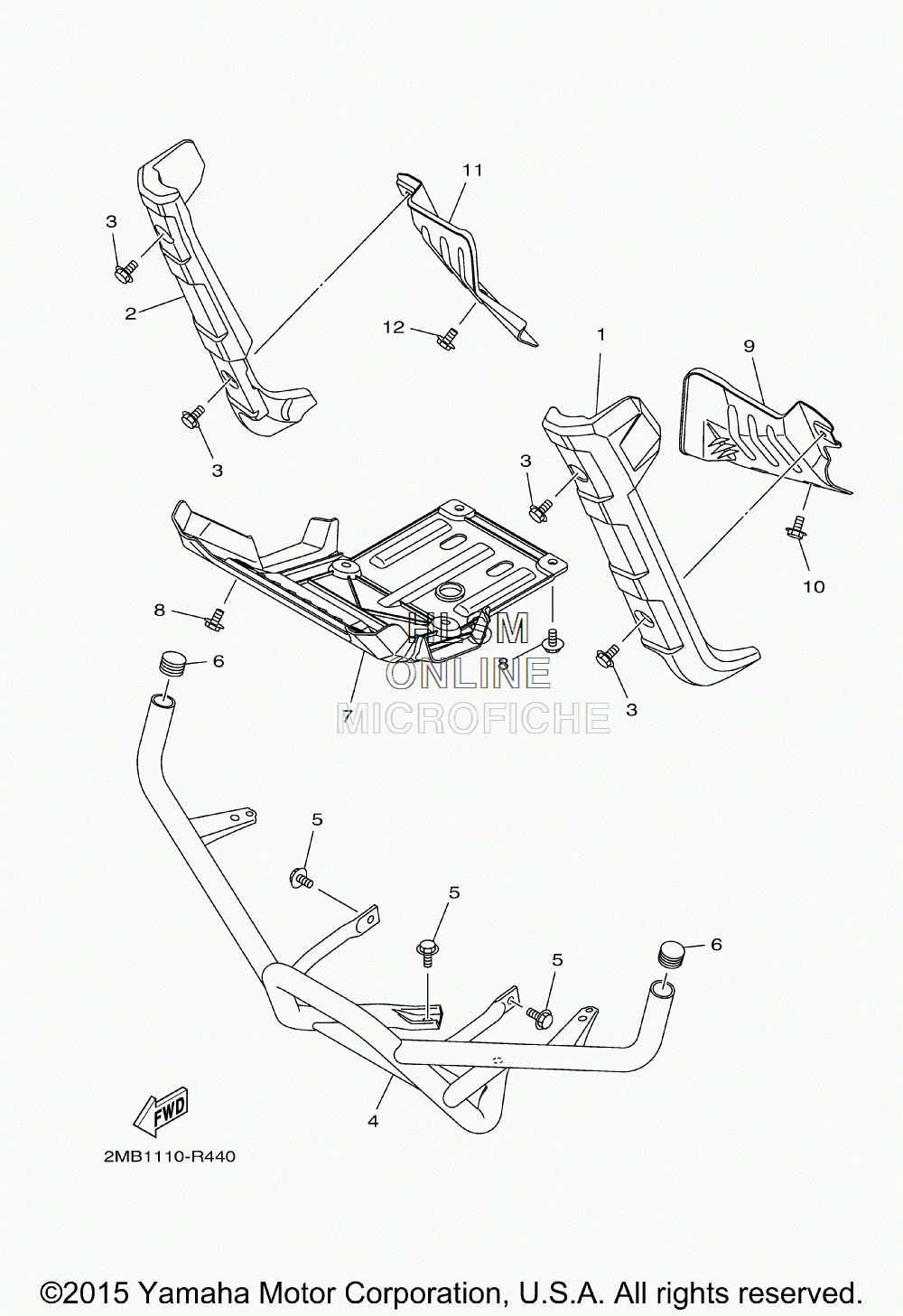

RACK AND BUMPER для Yamaha WOLVERINE R-SPEC HUNTER [YXE70WDHGH] - 2016 года выпуска
-
№АртикулНазвание
-
12MB-K8185-00-00 EXTENSION, FRONT FENDER 1EXTENSION, FRONT FENDER 1
-
22MB-K8186-00-00 EXTENSION, FRONT FENDER 2EXTENSION, FRONT FENDER 2
-
390119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
42MB-F845N-00-00 BAR, CARRY FRONTBAR, CARRY FRONT
-
595812-10016-00 BOLT, FLANGEBOLT, FLANGE
-
65UG-F2417-00-00 PLUGPLUG
-
72MB-F8385-00-00 COVER, UNDERCOVER, UNDER
-
890109-068A5-00 BOLTBOLT
-
92MB-F840K-00-00 GUARD COMP.GUARD COMP.
-
1090109-06202-00 BOLTBOLT
-
112MB-F840M-00-00 GUARD COMP. 2GUARD COMP. 2
-
1290109-06202-00 BOLTBOLT
