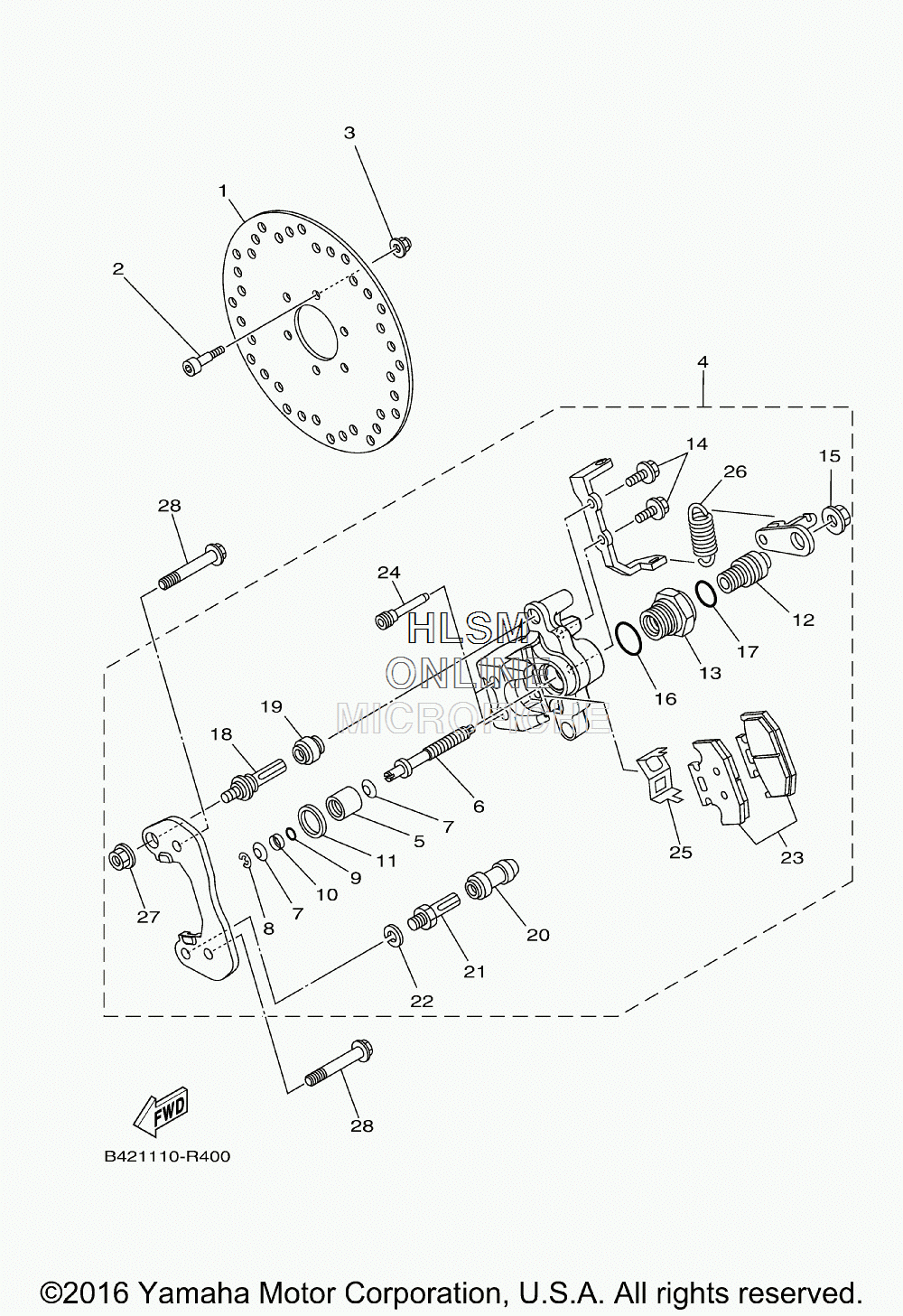

PARKING BRAKE ASSY для Yamaha VIKING EPS SPECIAL EDITION - 2017 года выпуска
-
№АртикулНазвание
-
11XD-F5711-01-00 DISC, BRAKEDISC, BRAKE
-
290110-06228-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
395602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
41XD-25905-00-00 PARKING BRAKE ASSYPARKING BRAKE ASSY
-
55B4-25814-10-00 ...PISTON, CALIPER...PISTON, CALIPER
-
65B4-25880-00-00 ...PUSH ROD COMP....PUSH ROD COMP.
-
75B4-2581R-00-00 ...WASHER, CONICAL SPRING...WASHER, CONICAL SPRING
-
85B4-25415-00-00 ...CIRCLIP...CIRCLIP
-
95B4-25976-00-00 ...O-RING...O-RING
-
105B4-25913-00-00 ...RETAINER...RETAINER
-
115B4-25975-00-00 ...RUBBER, BUSHING...RUBBER, BUSHING
-
125B4-25978-00-00 ...SHAFT L...SHAFT L
-
135B4-25973-00-00 ...NUT...NUT
-
145B4-25833-00-00 ...BOLT, FITTING...BOLT, FITTING
-
151UY-25973-51-00 ...NUT...NUT
-
165B4-25976-10-00 ...O-RING...O-RING
-
175B4-25976-20-00 ...O-RING...O-RING
-
183JD-25926-00-00 ...BOLT...BOLT
-
193JD-25917-00-00 ...BOOT, CALIPER...BOOT, CALIPER
-
201UY-25937-51-00 ...BOOT 2...BOOT 2
-
211UY-25926-51-00 ...BOLT...BOLT
-
221UY-25938-51-00 ...WASHER, SPRING...WASHER, SPRING
-
235B4-25806-00-00 ...BRAKE PAD KIT 2...BRAKE PAD KIT 2
-
245B4-25924-00-00 ...PIN, PAD...PIN, PAD
-
255B4-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
265B4-25977-00-00 ...SPRING, RETURN...SPRING, RETURN
-
275B4-2585F-00-00 ...NUT...NUT
-
2890105-10402-00 BOLT, FLANGEBOLT, FLANGE
