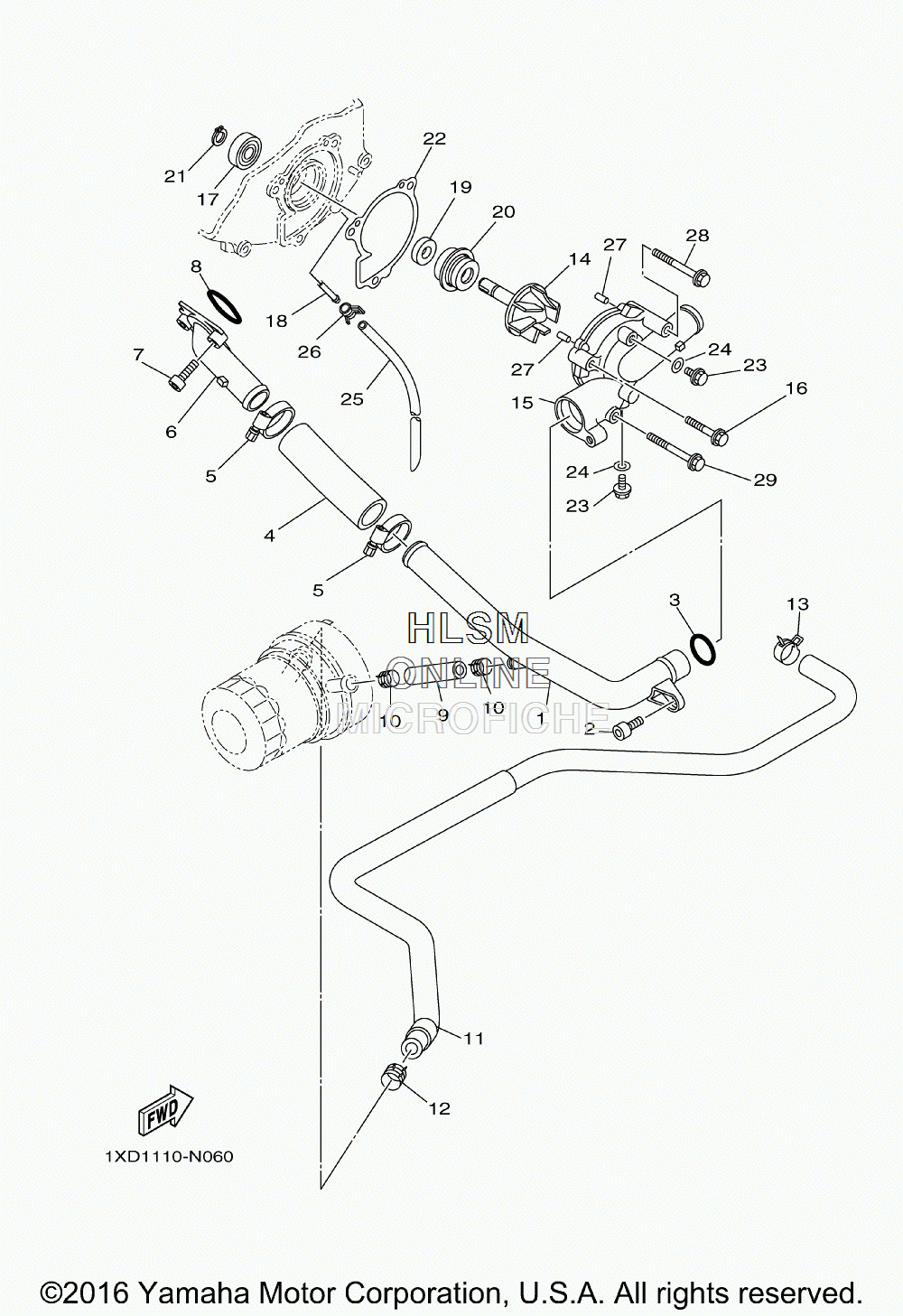

WATER PUMP ASSY для Yamaha VIKING EPS SPECIAL EDITION - 2017 года выпуска
-
№АртикулНазвание
-
11XD-12481-00-00 PIPE 1PIPE 1
-
291312-06012-00 BOLTBOLT
-
393210-21190-00 O-RINGO-RING
-
490445-29002-00 HOSE (L88)HOSE (L88)
-
590450-32015-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
65KM-12469-00-00 JOINT 1JOINT 1
-
791312-06020-00 BOLTBOLT
-
893210-33786-00 O-RINGO-RING
-
990445-16018-00 HOSE (L58)HOSE (L58)
-
1090467-15054-00 CLIPCLIP
-
111XD-1243E-00-00 HOSE 2HOSE 2
-
1290467-15054-00 CLIPCLIP
-
1390467-15054-00 CLIPCLIP
-
143B4-12450-00-00 IMPELLER SHAFT ASSYIMPELLER SHAFT ASSY
-
155B4-12422-00-00 COVER, HOUSINGCOVER, HOUSING
-
1695022-06030-00 BOLT, FLANGEBOLT, FLANGE
-
1793306-00006-00 BEARINGBEARING
-
185D3-1243K-00-00 PIPE, DRAINPIPE, DRAIN
-
1993101-10090-00 OIL SEALOIL SEAL
-
2011H-12438-10-00 SEAL, MECHANICALSEAL, MECHANICAL
-
2199009-10400-00 CIRCLIPCIRCLIP
-
223B4-12428-00-00 GASKET, HOUSING COVER 2GASKET, HOUSING COVER 2
-
2395022-06010-00 BOLT, FLANGEBOLT, FLANGE
-
2490430-06014-00 GASKETGASKET
-
2590445-07340-00 HOSE (L310)HOSE (L310)
-
2690467-07093-00 CLIPCLIP
-
2793604-10011-00 PIN, DOWELPIN, DOWEL
-
2895022-06050-00 BOLT, FLANGEBOLT, FLANGE
-
2995022-06050-00 BOLT, FLANGEBOLT, FLANGE
