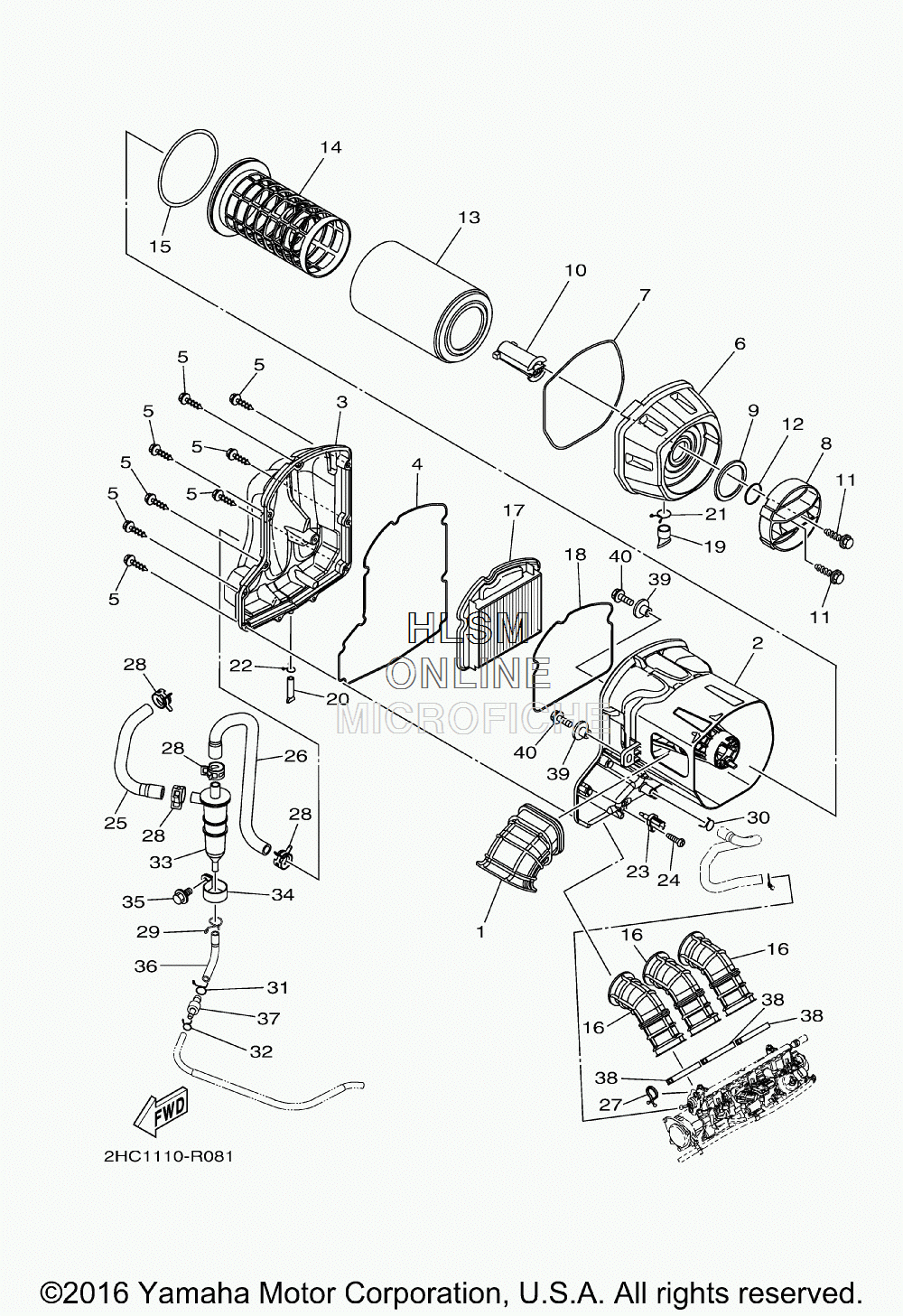

AIR CLEANER W/ INTAKE для Yamaha YXZ1000R EPS SS SPECIAL EDITION (TACTICAL BLACK) - 2017 года выпуска
-
№АртикулНазвание
-
12HC-E4437-01-00 DUCTDUCT
-
22HC-E4411-01-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
32HC-E4421-00-00 CASE, AIR CLEANER 2CASE, AIR CLEANER 2
-
42HC-E4452-00-00 SEALSEAL
-
52HC-E4429-00-00 SCREWSCREW
-
62HC-E4412-00-00 CAP, CLEANER CASE 1CAP, CLEANER CASE 1
-
72HC-E4457-01-00 SEALSEAL
-
82HC-E4422-00-00 CAP, CLEANER CASE 2CAP, CLEANER CASE 2
-
92HC-E4126-00-00 GASKETGASKET
-
102HC-E445B-00-00 LEVER 1LEVER 1
-
112HC-E4429-00-00 SCREWSCREW
-
122HC-E4476-00-00 SEALSEAL
-
132HC-E4451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
142HC-E4458-00-00 GUIDEGUIDE
-
152HC-E4467-00-00 SEALSEAL
-
162HC-E4453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
172HC-E4461-00-00 ELEMENT, AIR CLEANER 2ELEMENT, AIR CLEANER 2
-
182HC-E4462-00-00 SEALSEAL
-
19B16-E443E-00-00 PIPE, DRAINPIPE, DRAIN
-
204ST-E443E-00-00 PIPE, DRAINPIPE, DRAIN
-
2190467-220A1-00 CLIPCLIP
-
2290467-110A3-00 CLIPCLIP
-
238FP-85886-00-00 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
2497707-50520-00 SCREW, TAPPINGSCREW, TAPPING
-
252HC-F1745-00-00 PIPE, OIL TANK BREATHERPIPE, OIL TANK BREATHER
-
262HC-F174N-00-00 PIPE, OIL TANKPIPE, OIL TANK
-
2790464-23041-00 CLAMPCLAMP
-
2890467-22097-00 CLIPCLIP
-
2990467-140A4-00 CLIPCLIP
-
3090467-180A1-00 CLIPCLIP
-
3190467-13M13-00 CLIPCLIP
-
3290467-110A3-00 CLIPCLIP
-
336TA-15370-00-00 BREATHER ASSYBREATHER ASSY
-
346TA-15378-00-00 HOLDERHOLDER
-
3595822-08016-00 BOLT, FLANGEBOLT, FLANGE
-
362HC-11167-00-00 PIPE, BREATHER 2PIPE, BREATHER 2
-
3767F-24377-00-00 PIPE, JOINT 2PIPE, JOINT 2
-
3890450-56009-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
3990387-07051-00 COLLARCOLLAR
-
4095812-06020-00 BOLT, FLANGEBOLT, FLANGE
