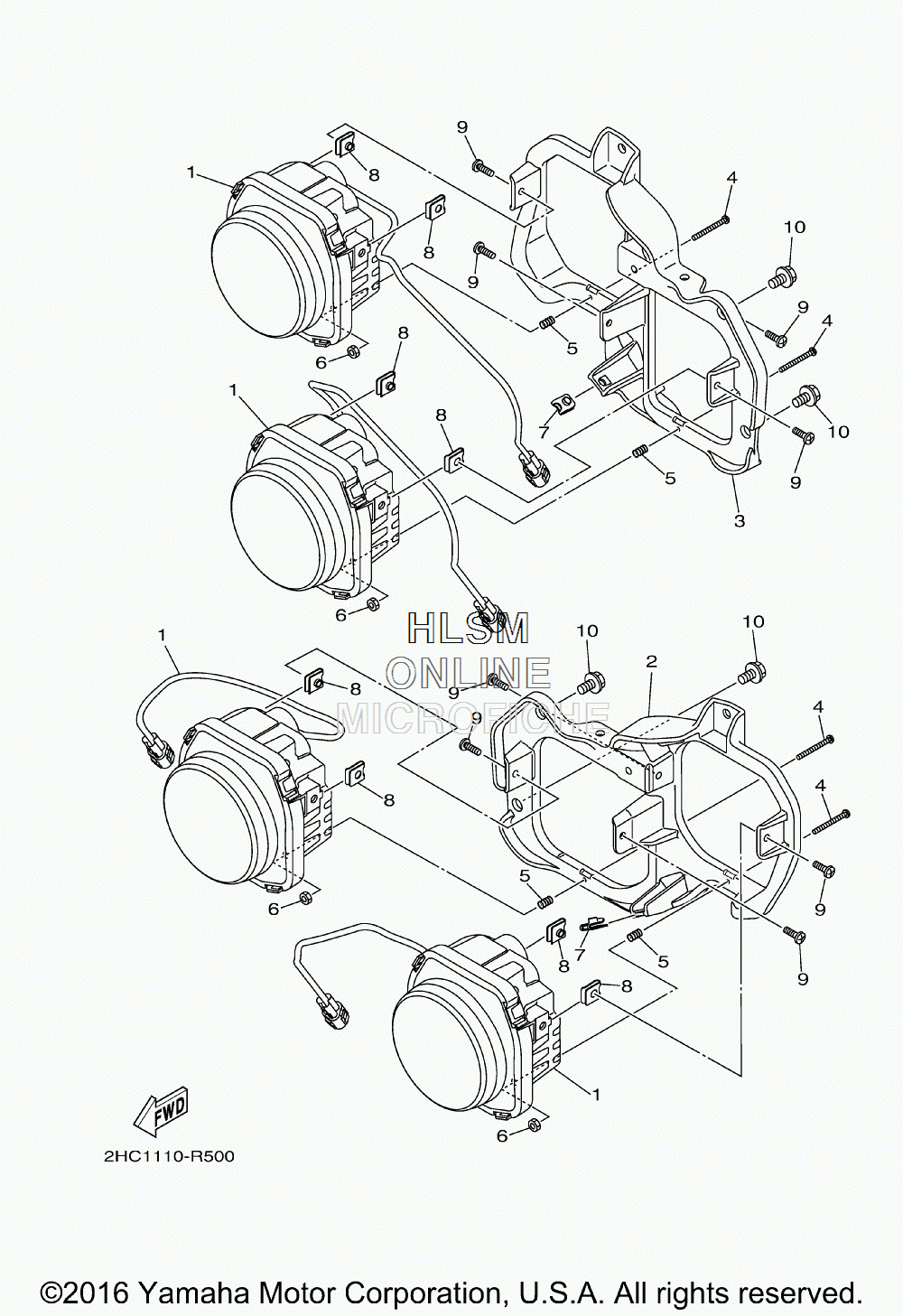

HEADLIGHT для Yamaha YXZ1000R EPS SS SPECIAL EDITION (TACTICAL BLACK) - 2017 года выпуска
-
№АртикулНазвание
-
12UD-84300-00-00 HEADLIGHT ASSYHEADLIGHT ASSY
-
22HC-F831V-00-00 STAY, HEAD LIGHT 1STAY, HEAD LIGHT 1
-
32HC-F832V-00-00 STAY, HEAD LIGHT 2STAY, HEAD LIGHT 2
-
498502-03530-00 SCREW, PAN HEADSCREW, PAN HEAD
-
590501-08614-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
62GU-84334-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
790183-060A6-00 NUT, SPRINGNUT, SPRING
-
890183-05008-00 NUT, SPRINGNUT, SPRING
-
998902-05016-00 SCREW, BINDSCREW, BIND
-
1095812-08016-00 BOLT, FLANGEBOLT, FLANGE
