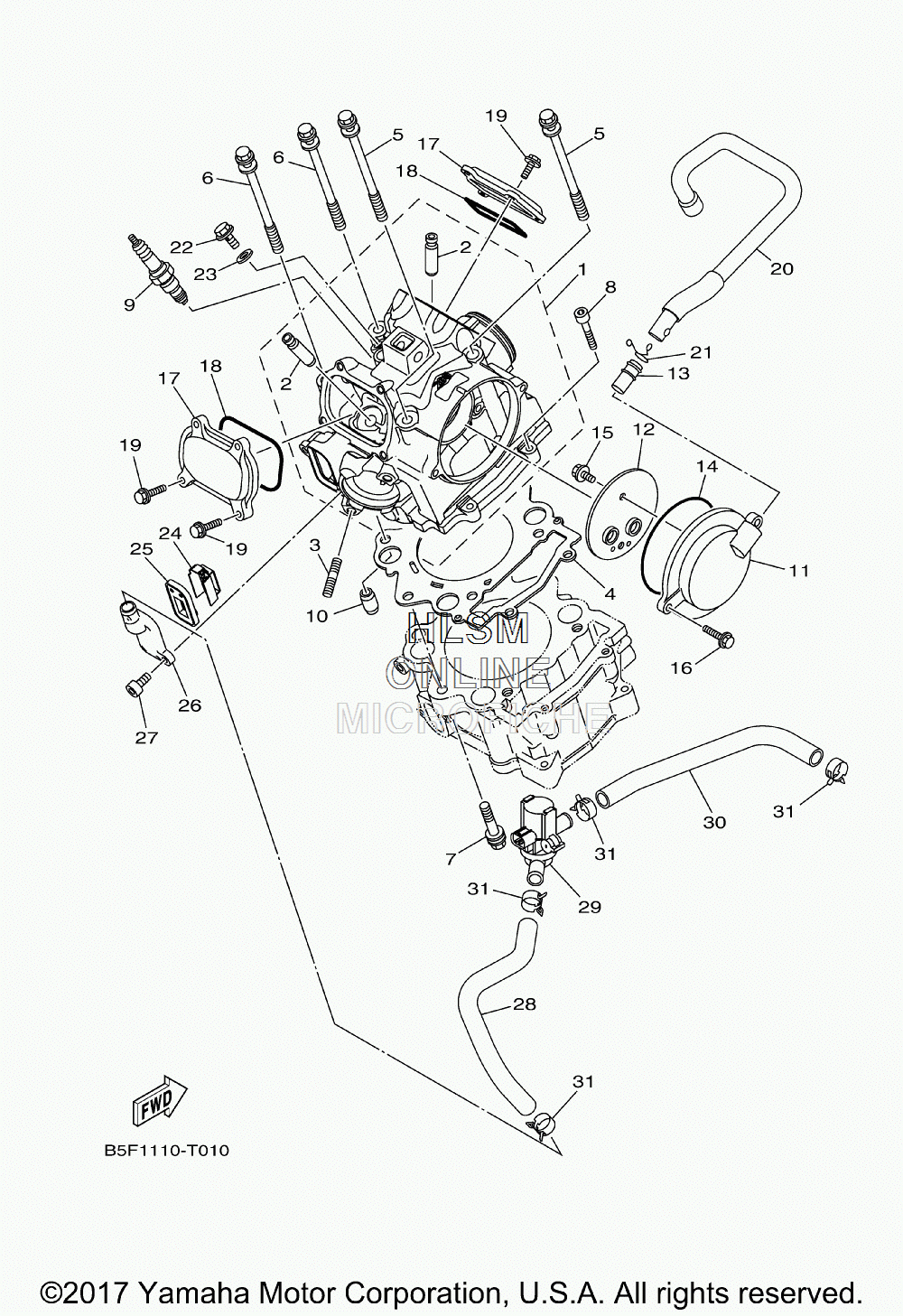

CYLINDER HEAD для Yamaha VIKING VI EPS RANCH EDITION - 2018 года выпуска
-
№АртикулНазвание
-
12BG-11102-00-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
24G0-11133-11-00 ...GUIDE, VALVE 1...GUIDE, VALVE 1
-
395612-08625-00 BOLT, STUDBOLT, STUD
-
43B4-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
590109-09003-00 BOLTBOLT
-
690109-09002-00 BOLTBOLT
-
790109-09005-00 BOLTBOLT
-
891312-06030-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
9CPR-7EA90-00-00 PLUG, SPARK (NGK CPR7EA)PLUG, SPARK (NGK CPR7EA)
-
1093612-16254-00 PIN, DOWELPIN, DOWEL
-
113B4-11185-00-00 COVER, CYLINDER HEAD SIDE 3COVER, CYLINDER HEAD SIDE 3
-
123B4-11165-10-00 PLATE, BREATHERPLATE, BREATHER
-
13371-11167-01-00 PIPE, BREATHER 2PIPE, BREATHER 2
-
1493210-96601-00 O-RINGO-RING
-
1595022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
1695022-06020-00 BOLT, FLANGEBOLT, FLANGE
-
171S3-11186-00-00 COVER, CYLINDER HEAD SIDE 2COVER, CYLINDER HEAD SIDE 2
-
1893210-78544-00 O-RINGO-RING
-
1995022-06020-00 BOLT, FLANGEBOLT, FLANGE
-
201XD-E1166-10-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
2190467-140A4-00 CLIPCLIP
-
2290401-08004-00 BOLT, UNIONBOLT, UNION
-
2390430-08119-00 GASKETGASKET
-
242BG-1482K-00-00 PLATEPLATE
-
255JW-14890-00-00 REED VALVE ASSYREED VALVE ASSY
-
265JW-14889-00-00 CAP, CASECAP, CASE
-
2790110-06175-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
281XD-E4881-00-00 HOSE, BEND 1HOSE, BEND 1
-
292BG-14840-00-00 AIR CUT VALVE ASSYAIR CUT VALVE ASSY
-
301XD-E4882-00-00 HOSE, BEND 2HOSE, BEND 2
-
3190467-17089-00 CLIPCLIP
Все узлы модели:
- AIR CLEANER W/ INTAKE
- BRAKE - BRAKE SYSTEM
- BRAKE - FRONT CALIPER
- BRAKE - MASTER CYLINDER
- BRAKE - REAR CALIPER
- CAMSHAFT W/ CHAIN
- CARRIER
- CLUTCH
- CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT - PISTON
- CYLINDER
- • CYLINDER HEAD
- DECALS
- DIFFERENTIAL - FRONT
- DIFFERENTIAL - REAR W/ DRIVE SHAFT
- ELECTRICAL
- ELECTRICAL 2
- EXHAUST
- FENDER - FRONT
- FENDERS - FRONT AND REAR
- FOOTREST - REAR
- FOOTREST W/ BRAKE PEDAL
- FRAME
- FUEL TANK
- GENERATOR
- GUARD - ROOF
- GUARDS (OPTIONAL)
- HEADLIGHT
- INSTRUMENT PANEL
- MIDDLE DRIVE GEAR
- MIRROR (OPTIONAL)
- MODEL INFO - MANUALS
- OIL PUMP
- PARKING BRAKE ASSY
- RACK AND BUMPER
- RADIATOR ASSY
- SEAT
- SEAT 2
- SEAT 3
- SEAT 4
- SHIFT CAM W/ FORK
- SHIFT SHAFT
- SIDE COVER
- SIDE COVER 2
- SIDE COVER 3
- SIDE COVER 4
- STARTER CLUTCH
- STARTING MOTOR
- STEERING
- SUN ROOF
- SUSPENSION - FRONT WHEEL
- SUSPENSION - REAR ARM
- SUSPENSION - REAR SHOCK ABSORBER
- TAILLIGHT
- THROTTLE BODY ASSY.
- TRANSMISSION
- VALVE ASSY
- WATER PUMP ASSY
- WHEEL - FRONT LEFT SIDE W/ AXLE ASSY
- WHEEL - FRONT RIGHT SIDE W/ AXLE ASSY
- WHEEL - REAR LEFT SIDE W/ AXLE ASSY
- WHEEL - REAR RIGHT SIDE W/ AXLE ASSY
