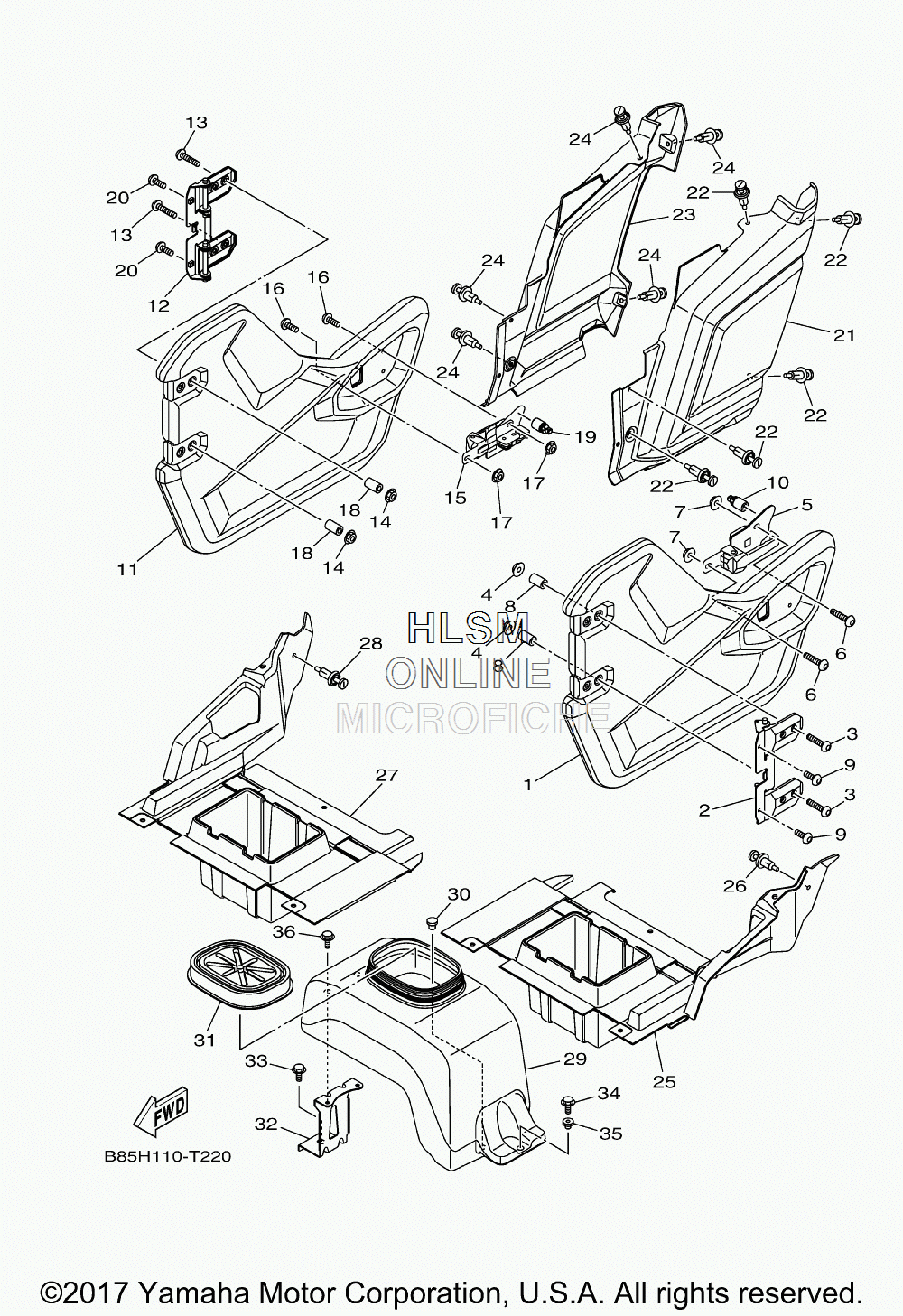

SIDE COVER для Yamaha VIKING VI EPS RANCH EDITION - 2018 года выпуска
-
№АртикулНазвание
-
11XD-K8557-11-00 PNL., DOOR FR. LHPNL., DOOR FR. LH
-
21XD-F4772-10-00 HINGE ASSYHINGE ASSY
-
390109-06897-00 BOLTBOLT
-
495602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
52MB-K7171-00-00 BODY, LATCH 1BODY, LATCH 1
-
690111-06086-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
795602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
890387-06304-00 COLLARCOLLAR
-
95B4-F1722-00-00 BOLT 2BOLT 2
-
102MB-F8378-00-00 PADPAD
-
111XD-K8557-11-00 PNL., DOOR FR. LHPNL., DOOR FR. LH
-
121XD-F4772-10-00 HINGE ASSYHINGE ASSY
-
1390109-06897-00 BOLTBOLT
-
1495602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
152MB-K7172-00-00 BODY, LATCH 2BODY, LATCH 2
-
1690111-06086-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
1795602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1890387-06304-00 COLLARCOLLAR
-
192MB-F8378-00-00 PADPAD
-
205B4-F1722-00-00 BOLT 2BOLT 2
-
212PG-F171E-00-00 COVER, SIDE 5COVER, SIDE 5
-
2290269-07805-00 RIVETRIVET
-
232PG-F171X-00-00 COVER, SIDE 6COVER, SIDE 6
-
2490269-07805-00 RIVETRIVET
-
252PG-F84A6-00-00 PLATE, UNDER 4PLATE, UNDER 4
-
2690269-07805-00 RIVETRIVET
-
272PG-F84A7-00-00 PLATE, UNDER 5PLATE, UNDER 5
-
2890269-07805-00 RIVETRIVET
-
292PG-F8271-01-00 CASECASE
-
3090605-502U1-00 PLUG, BLINDPLUG, BLIND
-
311HP-F160F-00-00 LIDLID
-
322PG-F253E-00-00 BRKT., FR. STORAGEBRKT., FR. STORAGE
-
3390105-06831-00 BOLT, FLANGEBOLT, FLANGE
-
3490105-06833-00 BOLT, FLANGEBOLT, FLANGE
-
3590387-071E0-00 COLLARCOLLAR
-
3690109-06202-00 BOLTBOLT
