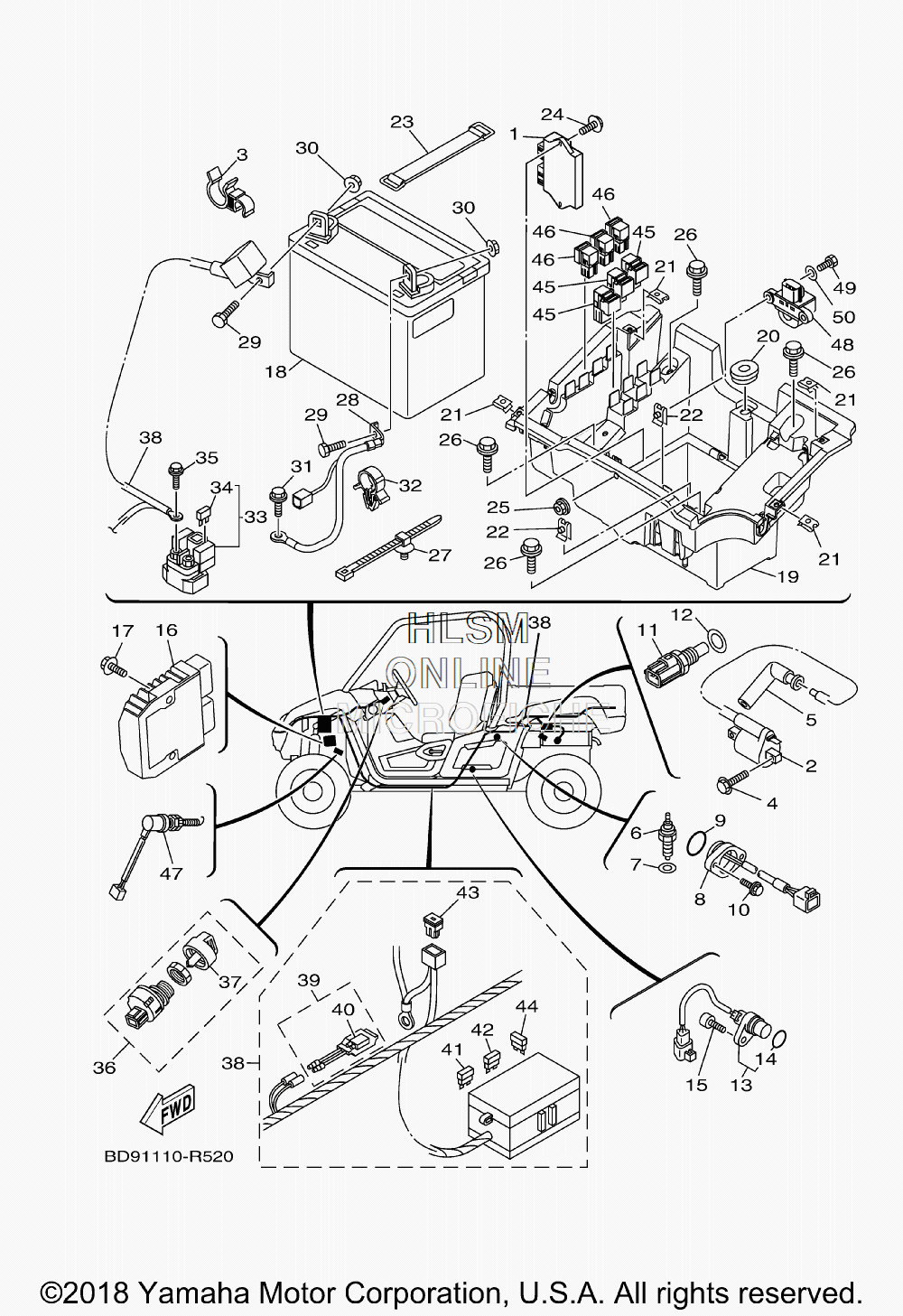

ELECTRICAL для Yamaha VIKING - 2019 года выпуска
-
№АртикулНазвание
-
1B42-8591A-20-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
25YU-82310-10-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
390464-18016-00 CLAMPCLAMP
-
497002-06016-00 BOLT, HEXAGONBOLT, HEXAGON
-
55B4-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
63GB-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
790430-10148-00 GASKETGASKET
-
81XD-82540-00-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
993210-29196-00 O-RINGO-RING
-
1090119-06137-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
115YP-85790-00-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
1290430-12202-00 GASKETGASKET
-
133B4-83755-00-00 SENSOR, SPEEDSENSOR, SPEED
-
144D9-81168-00-00 ...O-RING...O-RING
-
1591312-06020-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
161D7-81960-01-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
1790105-06833-00 BOLT, FLANGEBOLT, FLANGE
-
185UG-H2100-00-00 BATTERY ASSY (GS U1L-11)BATTERY ASSY (GS U1L-11)
-
191XD-H212B-00-00 BOX, BATTERY 1BOX, BATTERY 1
-
2090480-01558-00 GROMMETGROMMET
-
2190183-060A6-00 NUT, SPRINGNUT, SPRING
-
2290183-05008-00 NUT, SPRINGNUT, SPRING
-
233L8-82131-01-00 BAND, BATTERYBAND, BATTERY
-
2495812-06020-00 BOLT, FLANGEBOLT, FLANGE
-
2595702-06500-00 NUT, FLANGENUT, FLANGE
-
2690119-06868-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
271NS-F1338-00-00 CLAMPCLAMP
-
281XD-H2116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
2997080-08020-00 BOLTBOLT
-
3090179-08015-00 NUTNUT
-
3195812-06014-00 BOLT, FLANGEBOLT, FLANGE
-
3290464-15157-00 CLAMPCLAMP
-
335B4-81940-00-00 STARTER RELAY ASSY (RC19-080A)STARTER RELAY ASSY (RC19-080A)
-
3442X-82151-00-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
3595022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
365UG-H2510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
375UG-H2579-00-00 ...CAP, KEY...CAP, KEY
-
38BD9-82590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
395B4-82180-00-00 ...CIRCUIT BREAKER ASSY...CIRCUIT BREAKER ASSY
-
405B4-82560-00-00 ......THERMO SWITCH ASSY......THERMO SWITCH ASSY
-
415JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
425JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
435PS-82151-00-00 ...FUSE (40A)...FUSE (40A)
-
445JJ-82151-70-00 ...FUSE (25A-BL)...FUSE (25A-BL)
-
455DM-81950-00-00 RELAY ASSY (G8HN-1C4T-DJ-Y52)RELAY ASSY (G8HN-1C4T-DJ-Y52)
-
468DM-81950-11-00 RELAY ASSY (8DM-11)RELAY ASSY (8DM-11)
-
474KB-82530-10-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
483B4-82576-10-00 SENSOR, LEAN ANGLESENSOR, LEAN ANGLE
-
4997002-05016-00 BOLTBOLT
-
5092902-05600-00 WASHER, PLATEWASHER, PLATE
