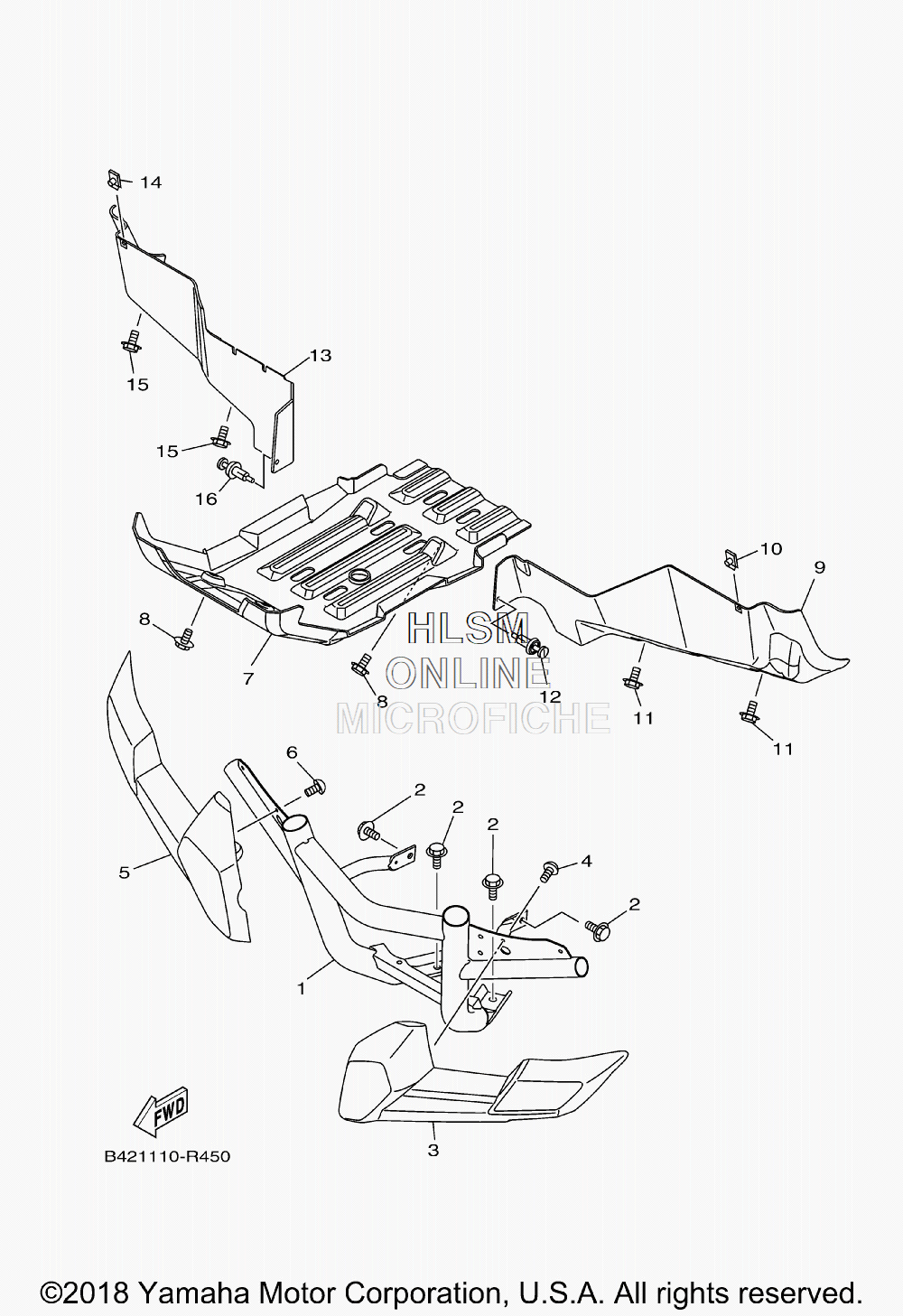

GUARD для Yamaha VIKING - 2019 года выпуска
-
№АртикулНазвание
-
11XD-F845N-01-00 BAR, CARRY FRONTBAR, CARRY FRONT
-
295812-10016-00 BOLT, FLANGEBOLT, FLANGE
-
31XD-F842M-01-00 COVER 1COVER 1
-
490167-06800-00 SCREW, TAPPINGSCREW, TAPPING
-
51XD-F842N-01-00 COVER 2COVER 2
-
690167-06800-00 SCREW, TAPPINGSCREW, TAPPING
-
71XD-F8385-01-00 COVER, UNDERCOVER, UNDER
-
890109-06202-00 BOLTBOLT
-
91XD-F2361-00-00 GUARD 1GUARD 1
-
1090183-060A6-00 NUT, SPRINGNUT, SPRING
-
1190109-06202-00 BOLTBOLT
-
1290269-06800-00 RIVETRIVET
-
131XD-F2362-00-00 GUARD 2GUARD 2
-
1490183-060A6-00 NUT, SPRINGNUT, SPRING
-
1590109-06202-00 BOLTBOLT
-
1690269-06800-00 RIVETRIVET
