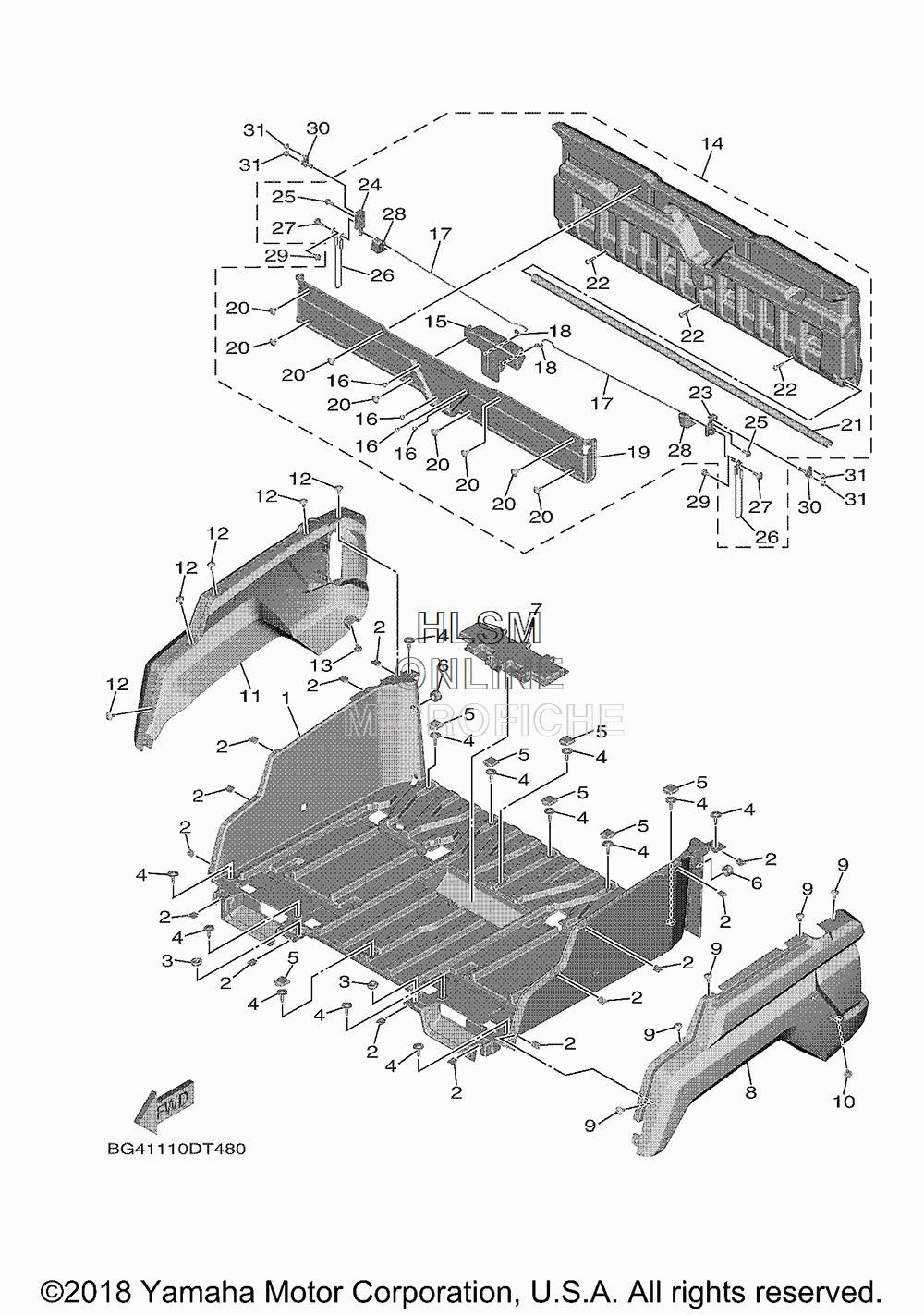

CARRIER для Yamaha WOLVERINE X4 HUNTER - 2019 года выпуска
-
№АртикулНазвание
-
1BG4-F1171-00-00 BOXBOX
-
290183-060A6-00 NUT, SPRINGNUT, SPRING
-
390480-01558-00 GROMMETGROMMET
-
490109-068A5-00 BOLTBOLT
-
52MB-F143A-00-00 CAPCAP
-
64XE-F4747-00-00 DAMPER, SEATDAMPER, SEAT
-
7BG4-F471S-00-00 BELT, BODY HOLDERBELT, BODY HOLDER
-
8BG4-K8193-40-00 PANEL, REAR FENDER 3PANEL, REAR FENDER 3
-
990110-06090-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1090109-06202-00 BOLTBOLT
-
11BG4-K8194-40-00 PANEL, REAR FENDER 4PANEL, REAR FENDER 4
-
1290110-06090-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1390109-06202-00 BOLTBOLT
-
14BG4-K810N-00-00 REAR STORAGE LID COMP.REAR STORAGE LID COMP.
-
15BG4-F389F-01-00 ...HANDLE, LATCH...HANDLE, LATCH
-
1690111-06838-00 ...BOLT, HEX. SOCKET BUTTON...BOLT, HEX. SOCKET BUTTON
-
17BG4-F8478-00-00 ...ROD...ROD
-
18BG4-F2805-00-00 ...CLIP, CABLE...CLIP, CABLE
-
19BG4-F331G-00-00 ...COVER...COVER
-
2090110-06102-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
211XD-F463F-00-00 ...HINGE 2...HINGE 2
-
2290149-06846-00 ...SCREW...SCREW
-
23BG4-F16A0-00-00 ...LOCK ASSY...LOCK ASSY
-
24BG4-F16B0-00-00 ...LOCK ASSY 2...LOCK ASSY 2
-
2595812-06016-00 ...BOLT, FLANGE...BOLT, FLANGE
-
265UG-K7195-10-00 ...HOLDER, CABLE...HOLDER, CABLE
-
2790109-06171-00 ...BOLT...BOLT
-
28BG4-F8416-10-00 ...DAMPER 2...DAMPER 2
-
2990109-06202-00 BOLTBOLT
-
30BG4-F4441-00-00 BOLT, STUDBOLT, STUD
-
3195602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
