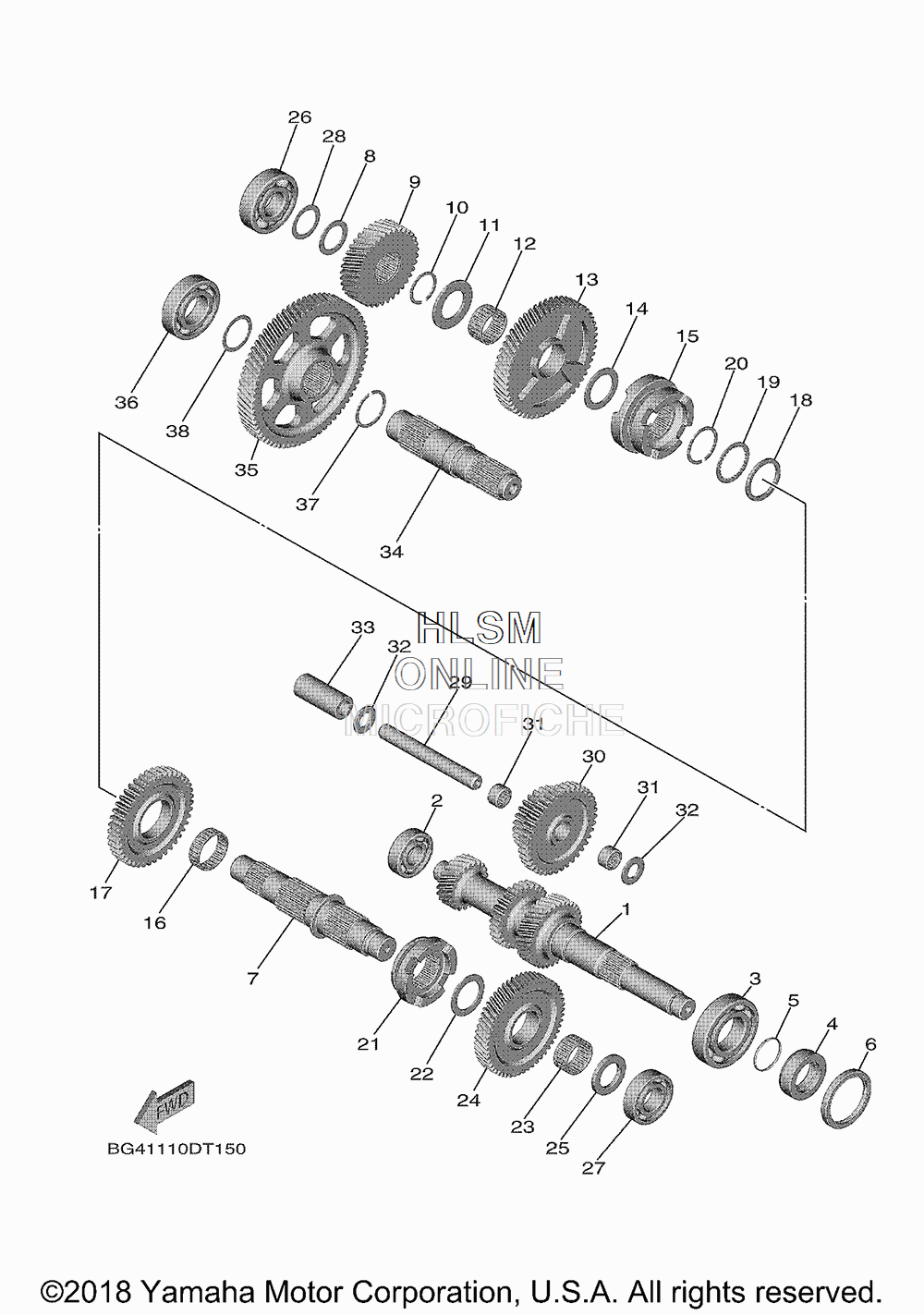

TRANSMISSION для Yamaha WOLVERINE X4 HUNTER - 2019 года выпуска
-
№АртикулНазвание
-
1BG4-17681-10-00 SHAFT, SECONDARYSHAFT, SECONDARY
-
293306-20434-00 BEARINGBEARING
-
393306-20714-00 BEARINGBEARING
-
490387-32007-00 COLLARCOLLAR
-
593210-32MF3-00 O-RINGO-RING
-
693102-48009-00 OIL SEALOIL SEAL
-
7BG4-17421-00-00 AXLE, DRIVEAXLE, DRIVE
-
890201-25017-00 WASHER, PLATEWASHER, PLATE
-
9BG4-17582-00-00 GEAR, MIDDLE DRIVE (36T)GEAR, MIDDLE DRIVE (36T)
-
1093440-30077-00 CIRCLIPCIRCLIP
-
1190201-301F4-00 WASHER, PLATEWASHER, PLATE
-
1293310-33085-00 BEARINGBEARING
-
13BG4-17233-00-00 GEAR, LOW WHEEL (53T)GEAR, LOW WHEEL (53T)
-
1490201-30666-00 WASHER, PLATEWASHER, PLATE
-
15BG4-17286-00-00 HOLDERHOLDER
-
1693310-33596-00 BEARINGBEARING
-
17BG4-17253-00-00 GEAR, REVERSE WHEEL 2 (42T)GEAR, REVERSE WHEEL 2 (42T)
-
1890201-35015-00 WASHER, PLATEWASHER, PLATE
-
1990209-33008-00 WASHERWASHER
-
2093440-34025-00 CIRCLIPCIRCLIP
-
21BG4-17285-00-00 CLUTCH, DOGCLUTCH, DOG
-
2290201-30666-00 WASHER, PLATEWASHER, PLATE
-
2393310-33085-00 BEARINGBEARING
-
24BG4-17223-10-00 GEAR, HIGH WHEEL (53T)GEAR, HIGH WHEEL (53T)
-
2590387-25036-00 COLLARCOLLAR
-
2693306-30523-00 BEARINGBEARING
-
2793306-20583-00 BEARINGBEARING
-
283B4-46119-00-00 SHIM, THRUST (0.25T) (OPT)SHIM, THRUST (0.25T) (OPT)
-
283B4-46119-10-00 SHIM, THRUST (0.30T) (OPT)SHIM, THRUST (0.30T) (OPT)
-
283B4-46119-20-00 SHIM, THRUST (0.35T) (OPT)SHIM, THRUST (0.35T) (OPT)
-
283B4-46119-30-00 SHIM, THRUST (0.40T) (OPT)SHIM, THRUST (0.40T) (OPT)
-
283B4-46119-40-00 SHIM, THRUST (0.45T) (OPT)SHIM, THRUST (0.45T) (OPT)
-
283B4-46119-50-00 SHIM, THRUST (0.50T) (OPT)SHIM, THRUST (0.50T) (OPT)
-
283B4-46119-60-00 SHIM, THRUST (0.80T) (OPT)SHIM, THRUST (0.80T) (OPT)
-
283B4-46119-70-00 SHIM, THRUST (1.00T) (OPT)SHIM, THRUST (1.00T) (OPT)
-
29BG4-17432-00-00 AXLE, IDLEAXLE, IDLE
-
30BG4-17243-00-00 GEAR, REVERSE WHEEL 1(39T/26T)GEAR, REVERSE WHEEL 1(39T/26T)
-
3193315-21570-00 BEARINGBEARING
-
3290201-15029-00 WASHER, PLATEWASHER, PLATE
-
3390387-15020-00 COLLARCOLLAR
-
34BG4-17523-00-00 SHAFTSHAFT
-
35BG4-17583-00-00 GEAR, MIDDLE DRIVEN (69T)GEAR, MIDDLE DRIVEN (69T)
-
3693306-20607-00 BEARINGBEARING
-
3793440-34025-00 CIRCLIPCIRCLIP
-
3852G-17531-21-00 SHIM, PINION (0.2T) (OPT)SHIM, PINION (0.2T) (OPT)
-
3852G-17531-61-00 SHIM, PINION (0.25T) (OPT)SHIM, PINION (0.25T) (OPT)
-
3852G-17531-31-00 SHIM, PINION (0.3T) (OPT)SHIM, PINION (0.3T) (OPT)
-
3852G-17531-71-00 SHIM, PINION (0.35T) (OPT)SHIM, PINION (0.35T) (OPT)
-
3852G-17531-41-00 SHIM, PINION (0.4T) (OPT)SHIM, PINION (0.4T) (OPT)
-
3852G-17531-81-00 SHIM, PINION (0.45T) (OPT)SHIM, PINION (0.45T) (OPT)
-
3852G-17531-51-00 SHIM, PINION (0.5T) (OPT)SHIM, PINION (0.5T) (OPT)
-
3852G-17531-91-00 SHIM, PINION (0.80T) (OPT)SHIM, PINION (0.80T) (OPT)
