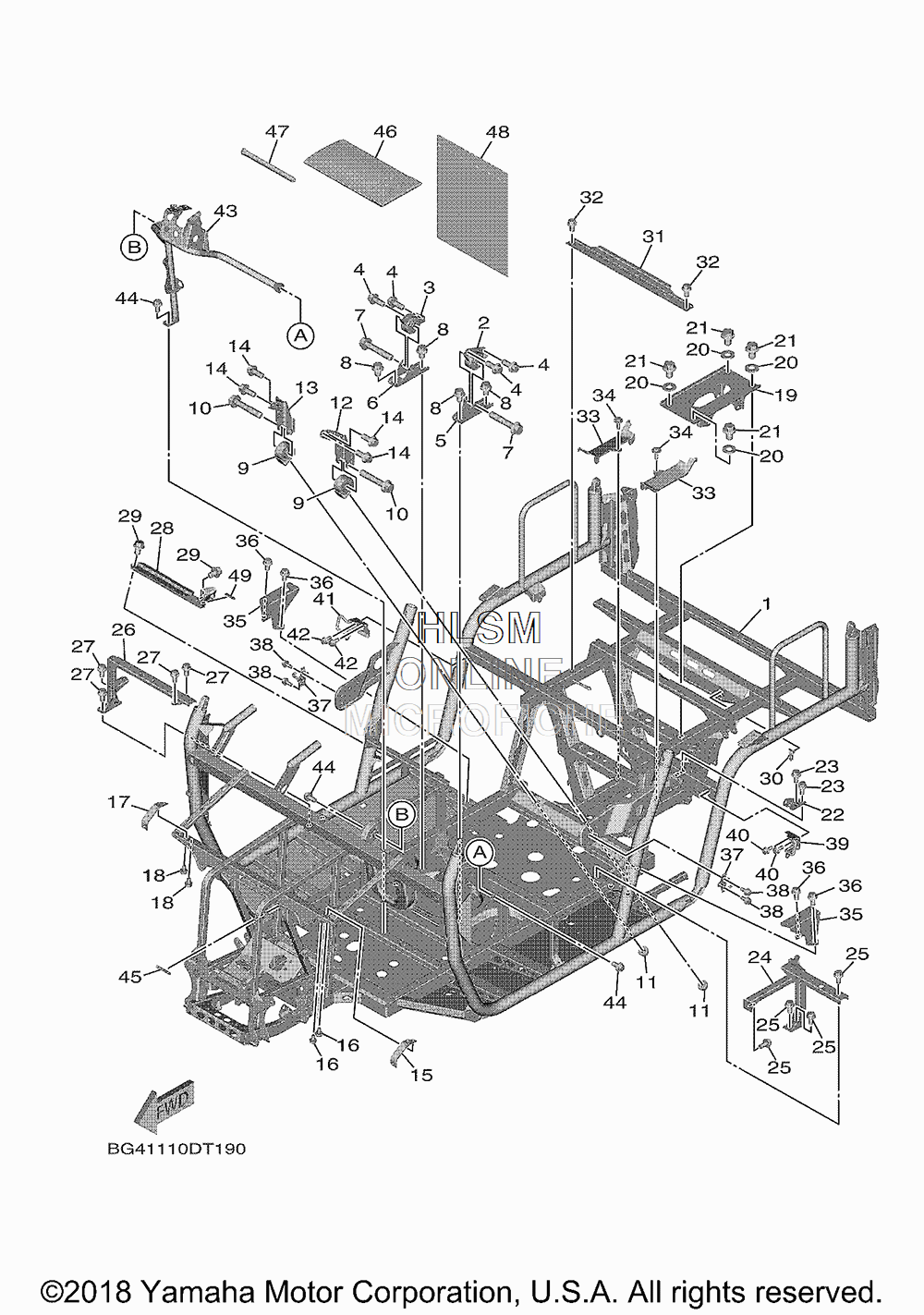

FRAME для Yamaha WOLVERINE X4 SPECIAL EDITION (PURPLISH BLUE) - 2019 года выпуска
-
№АртикулНазвание
-
1BG4-F1110-00-00 FRAME COMP.FRAME COMP.
-
2BG4-21410-00-00 ENGINE BRACKET COMP.ENGINE BRACKET COMP.
-
3BG4-21420-00-00 ENGINE BRACKET COMP. 2ENGINE BRACKET COMP. 2
-
495812-10025-00 BOLT, FLANGEBOLT, FLANGE
-
5BG4-F161F-00-00 BRACKET 5BRACKET 5
-
6BG4-F161A-00-00 BRACKET 3BRACKET 3
-
795812-12065-00 BOLT, FLANGEBOLT, FLANGE
-
895812-10016-00 BOLT, FLANGEBOLT, FLANGE
-
9BG4-21490-00-00 BRACKET, ENGINE 1BRACKET, ENGINE 1
-
1095812-12065-00 BOLT, FLANGEBOLT, FLANGE
-
1190185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
12BG4-F1283-00-00 SUPPORT, ENGINESUPPORT, ENGINE
-
13BG4-F1284-00-00 SUPT., ENGINE 2SUPT., ENGINE 2
-
1495812-10025-00 BOLT, FLANGEBOLT, FLANGE
-
15BG4-F172K-00-00 BRACKET 1BRACKET 1
-
1695812-06010-00 BOLT, FLANGEBOLT, FLANGE
-
17BG4-F172K-00-00 BRACKET 1BRACKET 1
-
1895812-06010-00 BOLT, FLANGEBOLT, FLANGE
-
19BG4-F831T-00-00 STAY, SUPPORT 1STAY, SUPPORT 1
-
2090201-12039-00 WASHER, PLATEWASHER, PLATE
-
2195812-12020-00 BOLT, FLANGEBOLT, FLANGE
-
22BG4-F1981-00-00 BRKT., REAR AXLEBRKT., REAR AXLE
-
2395812-08016-00 BOLT, FLANGEBOLT, FLANGE
-
24BG4-F1143-01-00 LUG, SEAT RAIL (LEFT HAND)LUG, SEAT RAIL (LEFT HAND)
-
2590105-08867-00 BOLT, FLANGEBOLT, FLANGE
-
26BG4-F255G-01-00 MEMBER, SEAT SUPPORTMEMBER, SEAT SUPPORT
-
2790105-08867-00 BOLT, FLANGEBOLT, FLANGE
-
28BG4-F287M-00-00 BRACKET, LOCK 2BRACKET, LOCK 2
-
2995812-10020-00 BOLT, FLANGEBOLT, FLANGE
-
30BG4-F1446-00-00 STAY, MUFFLER 2STAY, MUFFLER 2
-
31BG4-F834V-00-00 PROTECTOR 1PROTECTOR 1
-
3290105-08867-00 BOLT, FLANGEBOLT, FLANGE
-
332MB-F198J-00-00 COVER 3COVER 3
-
3490119-06868-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
35BG4-F144H-00-00 BRACKET, FOOTREST 3BRACKET, FOOTREST 3
-
3690105-08867-00 BOLT, FLANGEBOLT, FLANGE
-
37BG4-F1331-00-00 HOOK, SIDE COVER 1HOOK, SIDE COVER 1
-
3895812-06014-00 BOLT, FLANGEBOLT, FLANGE
-
39BG4-F1333-00-00 HOOK, SIDE COVER 3HOOK, SIDE COVER 3
-
4095812-06014-00 BOLT, FLANGEBOLT, FLANGE
-
41BG4-F1334-00-00 HOOK, SIDE COVER 4HOOK, SIDE COVER 4
-
4295812-06014-00 BOLT, FLANGEBOLT, FLANGE
-
43BG4-F1986-01-00 REINFORCEMENT, FRAME 1REINFORCEMENT, FRAME 1
-
4490105-08867-00 BOLT, FLANGEBOLT, FLANGE
-
4531A-24188-01-00 MOLD, FUEL TANKMOLD, FUEL TANK
-
46BG4-F8100-00-00 TOOL KITTOOL KIT
-
471XD-F811A-00-00 GAUGE, AIRGAUGE, AIR
-
481P0-F8186-01-00 POUCHPOUCH
-
493VD-24188-00-00 MOLD, FUEL TANKMOLD, FUEL TANK
