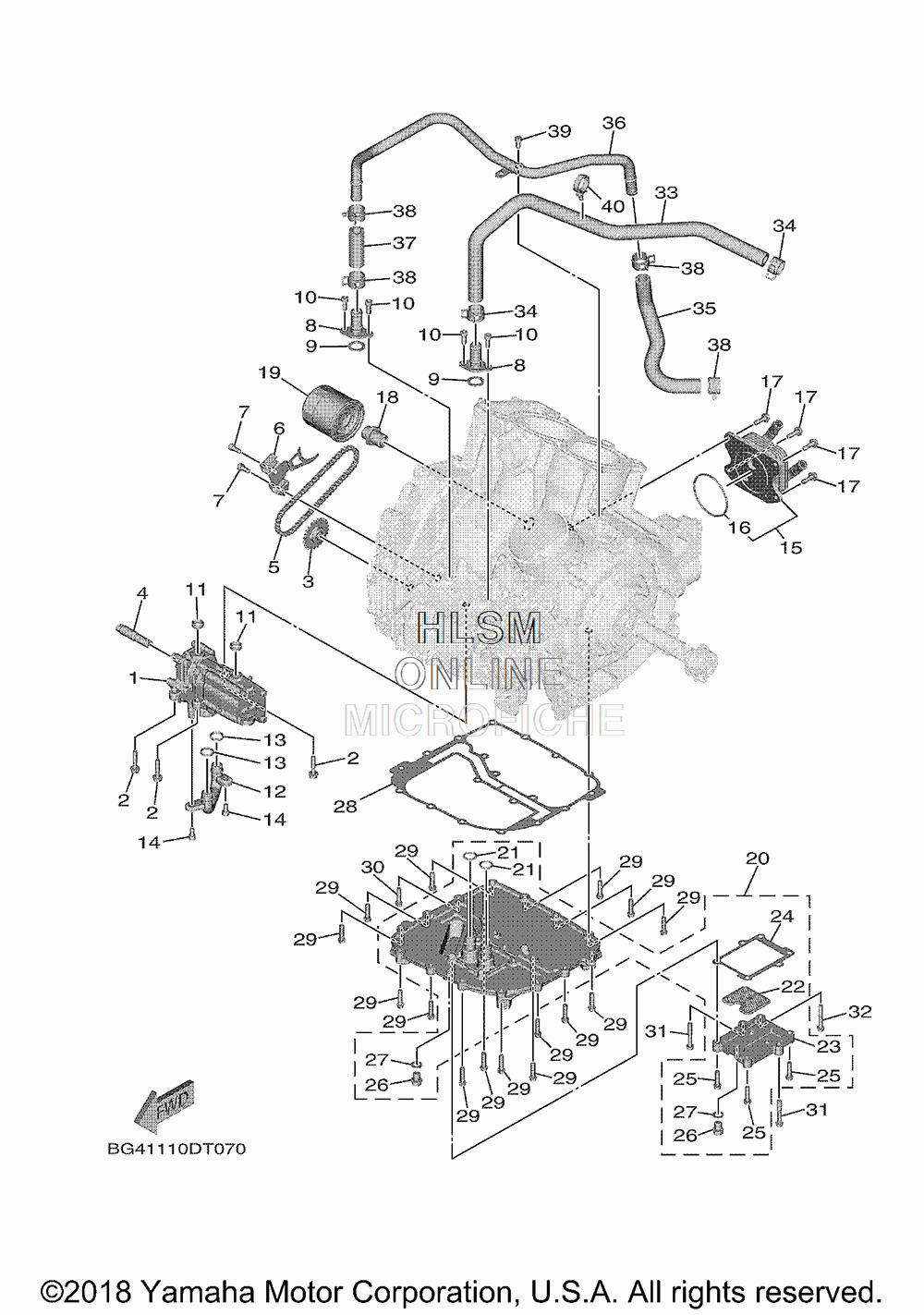

OIL PUMP для Yamaha WOLVERINE X4 SPECIAL EDITION (PURPLISH BLUE) - 2019 года выпуска
-
№АртикулНазвание
-
1BG4-13300-00-00 OIL PUMP ASSYOIL PUMP ASSY
-
295812-06030-00 BOLT, FLANGEBOLT, FLANGE
-
3BG4-13355-00-00 SPROCKET, DRIVENSPROCKET, DRIVEN
-
4BG4-13344-00-00 SHAFT, DRIVEN GEARSHAFT, DRIVEN GEAR
-
594581-79062-00 CHAIN (DID25H-62LE)CHAIN (DID25H-62LE)
-
6BG4-13898-00-00 HOLDERHOLDER
-
790110-06168-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
8BG4-13115-00-00 CONNECTOR, SUCTION PIPECONNECTOR, SUCTION PIPE
-
993210-16629-00 O-RINGO-RING
-
1090110-06193-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
115GJ-13475-00-00 GASKETGASKET
-
12BG4-13418-00-00 PIPE, OIL 2PIPE, OIL 2
-
1393210-14003-00 O-RINGO-RING
-
1490110-06182-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
15BG4-13470-00-00 OIL COOLER ASSYOIL COOLER ASSY
-
162HC-13473-00-00 ...O-RING...O-RING
-
1790110-06164-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1890401-20008-00 BOLT, UNIONBOLT, UNION
-
195GH-13440-60-00 ELEMENT ASSY, OIL CLEANERELEMENT ASSY, OIL CLEANER
-
20BG4-13400-00-00 STRAINER COVER ASSYSTRAINER COVER ASSY
-
2193210-14003-00 ...O-RING...O-RING
-
22BG4-13411-00-00 ...STRAINER, OIL...STRAINER, OIL
-
23BG4-13881-00-00 ...COVER 1...COVER 1
-
24BG4-13475-00-00 ...GASKET...GASKET
-
2595022-06025-00 ...BOLT, FLANGE...BOLT, FLANGE
-
2690340-10003-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
2790430-10148-00 ...GASKET...GASKET
-
28BG4-13414-00-00 GASKET, STRAINER COVERGASKET, STRAINER COVER
-
2995022-06025-00 BOLT, FLANGEBOLT, FLANGE
-
3090105-06221-00 BOLT, FLANGEBOLT, FLANGE
-
3195022-06040-00 BOLT, FLANGEBOLT, FLANGE
-
3290105-06224-00 BOLT, FLANGEBOLT, FLANGE
-
33BG4-E316F-00-00 HOSE, OIL 1HOSE, OIL 1
-
3490467-22097-00 CLIPCLIP
-
35BG4-E316G-00-00 HOSE, OIL 2HOSE, OIL 2
-
36BG4-E3161-01-00 PIPE, DELIVERY 1PIPE, DELIVERY 1
-
372HC-E3464-00-00 HOSE, OIL 1HOSE, OIL 1
-
3890467-22097-00 CLIPCLIP
-
3991312-06012-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
4090464-24230-00 CLAMPCLAMP
