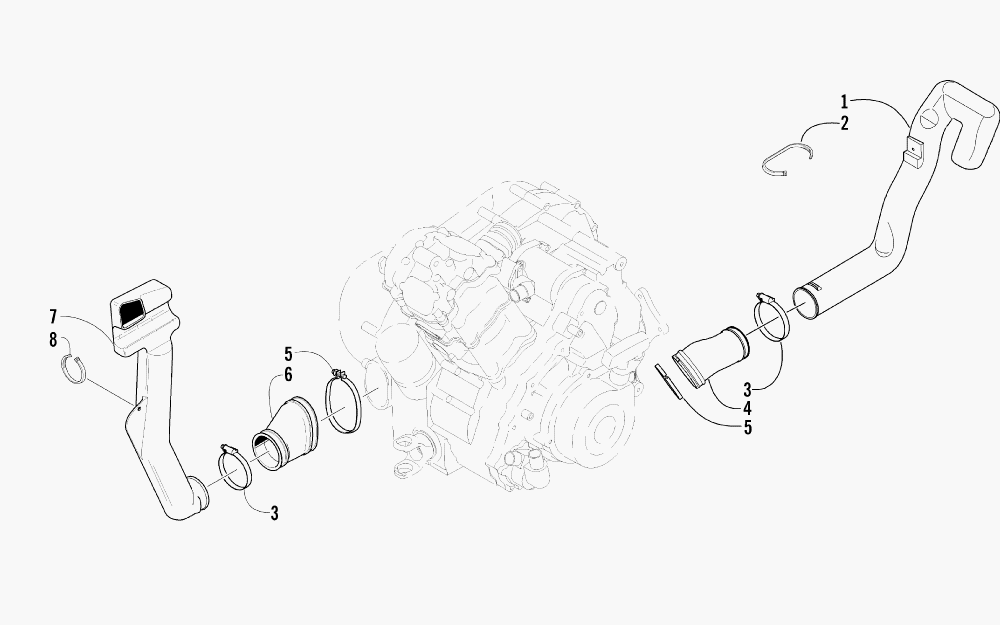

CASE/BELT COOLING ASSEMBLY для Arctic Cat 500 4X4 TBX [A2003BXM4BUSG] - 2003 года выпуска
-
№АртикулНазвание
-
10413-062 DUCT, BELT COOLING - REARDUCT, BELT COOLING - REAR
-
20123-903 CABLE TIE - 11.5 IN.CABLE TIE - 11.5 IN.
-
30423-380 CLAMP, DUCTCLAMP, DUCT
-
40413-055 BOOT, DUCT - REARBOOT, DUCT - REAR
-
53402-449 CLAMP, BOOTCLAMP, BOOT
-
60413-049 BOOT, DUCT - FRONTBOOT, DUCT - FRONT
-
70413-042 DUCT, BELT COOLING - FRONTDUCT, BELT COOLING - FRONT
-
80123-788 CABLE TIE - 7.5 IN.CABLE TIE - 7.5 IN.
