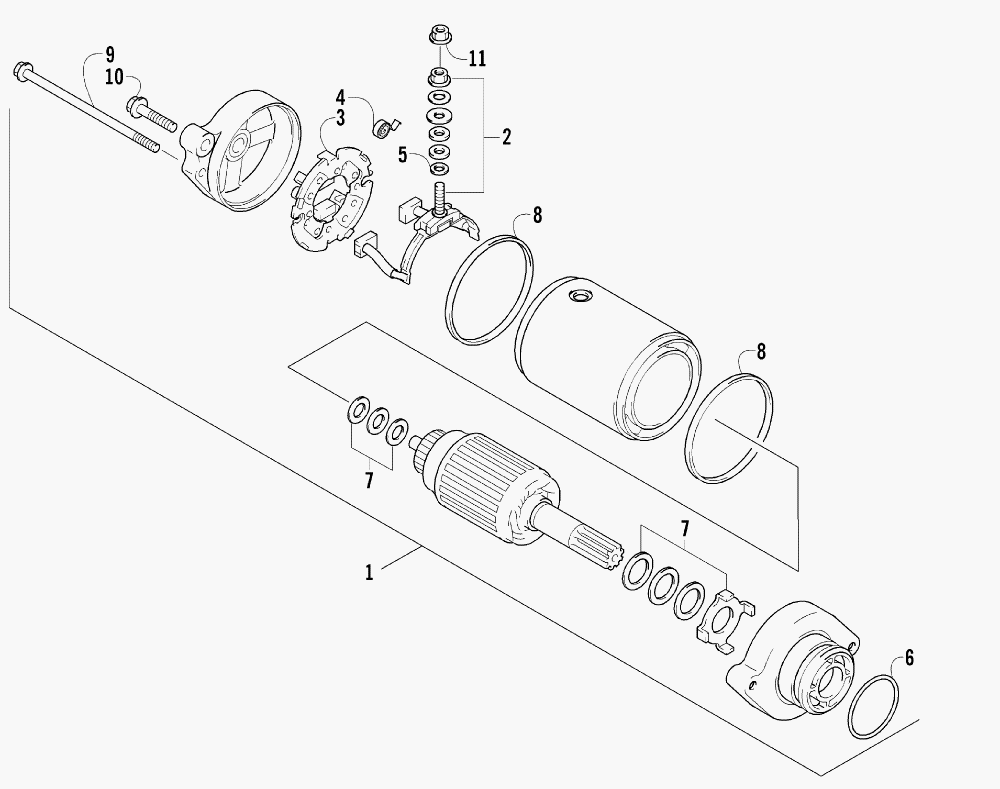

STARTER MOTOR ASSEMBLY для Arctic Cat 500 4X4 TBX [A2003BXM4BUSG] - 2003 года выпуска
-
№АртикулНазвание
-
13545-015 MOTOR, STARTER ASSEMBLY (INC. 2-9)MOTOR, STARTER ASSEMBLY (INC. 2-9)
-
23008-094 ...TERMINAL SET, BRUSH...TERMINAL SET, BRUSH
-
33008-095 ...HOLDER SET, BRUSH...HOLDER SET, BRUSH
-
43008-096 ...SPRING, BRUSH...SPRING, BRUSH
-
53008-164 ...O-RING...O-RING
-
63423-084 ...O-RING...O-RING
-
73436-001 ...WASHER SET...WASHER SET
-
83008-553 ...O-RING...O-RING
-
93423-085 ...THROUGH-BOLT...THROUGH-BOLT
-
103423-162 SCREW, CAPSCREW, CAP
-
113423-195 NUTNUT
