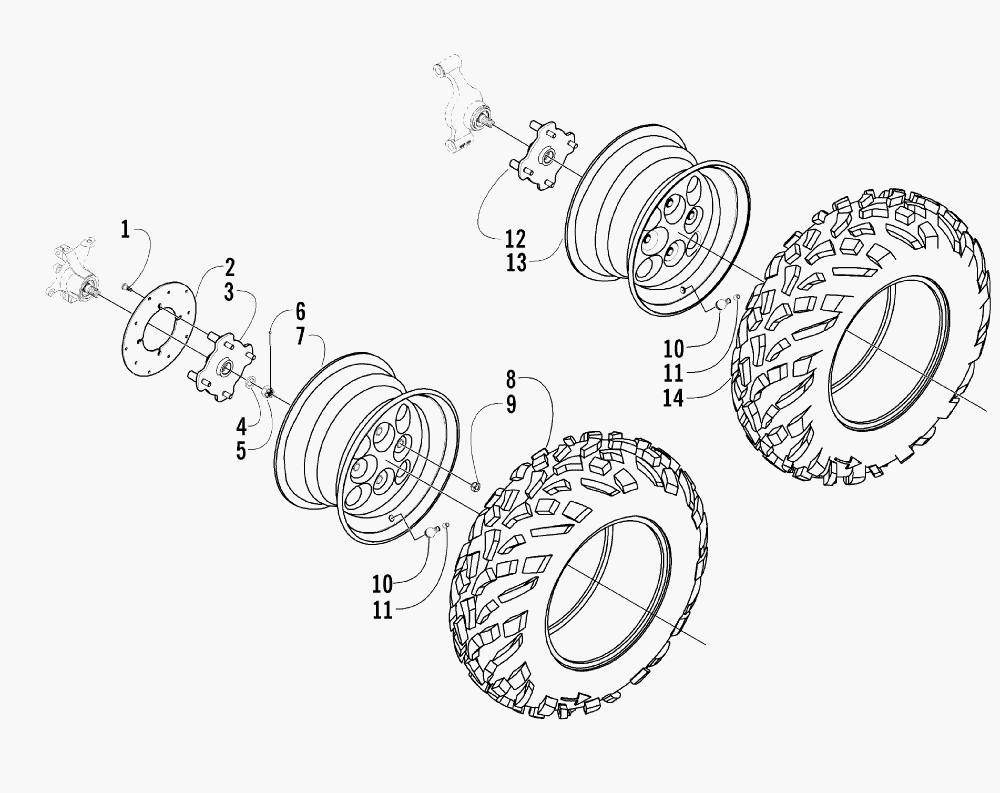

WHEEL AND TIRE ASSEMBLY для Arctic Cat 500 4X4 TBX [A2003BXM4BUSG] - 2003 года выпуска
-
№АртикулНазвание
-
10423-029 SCREW, MACHINESCREW, MACHINE
-
20402-874 DISC, BRAKEDISC, BRAKE
-
30502-360 HUB, WHEEL - FRONTHUB, WHEEL - FRONT
-
40402-181 SEAL, HUBSEAL, HUB
-
50423-394 NUT, CASTLENUT, CASTLE
-
60423-407 PIN, COTTERPIN, COTTER
-
70402-856 WHEEL - FRONTWHEEL - FRONT
-
80402-890 TIRE - FRONTTIRE - FRONT
-
90423-408 NUT, MOUNTING - WHEELNUT, MOUNTING - WHEEL
-
100402-064 STEM, VALVE (INC. 11)STEM, VALVE (INC. 11)
-
110402-140 ...CAP, VALVE STEM...CAP, VALVE STEM
-
120502-359 HUB, WHEEL - LEFTHUB, WHEEL - LEFT
-
120502-360 HUB, WHEEL - RIGHTHUB, WHEEL - RIGHT
-
130402-858 WHEEL - REARWHEEL - REAR
-
140402-926 TIRE - REARTIRE - REAR
