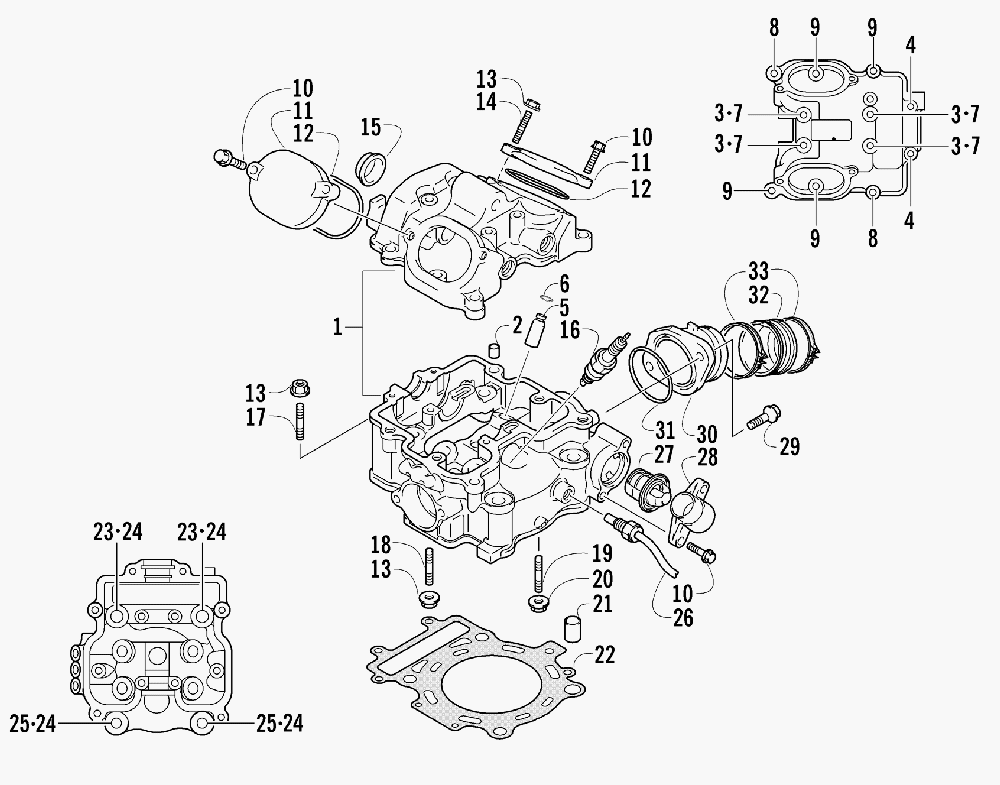

CYLINDER HEAD ASSEMBLY для Arctic Cat 500 4X4 FIS MRP MAN (RED) [A2004ISM4AUST] - 2004 года выпуска
-
№АртикулНазвание
-
13402-098 HEAD, CYLINDER - ASSEMBLY (INC. 2-6)HEAD, CYLINDER - ASSEMBLY (INC. 2-6)
-
23423-043 ...PIN, DOWEL...PIN, DOWEL
-
33423-006 ...BOLT...BOLT
-
43008-376 ...BOLT...BOLT
-
53402-099 ...GUIDE, VALVE...GUIDE, VALVE
-
63423-068 ...CIRCLIP...CIRCLIP
-
73003-290 WASHERWASHER
-
83423-007 BOLTBOLT
-
93004-376 BOLTBOLT
-
103004-341 BOLTBOLT
-
113402-100 CAP, INSPECTIONCAP, INSPECTION
-
123402-101 O-RINGO-RING
-
133004-488 NUTNUT
-
143423-383 BOLT, STUDBOLT, STUD
-
153402-035 PLUG, HEADPLUG, HEAD
-
160217-632 SPARK PLUG (NGK CR6E)SPARK PLUG (NGK CR6E)
-
160217-708 SPARK PLUG (NGK CR7E) (OPTIONAL)SPARK PLUG (NGK CR7E) (OPTIONAL)
-
160217-705 SPARK PLUG (NGK CR8E) (OPTIONAL)SPARK PLUG (NGK CR8E) (OPTIONAL)
-
173423-087 BOLT, STUDBOLT, STUD
-
183423-089 BOLT, STUDBOLT, STUD
-
193423-203 BOLT, STUDBOLT, STUD
-
203004-326 NUTNUT
-
213423-088 PIN, DOWELPIN, DOWEL
-
223402-362 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
233423-016 BOLTBOLT
-
243402-010 GASKETGASKET
-
253423-015 BOLTBOLT
-
263530-038 SWITCH, WATER TEMPERATURESWITCH, WATER TEMPERATURE
-
273413-012 THERMOSTATTHERMOSTAT
-
283413-004 COVER, THERMOSTATCOVER, THERMOSTAT
-
293423-347 SCREWSCREW
-
303402-357 PIPE, INTAKEPIPE, INTAKE
-
313423-353 O-RINGO-RING
-
320470-472 TUBE, INTAKETUBE, INTAKE
-
330423-317 CLAMPCLAMP
-
**3402-048 PLUG, FROST (NOT ILLUSTRATED)PLUG, FROST (NOT ILLUSTRATED)
