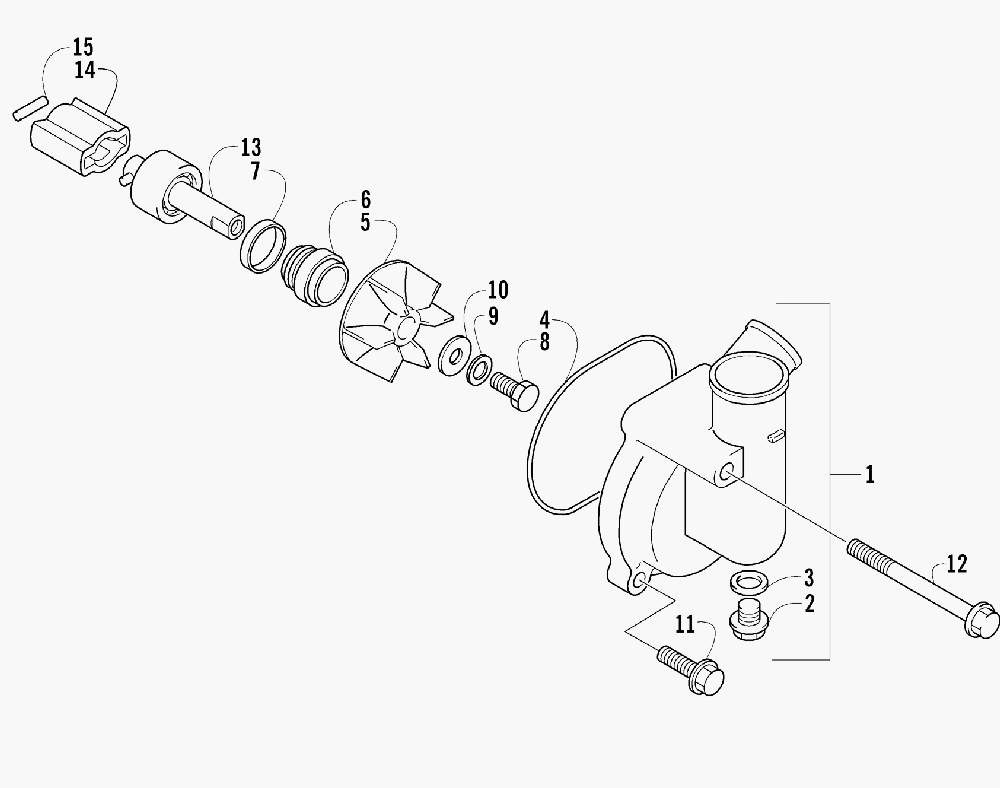

WATER PUMP ASSEMBLY для Arctic Cat 500 4X4 FIS MRP MAN (RED) [A2004ISM4AUST] - 2004 года выпуска
-
№АртикулНазвание
-
13402-354 CASE, WATER PUMP (INC. 2-3)CASE, WATER PUMP (INC. 2-3)
-
23423-343 ...SCREW, CAP...SCREW, CAP
-
33402-436 ...GASKET...GASKET
-
43423-078 O-RINGO-RING
-
53413-001 IMPELLERIMPELLER
-
63005-909 SEAL, MECHANICALSEAL, MECHANICAL
-
73003-356 OIL SEALOIL SEAL
-
83423-543 BOLTBOLT
-
93003-431 WASHERWASHER
-
103003-432 WASHERWASHER
-
113004-507 SCREW, CAPSCREW, CAP
-
123423-119 BOLTBOLT
-
133413-002 SHAFT, PUMP W/BEARINGSHAFT, PUMP W/BEARING
-
143413-011 JOINT, PUMP DRIVEJOINT, PUMP DRIVE
-
153423-046 PIN, DRIVEN GEARPIN, DRIVEN GEAR
