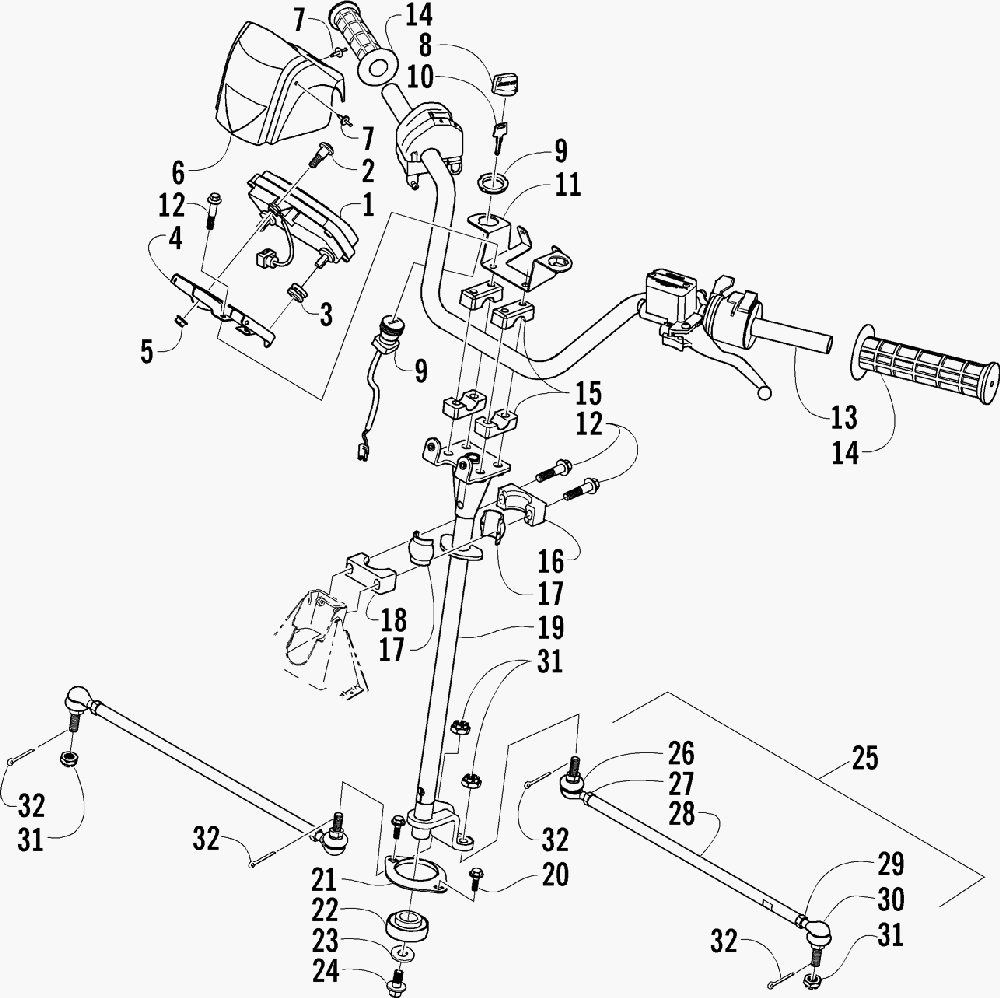

STEERING ASSEMBLY для Arctic Cat 500 4X4 FIS MRP MAN (RED) [A2004ISM4AUST] - 2004 года выпуска
-
№АртикулНазвание
-
10420-044 GAUGE, DIGITALGAUGE, DIGITAL
-
20423-356 SCREW, SHOULDERSCREW, SHOULDER
-
30423-448 GROMMETGROMMET
-
41506-307 BRACKET, MOUNTING - DIGITAL GAUGEBRACKET, MOUNTING - DIGITAL GAUGE
-
58424-602 NUT, FLANGENUT, FLANGE
-
60405-133 INSTRUMENT POD (RED)INSTRUMENT POD (RED)
-
60405-132 INSTRUMENT POD (GREEN)INSTRUMENT POD (GREEN)
-
60405-134 INSTRUMENT POD (CAT GREEN)INSTRUMENT POD (CAT GREEN)
-
70623-362 RIVET, REINSTALLABLERIVET, REINSTALLABLE
-
80409-013 COVER, KEYCOVER, KEY
-
93430-040 SWITCH, IGNITION - ASSEMBLY (INC. 10)SWITCH, IGNITION - ASSEMBLY (INC. 10)
-
103409-007 ...KEY, IGNITION - BLANK (C SERIES)...KEY, IGNITION - BLANK (C SERIES)
-
103409-011 ...KEY, IGNITION - BLANK (D SERIES)...KEY, IGNITION - BLANK (D SERIES)
-
103409-012 ...KEY, IGNITION - BLANK (E SERIES)...KEY, IGNITION - BLANK (E SERIES)
-
103409-013 ...KEY, IGNITION - BLANK (F SERIES)...KEY, IGNITION - BLANK (F SERIES)
-
111506-309 BRACKET, KEY SWITCHBRACKET, KEY SWITCH
-
128408-860 SCREW, CAPSCREW, CAP
-
130505-410 TUBE, HANDLEBARTUBE, HANDLEBAR
-
140405-106 GRIP, HANDLEBARGRIP, HANDLEBAR
-
150405-035 CAP, STEERING ADJUSTERCAP, STEERING ADJUSTER
-
160605-147 HOUSING, BEARING - UPPERHOUSING, BEARING - UPPER
-
170405-020 BEARING, STEERING POSTBEARING, STEERING POST
-
180605-171 HOUSING, BEARING - LOWERHOUSING, BEARING - LOWER
-
190505-431 POST, STEERINGPOST, STEERING
-
208408-816 SCREW, CAPSCREW, CAP
-
210602-233 FLANGE, BEARINGFLANGE, BEARING
-
220405-052 BEARING W/INVERTED OIL SEALBEARING W/INVERTED OIL SEAL
-
230423-073 WASHERWASHER
-
248409-020 SCREW, CAPSCREW, CAP
-
250505-408 TIE ROD - ASSEMBLY (INC. 26-30)TIE ROD - ASSEMBLY (INC. 26-30)
-
260405-083 ...BALL JOINT, TIE ROD - LEFT...BALL JOINT, TIE ROD - LEFT
-
270423-013 ...NUT - LEFT...NUT - LEFT
-
280405-107 ...TIE ROD...TIE ROD
-
298420-002 ...NUT - RIGHT...NUT - RIGHT
-
300405-082 ...BALL JOINT, TIE ROD - RIGHT...BALL JOINT, TIE ROD - RIGHT
-
310423-157 NUT, TOP LOCKNUT, TOP LOCK
-
320623-175 PIN, COTTERPIN, COTTER
