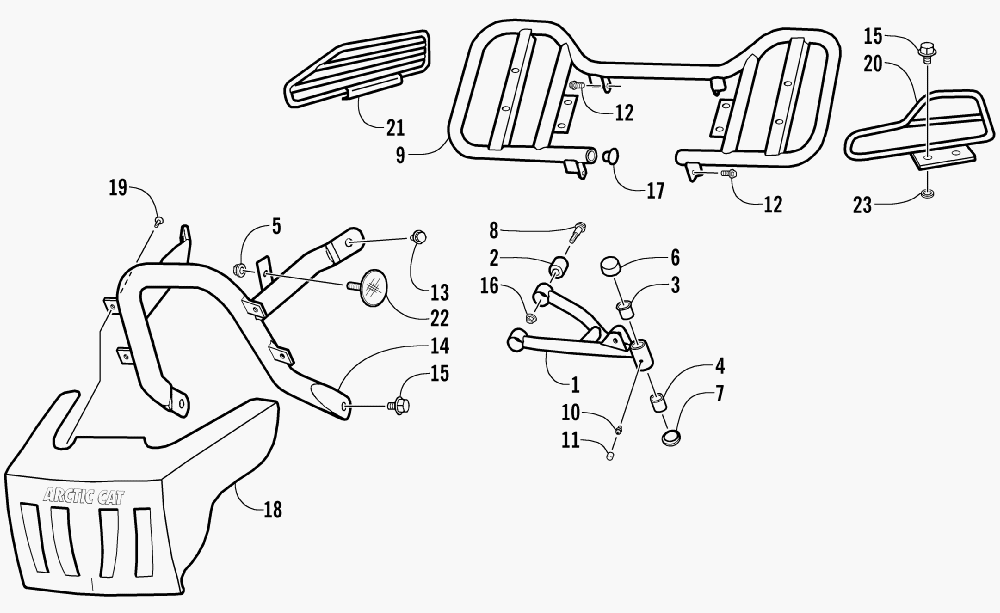

A-ARM- FLOOR PANEL- AND BUMPER ASSEMBLY для Arctic Cat 90 2X4 AUTO US (RED) [A2004ATB2BUSR] - 2004 года выпуска
-
№АртикулНазвание
-
13301-222 A-ARM, SUSPENSION - LEFTA-ARM, SUSPENSION - LEFT
-
13301-218 A-ARM, SUSPENSION - RIGHTA-ARM, SUSPENSION - RIGHT
-
23301-428 BUSHING, RUBBERBUSHING, RUBBER
-
33301-328 BUSHINGBUSHING
-
43301-219 BUSHINGBUSHING
-
53301-327 NUT, FLANGENUT, FLANGE
-
63301-220 COVER, WATERPROOFCOVER, WATERPROOF
-
73301-221 COVER, DUSTPROOFCOVER, DUSTPROOF
-
83301-402 SCREW, CAPSCREW, CAP
-
93301-251 PANEL, FLOORPANEL, FLOOR
-
103301-444 FITTING, GREASEFITTING, GREASE
-
113301-445 CAP, GREASE FITTINGCAP, GREASE FITTING
-
123301-400 SCREW, CAPSCREW, CAP
-
133301-388 SCREW, CAPSCREW, CAP
-
143301-207 BUMPERBUMPER
-
153301-395 SCREW, CAPSCREW, CAP
-
163301-283 NUT, NYLONNUT, NYLON
-
173301-256 CAP, FLOOR PANEL - RUBBERCAP, FLOOR PANEL - RUBBER
-
183301-208 COVER, BUMPERCOVER, BUMPER
-
193301-322 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
203301-254 GUARD, FLOOR PANEL - LEFTGUARD, FLOOR PANEL - LEFT
-
213301-255 GUARD, FLOOR PANEL - RIGHTGUARD, FLOOR PANEL - RIGHT
-
223301-455 REFLECTOR - AMBERREFLECTOR - AMBER
-
233301-476 WASHER, SPRINGWASHER, SPRING
