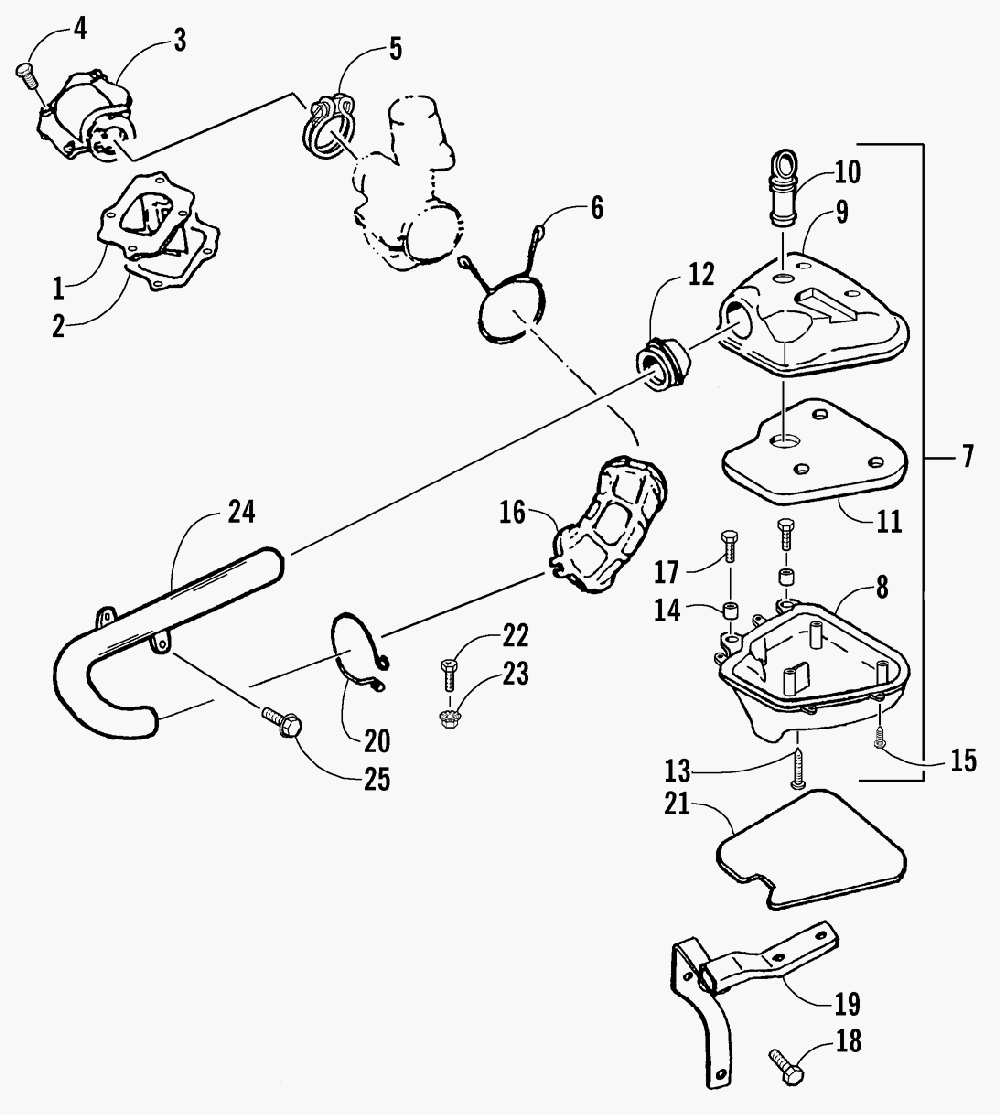

REED VALVE AND AIR CLEANER ASSEMBLY для Arctic Cat 90 2X4 AUTO US (RED) [A2004ATB2BUSR] - 2004 года выпуска
-
№АртикулНазвание
-
13301-030 VALVE, REED - ASSEMBLYVALVE, REED - ASSEMBLY
-
23301-061 GASKET, REED VALVEGASKET, REED VALVE
-
33301-060 MANIFOLD, INTAKEMANIFOLD, INTAKE
-
43301-389 SCREW, CAPSCREW, CAP
-
53301-031 CLAMP, HOSE - INTAKE MANIFOLDCLAMP, HOSE - INTAKE MANIFOLD
-
63301-375 CLIPCLIP
-
73301-062 AIR CLEANER ASSEMBLY (INC. 8-15)AIR CLEANER ASSEMBLY (INC. 8-15)
-
83301-064 ...BASE, AIR CLEANER...BASE, AIR CLEANER
-
93301-065 ...COVER, AIR CLEANER...COVER, AIR CLEANER
-
103301-067 ...PIPE, GUIDE...PIPE, GUIDE
-
113301-063 ...ELEMENT, AIR CLEANER...ELEMENT, AIR CLEANER
-
123301-070 ...CONNECTER, AIR CLEANER...CONNECTER, AIR CLEANER
-
133301-323 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
143301-432 ...GROMMET...GROMMET
-
153301-471 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
163301-520 JOINT, AIR CLEANERJOINT, AIR CLEANER
-
173301-307 SCREW, CAPSCREW, CAP
-
183301-396 SCREW, CAPSCREW, CAP
-
193301-072 BRACKET, AIR CLEANERBRACKET, AIR CLEANER
-
203301-376 CLIPCLIP
-
213301-068 GASKET, AIR CLEANER ISOLATIONGASKET, AIR CLEANER ISOLATION
-
223301-309 SCREW, CAPSCREW, CAP
-
233301-326 NUT, FLANGENUT, FLANGE
-
243301-071 DUCT, AIRDUCT, AIR
-
253301-484 SCREW, CAPSCREW, CAP
