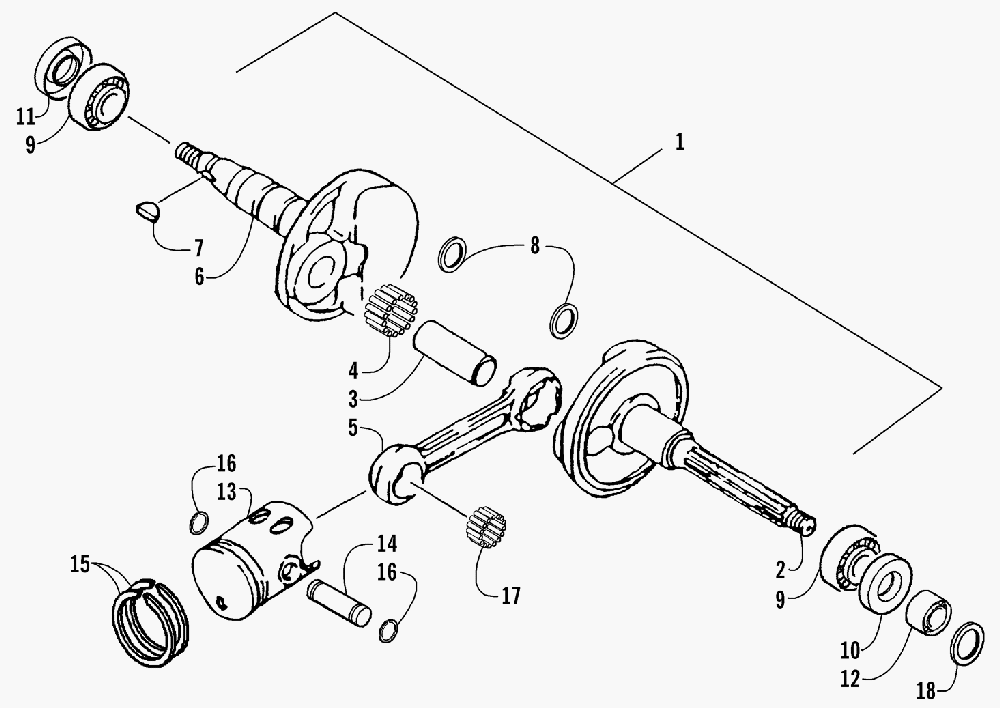

CRANKSHAFT AND PISTON ASSEMBLY для Arctic Cat 90 2X4 AUTO US (RED) [A2004ATB2BUSR] - 2004 года выпуска
-
№АртикулНазвание
-
13301-020 CRANKSHAFT ASSEMBLY (INC. 2-8)CRANKSHAFT ASSEMBLY (INC. 2-8)
-
23301-028 ...CRANK, LEFT...CRANK, LEFT
-
33301-029 ...PIN, CRANK...PIN, CRANK
-
43301-421 ...BEARING, NEEDLE...BEARING, NEEDLE
-
53301-025 ...ROD, CONNECTING...ROD, CONNECTING
-
63301-026 ...CRANK, RIGHT...CRANK, RIGHT
-
73301-285 ...KEY...KEY
-
83301-354 ...WASHER...WASHER
-
93301-415 BEARING, RADIAL BALLBEARING, RADIAL BALL
-
103301-438 SEAL, OILSEAL, OIL
-
113301-437 SEAL, OILSEAL, OIL
-
123301-027 COLLAR, CRANKCOLLAR, CRANK
-
133301-022 PISTONPISTON
-
143301-023 PIN, PISTONPIN, PISTON
-
153301-021 RING, PISTON - SETRING, PISTON - SET
-
163301-024 CLIP, PISTON PINCLIP, PISTON PIN
-
173301-419 BEARING, NEEDLEBEARING, NEEDLE
-
183301-353 WASHERWASHER
