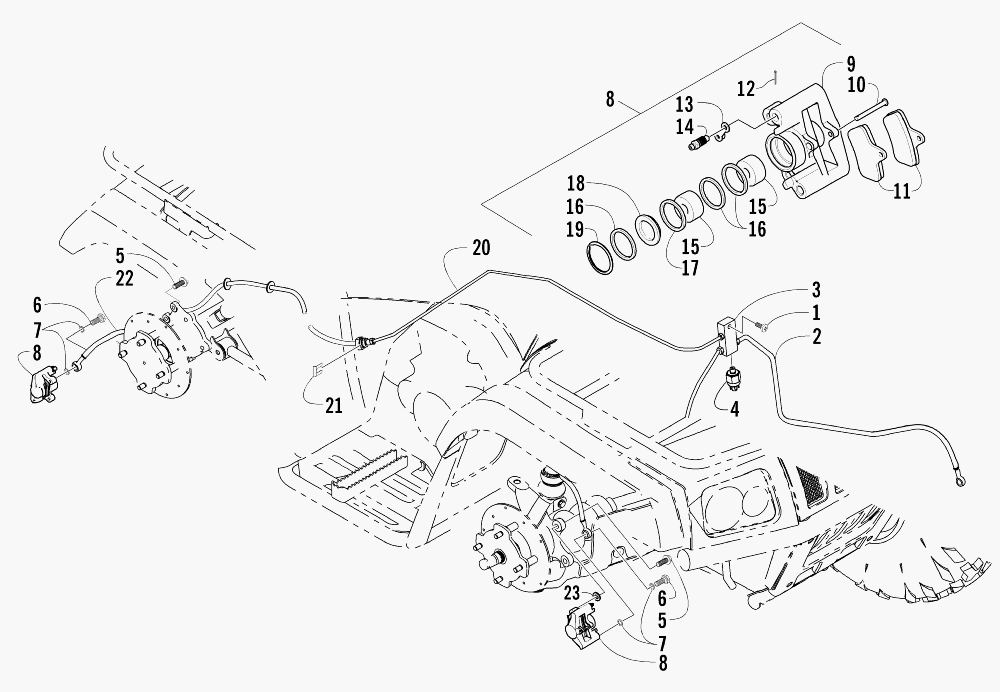

HYDRAULIC BRAKE ASSEMBLY для Arctic Cat 400 4X4 VP AUTO (RED) [A2005ATH4BUSR] - 2005 года выпуска
-
№АртикулНазвание
-
18476-625 SCREW, CAPSCREW, CAP
-
21402-310 HOSE, BRAKE - FRONTHOSE, BRAKE - FRONT
-
31402-086 BLOCK, JUNCTIONBLOCK, JUNCTION
-
40402-306 SWITCH, BRAKE PRESSURESWITCH, BRAKE PRESSURE
-
58408-825 SCREW, CAPSCREW, CAP
-
60423-413 BOLT, BANJO FITTINGBOLT, BANJO FITTING
-
70423-178 WASHER, CRUSHWASHER, CRUSH
-
80502-457 CALIPER, BRAKE - RIGHT FRONT (INC. 9-19)CALIPER, BRAKE - RIGHT FRONT (INC. 9-19)
-
80502-456 CALIPER, BRAKE - LEFT FRONT AND RIGHTREAR (INC. 9-19)CALIPER, BRAKE - LEFT FRONT AND RIGHTREAR (INC. 9-19)
-
100402-495 ...PIN, BRAKE CALIPER...PIN, BRAKE CALIPER
-
111402-126 ...PAD, BRAKE...PAD, BRAKE
-
120423-495 ...PIN, COTTER...PIN, COTTER
-
130402-493 ...CAP, BLEED VALVE...CAP, BLEED VALVE
-
141402-123 ...VALVE, BLEED...VALVE, BLEED
-
151402-125 ...PISTON...PISTON
-
160402-980 ...O-RING, BRAKE CALIPER...O-RING, BRAKE CALIPER
-
200402-932 TUBE, BRAKE LINE - REARTUBE, BRAKE LINE - REAR
-
210402-597 CLIP, BRAKE LINECLIP, BRAKE LINE
-
220402-990 HOSE, BRAKE - REARHOSE, BRAKE - REAR
-
230423-562 SPACERSPACER
