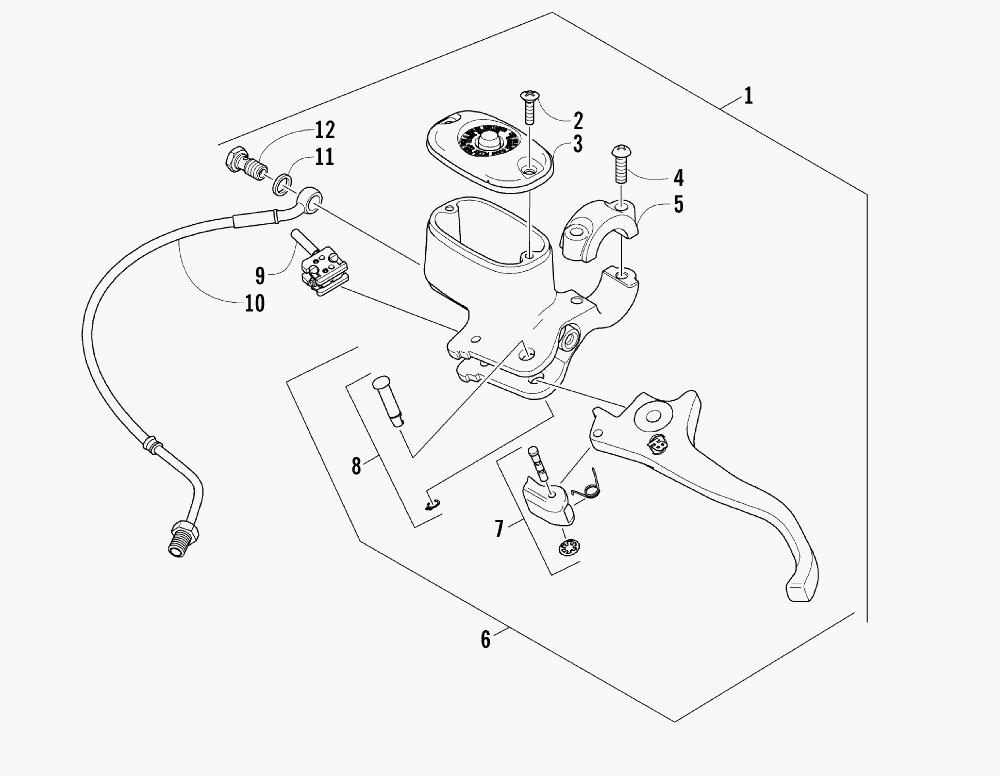

HYDRAULIC HAND BRAKE ASSEMBLY для Arctic Cat 400 4X4 VP AUTO (RED) [A2005ATH4BUSR] - 2005 года выпуска
-
№АртикулНазвание
-
-0502-704 MASTER CYLINDER REBUILD KITMASTER CYLINDER REBUILD KIT
-
10502-703 BRAKE ASSEMBLY (INC. 2-9)BRAKE ASSEMBLY (INC. 2-9)
-
20502-566 ...SCREW, RESERVOIR COVER - KIT...SCREW, RESERVOIR COVER - KIT
-
30502-706 ...COVER, RESERVOIR - KIT...COVER, RESERVOIR - KIT
-
40502-568 ...SCREW, MASTER CYLINDER CLAMP - KIT...SCREW, MASTER CYLINDER CLAMP - KIT
-
50502-705 ...CLAMP, MASTER CYLINDER - KIT...CLAMP, MASTER CYLINDER - KIT
-
60502-634 ...LEVER ASSEMBLY - KIT (INC. 7-8)...LEVER ASSEMBLY - KIT (INC. 7-8)
-
70502-635 ......LOCK, BRAKE LEVER - KIT......LOCK, BRAKE LEVER - KIT
-
80502-580 ......LEVER PIN - KIT......LEVER PIN - KIT
-
90502-564 ...SWITCH, BRAKE - KIT...SWITCH, BRAKE - KIT
-
101402-344 BRAKELINE, HYDRAULICBRAKELINE, HYDRAULIC
-
110423-178 WASHER, CRUSHWASHER, CRUSH
-
120423-413 BOLT, BANJO FITTINGBOLT, BANJO FITTING
