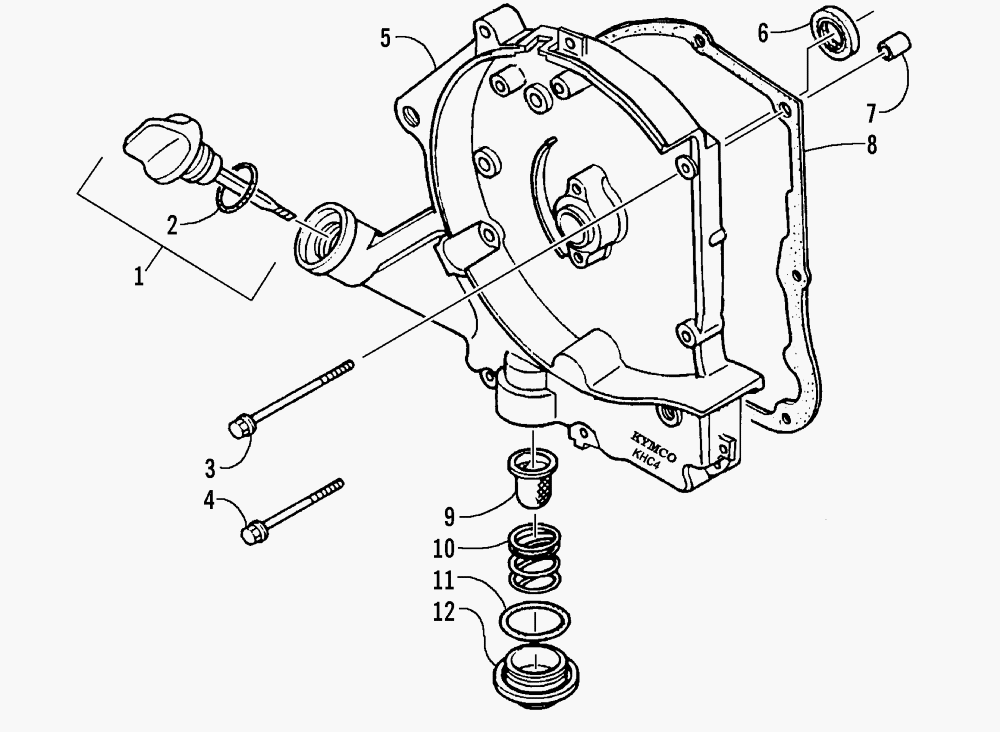

CRANKCASE COVER ASSEMBLY для Arctic Cat 50 Y-6 YOUTH - DVX (ARCTIC CAT GREEN) [A2006KSA2BUSZ] - 2006 года выпуска
-
№АртикулНазвание
-
13303-050 GAUGE, OIL LEVEL - ASSEMBLY (INC. 2)GAUGE, OIL LEVEL - ASSEMBLY (INC. 2)
-
33303-390 BOLT, FLANGE (6*100MM)BOLT, FLANGE (6*100MM)
-
43303-388 BOLT, FLANGE (6*85MM)BOLT, FLANGE (6*85MM)
-
53303-475 COVER, CRANKCASE (INC. 6)COVER, CRANKCASE (INC. 6)
-
73303-341 PIN, DOWEL (8*14MM)PIN, DOWEL (8*14MM)
-
83303-481 GASKET, CRANKCASEGASKET, CRANKCASE
-
93303-048 SCREEN, OIL FILTERSCREEN, OIL FILTER
-
103303-049 SPRING, OIL FILTER SCREENSPRING, OIL FILTER SCREEN
-
113303-302 O-RING (30.8MM)O-RING (30.8MM)
-
123303-021 HOLE CAP, TAPPET ADJUSTINGHOLE CAP, TAPPET ADJUSTING
