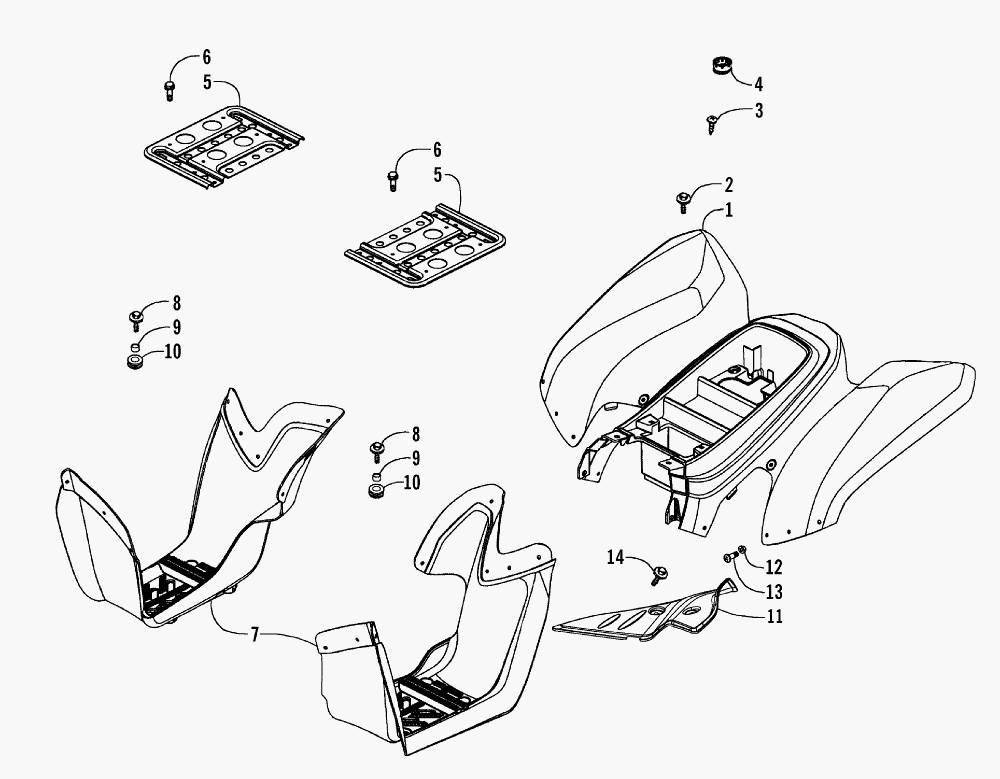

REAR BODY PANEL ASSEMBLY для Arctic Cat 50 Y-6 YOUTH - DVX (ARCTIC CAT GREEN) [A2006KSA2BUSZ] - 2006 года выпуска
-
№АртикулНазвание
-
13303-454 FENDER, REAR (RED)FENDER, REAR (RED)
-
13303-455 FENDER, REAR (LIME)FENDER, REAR (LIME)
-
23303-313 BOLT W/WASHER (6*16MM)BOLT W/WASHER (6*16MM)
-
33303-323 SCREW, SELF-TAPPING (5*16MM)SCREW, SELF-TAPPING (5*16MM)
-
43303-232 RUBBER, REAR FENDERRUBBER, REAR FENDER
-
53303-186 REINFORCEMENT, FLOORREINFORCEMENT, FLOOR
-
63303-366 BOLT, FLANGE (8*16MM)BOLT, FLANGE (8*16MM)
-
73303-234 MUDGUARD, ASSEMBLY - RIGHTMUDGUARD, ASSEMBLY - RIGHT
-
73303-235 MUDGUARD, ASSEMBLY - LEFTMUDGUARD, ASSEMBLY - LEFT
-
83303-312 BOLT W/WASHER (6*20MM)BOLT W/WASHER (6*20MM)
-
93303-233 COLLAR, FLOORCOLLAR, FLOOR
-
103303-227 RUBBER, WIND SCREENRUBBER, WIND SCREEN
-
113303-267 NUT, CLIP (6MM)NUT, CLIP (6MM)
-
123303-331 NUT, FLANGE (6MM)NUT, FLANGE (6MM)
-
133303-251 SCREW (6*16MM)SCREW (6*16MM)
-
143303-311 BOLT W/WASHER (6*16MM)BOLT W/WASHER (6*16MM)
-
153303-237 COVER, SIDE - ASSEMBLYCOVER, SIDE - ASSEMBLY
