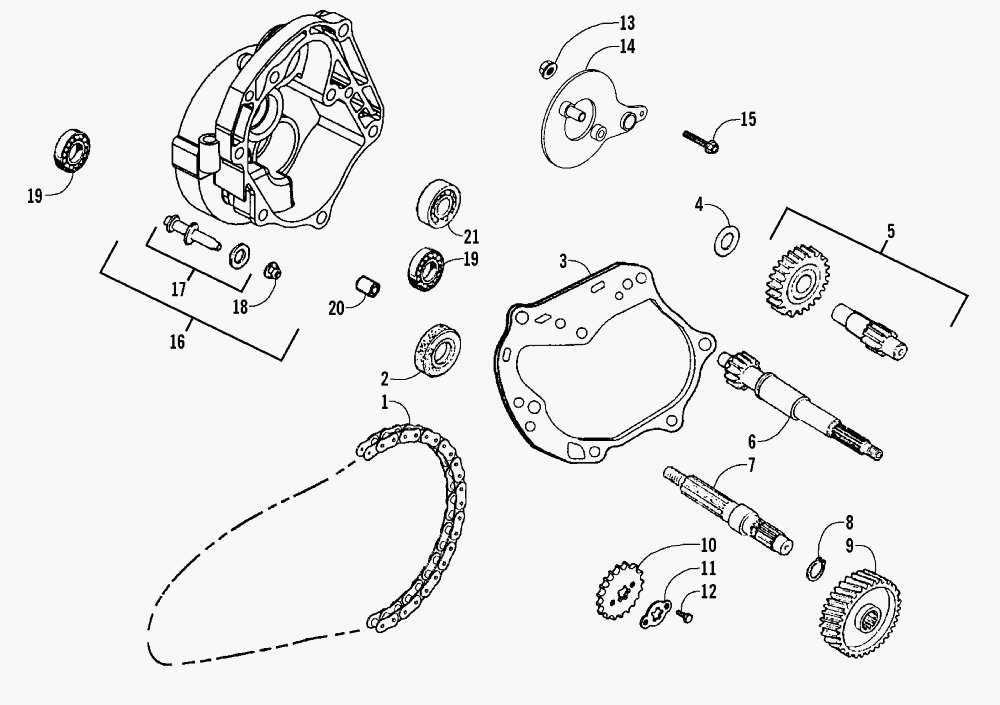

TRANSMISSION ASSEMBLY для Arctic Cat 50 Y-6 YOUTH - DVX (ARCTIC CAT GREEN) [A2006KSA2BUSZ] - 2006 года выпуска
-
№АртикулНазвание
-
13303-425 CHAIN, DRIVECHAIN, DRIVE
-
23303-300 SEAL, OIL (27*42*7)SEAL, OIL (27*42*7)
-
33303-522 GASKET, TRANSMISSION CASE AGASKET, TRANSMISSION CASE A
-
43303-273 WASHER (12MM)WASHER (12MM)
-
53303-545 COUNTERSHAFT - ASSEMBLYCOUNTERSHAFT - ASSEMBLY
-
63303-544 DRIVESHAFTDRIVESHAFT
-
73303-105 SHAFT, FINALSHAFT, FINAL
-
83303-344 CIRCLIP (20MM)CIRCLIP (20MM)
-
93303-546 GEAR, FINALGEAR, FINAL
-
103303-107 SPROCKET, DRIVE (16T)SPROCKET, DRIVE (16T)
-
113303-108 PLATEPLATE
-
123303-307 BOLT (6*10)BOLT (6*10)
-
133303-270 NUT, FLANGE (8MM)NUT, FLANGE (8MM)
-
143303-185 BRACKET, ENGINE HANGER - ASSEMBLYBRACKET, ENGINE HANGER - ASSEMBLY
-
153303-371 BOLT, FLANGE (8*50)BOLT, FLANGE (8*50)
-
163303-521 CASE, TRANSMISSION - SET (INC. 17-18)CASE, TRANSMISSION - SET (INC. 17-18)
-
193303-596 BEARING, BALLBEARING, BALL
-
203303-343 PIN, DOWEL (10*20)PIN, DOWEL (10*20)
-
213303-458 BEARING, BALL (6004)BEARING, BALL (6004)
