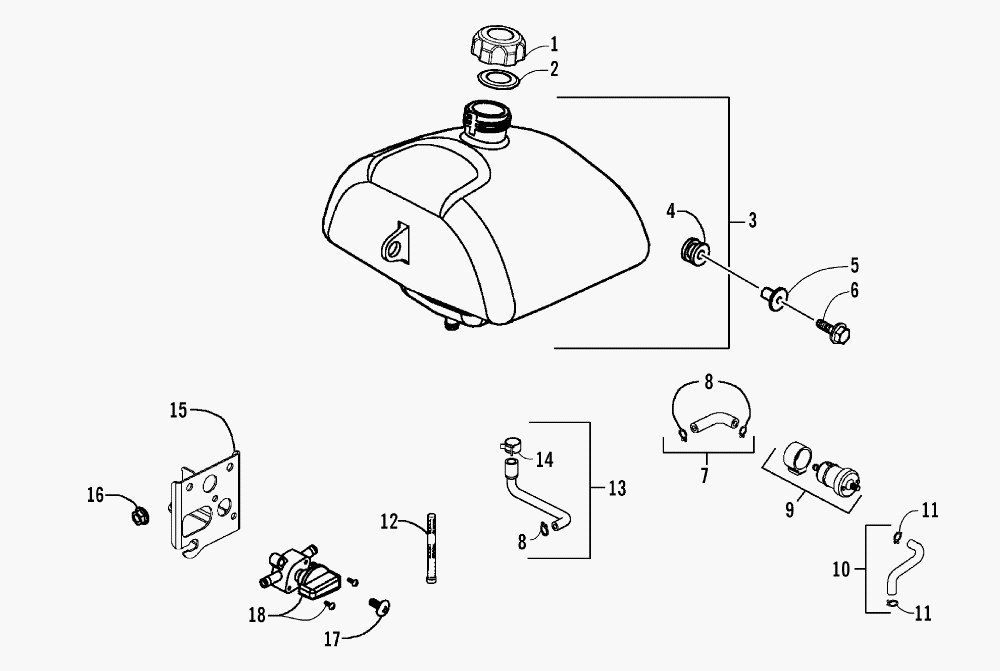

GAS TANK ASSEMBLY для Arctic Cat 50 Y-6 YOUTH - UTILITY (RED) [A2006KUA2BUSR] - 2006 года выпуска
-
№АртикулНазвание
-
13303-067 CAP, GAS TANKCAP, GAS TANK
-
23303-068 SEAL, GAS TANK CAPSEAL, GAS TANK CAP
-
33303-065 GAS TANK - ASSEMBLY (INC. 4)GAS TANK - ASSEMBLY (INC. 4)
-
43303-406 ...RUBBER, GAS TANK...RUBBER, GAS TANK
-
53303-226 COLLARCOLLAR
-
63303-383 BOLT, FLANGEBOLT, FLANGE
-
73303-353 TUBE, GAS - ASSEMBLY (INC. TWO NO. 8)TUBE, GAS - ASSEMBLY (INC. TWO NO. 8)
-
83303-349 ...CLIP...CLIP
-
93303-056 STRAINER, FUEL - ASSEMBLYSTRAINER, FUEL - ASSEMBLY
-
103303-610 TUBE, GAS - ASSEMBLY (INC. 11-12)TUBE, GAS - ASSEMBLY (INC. 11-12)
-
113303-352 ...CLIP...CLIP
-
123303-348 ...CLIP...CLIP
-
133303-066 TUBE, GAS - ASSEMBLY (INC. TWO NO. 8 AND 14)TUBE, GAS - ASSEMBLY (INC. TWO NO. 8 AND 14)
-
143303-351 ...CLAMP, TUBE...CLAMP, TUBE
-
153303-058 SCREEN, FUEL STRAINERSCREEN, FUEL STRAINER
-
163303-331 NUT, FLANGENUT, FLANGE
-
173303-070 BRACKET, SHUT-OFF VALVEBRACKET, SHUT-OFF VALVE
-
183303-057 VALVE, SHUT-OFFVALVE, SHUT-OFF
-
193303-316 SCREWSCREW
