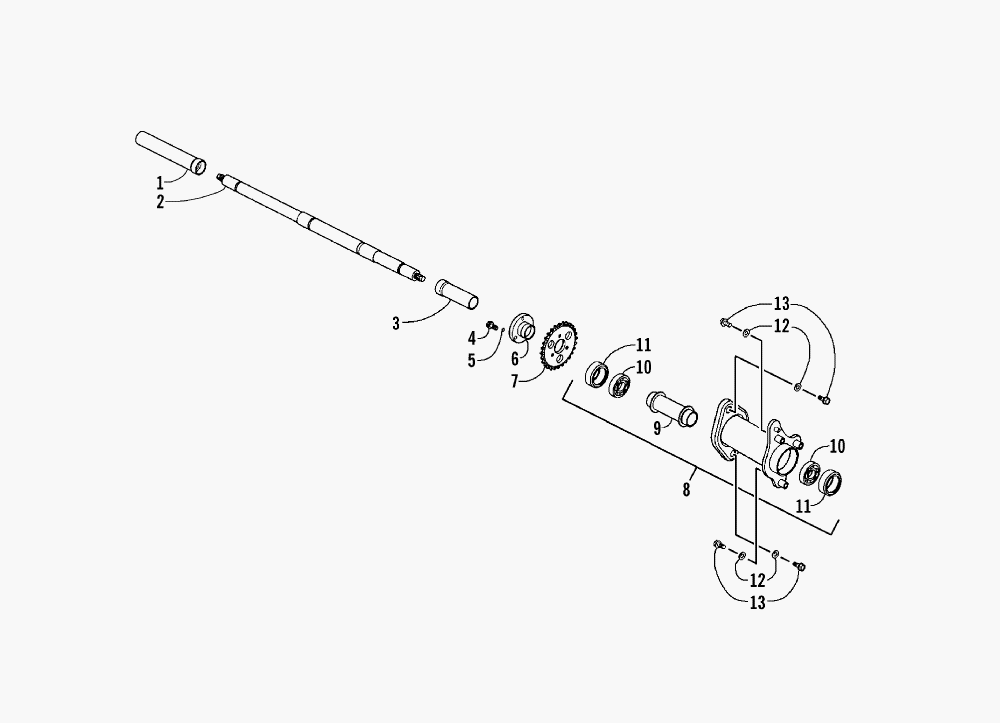

REAR AXLE ASSEMBLY для Arctic Cat 50 Y-6 YOUTH - UTILITY (RED) [A2006KUA2BUSR] - 2006 года выпуска
-
№АртикулНазвание
-
13303-152 SPACER, REAR WHEEL - RIGHTSPACER, REAR WHEEL - RIGHT
-
23303-281 WASHERWASHER
-
33303-151 SHAFT, REAR WHEELSHAFT, REAR WHEEL
-
43303-153 SPACER, REAR WHEEL - LEFTSPACER, REAR WHEEL - LEFT
-
53303-566 SPROCKET, FINAL DRIVE - ASSEMBLY (INC. 6-9)SPROCKET, FINAL DRIVE - ASSEMBLY (INC. 6-9)
-
63304-565 ...BOLT, FLANGE...BOLT, FLANGE
-
73303-607 ...WASHER, SPRING...WASHER, SPRING
-
83303-149 ...HOLDER, SPROCKET...HOLDER, SPROCKET
-
93303-426 ...SPROCKET, FINAL DRIVE...SPROCKET, FINAL DRIVE
-
103303-281 WASHERWASHER
-
113303-379 BOLT, FLANGEBOLT, FLANGE
-
123303-154 HUB, REAR - ASSEMBLY (INC. 13-15)HUB, REAR - ASSEMBLY (INC. 13-15)
-
133303-427 ...COLLAR, HUB - RIGHT...COLLAR, HUB - RIGHT
-
143303-466 ...BEARING...BEARING
-
153303-461 ...SEAL, DUST...SEAL, DUST
