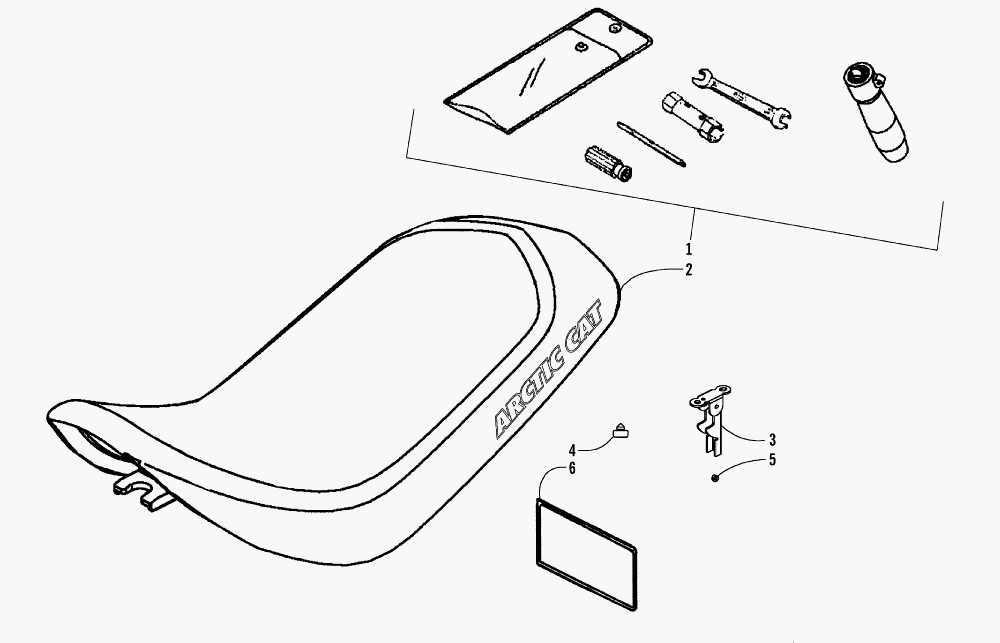

SEAT AND TOOL KIT ASSEMBLY для Arctic Cat 50 Y-6 YOUTH - UTILITY (RED) [A2006KUA2BUSR] - 2006 года выпуска
-
№АртикулНазвание
-
13303-578 TOOL - KITTOOL - KIT
-
23304-497 SEAT - ASSEMBLY (INC. 3-5)SEAT - ASSEMBLY (INC. 3-5)
-
33304-392 ...LATCH, SEAT - ASSEMBLY...LATCH, SEAT - ASSEMBLY
-
43304-568 ...RUBBER, SEAT CUSHION...RUBBER, SEAT CUSHION
-
53303-331 ...NUT, FLANGE...NUT, FLANGE
-
63303-242 BAND, TOOL KITBAND, TOOL KIT
