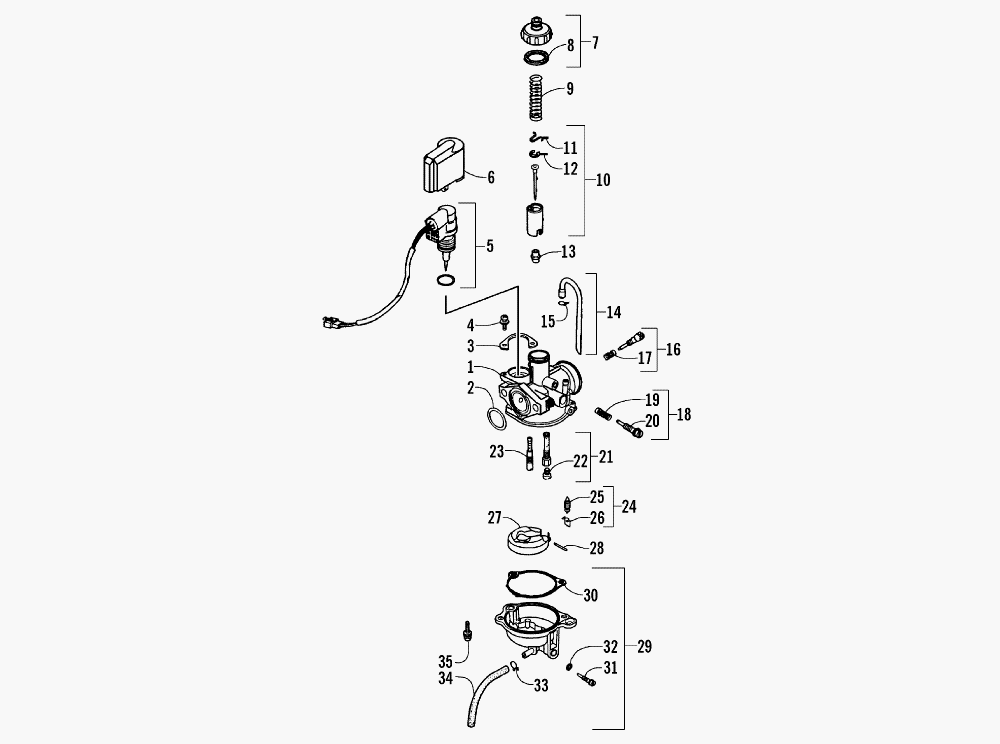

CARBURETOR ASSEMBLY для Arctic Cat 90 Y-12 YOUTH - DVX (ARCTIC CAT GREEN) [A2006KSB2BUSZ] - 2006 года выпуска
-
№АртикулНазвание
-
-3303-405 CARBURETOR ASSYCARBURETOR ASSY
-
23304-488 O-RINGO-RING
-
33304-471 SET PLATESET PLATE
-
43303-319 SCREW W/WASHERSCREW W/WASHER
-
53304-470 AUTOMATIC BYPASS/STARTER ASSEMBLYAUTOMATIC BYPASS/STARTER ASSEMBLY
-
63304-469 HOLDER, CAPHOLDER, CAP
-
73304-462 SET, TOP (INC. 8)SET, TOP (INC. 8)
-
83304-463 ...GASKET, TOP...GASKET, TOP
-
93304-464 SPRING, COMPRESSIONSPRING, COMPRESSION
-
103304-467 VALVE, THROTTLE - ASSEMBLY (INC. 11-12)VALVE, THROTTLE - ASSEMBLY (INC. 11-12)
-
113304-465 ...PLATE, NEEDLE CLIP...PLATE, NEEDLE CLIP
-
123304-466 ...CLIP, NEEDLE...CLIP, NEEDLE
-
133304-468 NEEDLE JETNEEDLE JET
-
143304-473 TUBE, RUBBER - ASSEMBLY (INC. 15)TUBE, RUBBER - ASSEMBLY (INC. 15)
-
153304-474 ...CLIP, TUBE...CLIP, TUBE
-
163304-475 SCREW, ADJUSTMENT - ASSEMBLY (INC. 17)SCREW, ADJUSTMENT - ASSEMBLY (INC. 17)
-
173304-476 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
183304-477 SCREW, STOP - ASSEMBLY (INC. 19-20)SCREW, STOP - ASSEMBLY (INC. 19-20)
-
193304-232 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
203304-478 ...SCREW, STOP...SCREW, STOP
-
213304-479 HOLDER, NEEDLE JET - ASSEMBLY (INC. 22)HOLDER, NEEDLE JET - ASSEMBLY (INC. 22)
-
223304-482 ...JET, MAIN...JET, MAIN
-
233304-489 JET, SLOWJET, SLOW
-
243304-490 VALVE, FLOAT - ASSEMBLY (INC. 25-26)VALVE, FLOAT - ASSEMBLY (INC. 25-26)
-
253304-483 ...VALVE, FLOAT - SET...VALVE, FLOAT - SET
-
263304-484 ...CLIP...CLIP
-
273304-491 FLOAT ASSEMBLYFLOAT ASSEMBLY
-
283304-485 PIN, FLOAT ARMPIN, FLOAT ARM
-
293304-486 BODY, FLOAT CHAMBER - ASSEMBLY (INC. 30-33)BODY, FLOAT CHAMBER - ASSEMBLY (INC. 30-33)
-
313304-243 ...SCREW, DRAIN...SCREW, DRAIN
-
323304-239 ...O-RING...O-RING
-
333304-452 ...CLIP, TUBE...CLIP, TUBE
-
343303-320 SCREW W/WASHERSCREW W/WASHER
