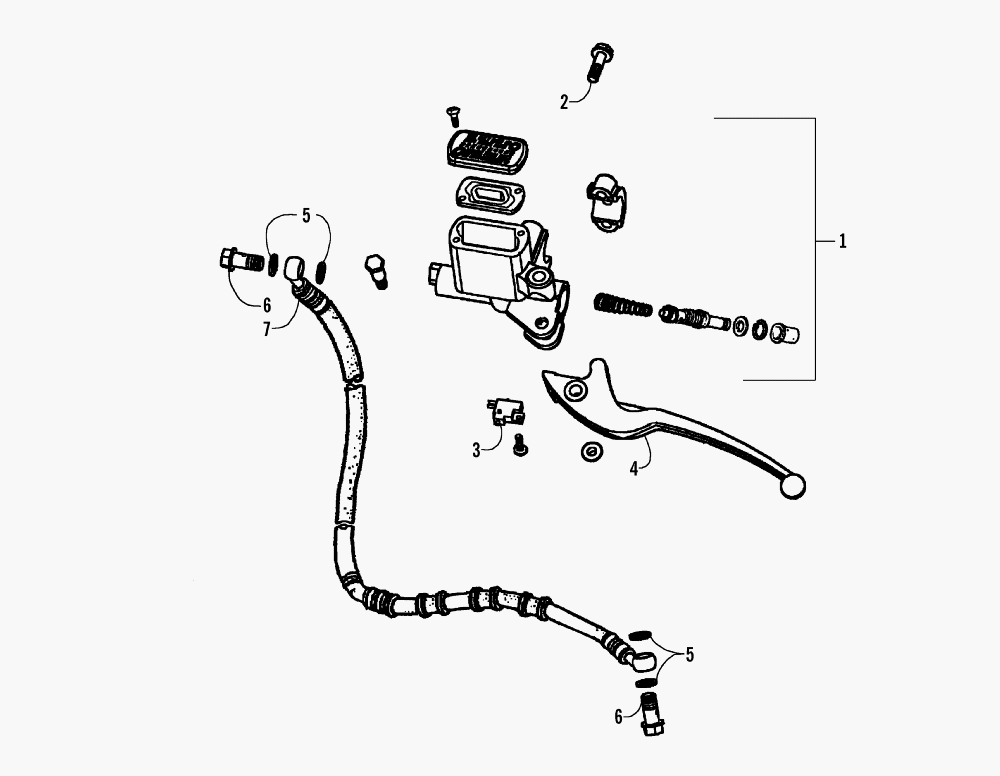

HYDRAULIC HAND BRAKE ASSEMBLY для Arctic Cat 90 Y-12 YOUTH - DVX (ARCTIC CAT GREEN) [A2006KSB2BUSZ] - 2006 года выпуска
-
№АртикулНазвание
-
13303-163 BRAKE, MASTER CYLINDER - ASSEMBLYBRAKE, MASTER CYLINDER - ASSEMBLY
-
23303-359 BOLT, FLANGEBOLT, FLANGE
-
33303-141 SWITCH ASSEMBLYSWITCH ASSEMBLY
-
43303-206 LEVERLEVER
-
53304-284 WASHER, CRUSHWASHER, CRUSH
-
63304-257 BOLT, BANJO FITTINGBOLT, BANJO FITTING
-
73303-160 HOSE, BRAKE - ASSEMBLYHOSE, BRAKE - ASSEMBLY
