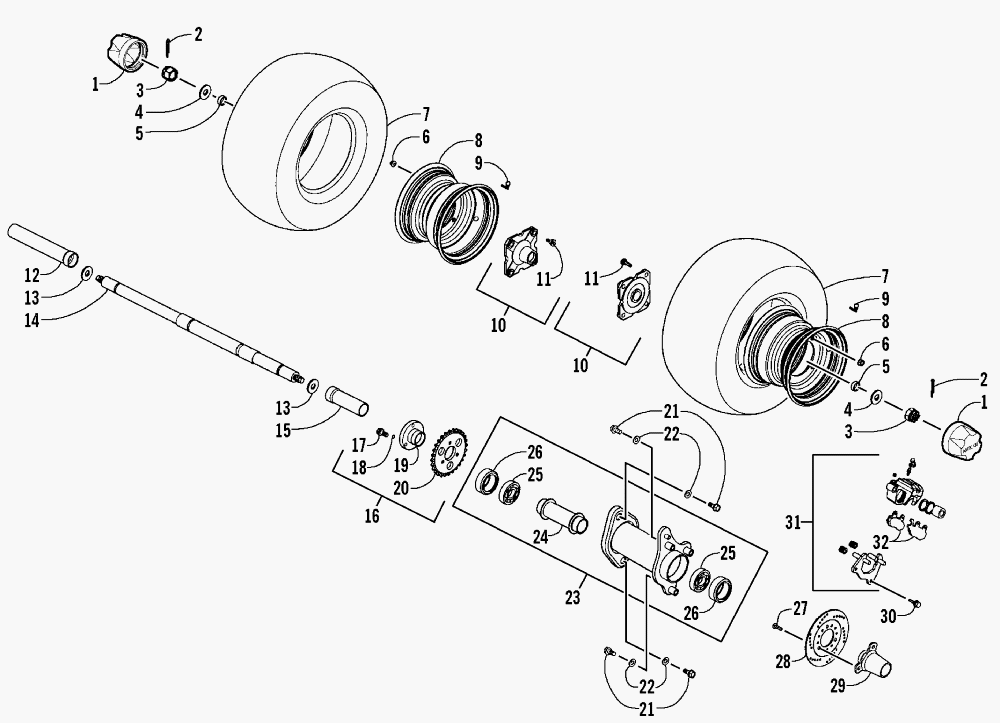

REAR WHEEL- AXLE- AND BRAKE ASSEMBLIES для Arctic Cat 90 Y-12 YOUTH - DVX (ARCTIC CAT GREEN) [A2006KSB2BUSZ] - 2006 года выпуска
-
№АртикулНазвание
-
13303-430 CAP, WHEEL SHAFTCAP, WHEEL SHAFT
-
23303-470 PIN, COTTERPIN, COTTER
-
33303-330 NUT, FLANGE CASTLENUT, FLANGE CASTLE
-
43303-335 WASHERWASHER
-
53303-164 COLLAR, WHEELCOLLAR, WHEEL
-
63303-266 NUT, FLANGENUT, FLANGE
-
73303-428 TIRE - REARTIRE - REAR
-
83303-156 RIM - ASSEMBLY (INC. 9)RIM - ASSEMBLY (INC. 9)
-
103303-157 CONNECTOR - ASSEMBLY (INC. 11)CONNECTOR - ASSEMBLY (INC. 11)
-
113303-250 ...BOLT, CONNECTOR...BOLT, CONNECTOR
-
123303-152 SPACER, REAR WHEEL - RIGHTSPACER, REAR WHEEL - RIGHT
-
133303-280 WASHERWASHER
-
143303-151 SHAFT, REAR WHEELSHAFT, REAR WHEEL
-
153303-153 SPACER, REAR WHEEL - LEFTSPACER, REAR WHEEL - LEFT
-
163303-566 SPROCKET, FINAL DRIVE - ASSEMBLY (INC. 17-20)SPROCKET, FINAL DRIVE - ASSEMBLY (INC. 17-20)
-
173303-368 ...BOLT, FLANGE...BOLT, FLANGE
-
183303-607 ...WASHER, SPRING...WASHER, SPRING
-
193303-149 ...HOLDER, SPROCKET...HOLDER, SPROCKET
-
203303-426 ...SPROCKET, FINAL DRIVE...SPROCKET, FINAL DRIVE
-
213303-379 BOLT, FLANGEBOLT, FLANGE
-
223303-281 WASHERWASHER
-
233303-154 HUB, REAR - ASSEMBLY (INC. 24-26)HUB, REAR - ASSEMBLY (INC. 24-26)
-
243303-427 ...COLLAR, HUB - RIGHT...COLLAR, HUB - RIGHT
-
253303-466 ...BEARING...BEARING
-
273303-253 BOLT, DISCBOLT, DISC
-
283303-162 DISC, BRAKE - REARDISC, BRAKE - REAR
-
293303-161 COLLAR, HUB - REARCOLLAR, HUB - REAR
-
303303-256 BOLT, FLANGEBOLT, FLANGE
-
313303-568 CALIPER, REAR - ASSEMBLY (INC. 32)CALIPER, REAR - ASSEMBLY (INC. 32)
-
323303-446 ...PAD, BRAKE - ASSEMBLY...PAD, BRAKE - ASSEMBLY
