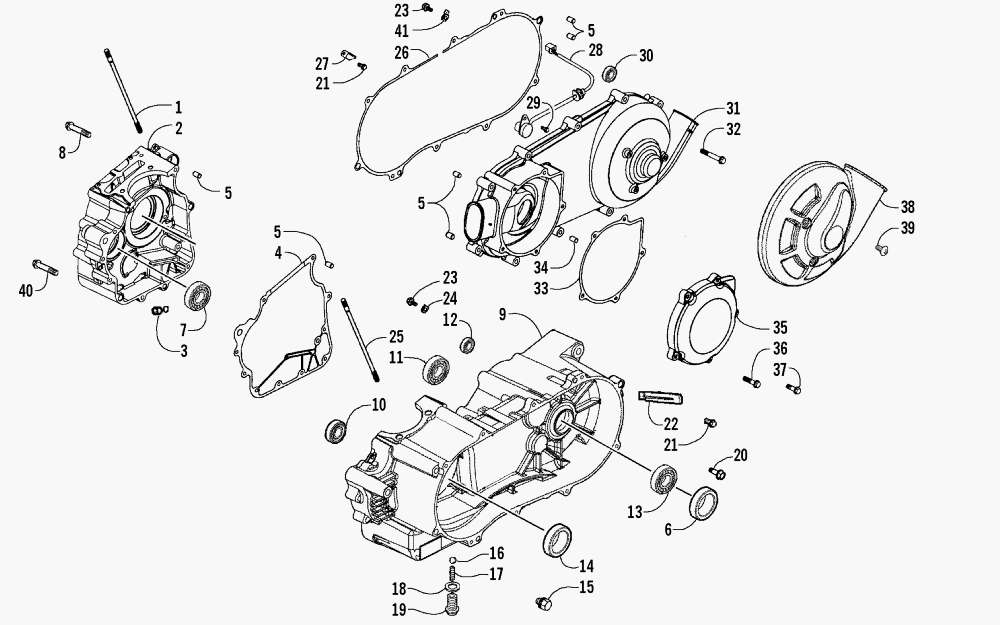

CRANKCASE ASSEMBLY для Arctic Cat DVX 250 (BLACK/ARCTIC CAT GREEN) [A2006KSE2BUSE] - 2006 года выпуска
-
№АртикулНазвание
-
13304-008 BOLT, STUDBOLT, STUD
-
23303-626 CRANKCASE - RIGHT (INC. 3)CRANKCASE - RIGHT (INC. 3)
-
33304-065 ...PLUG, CONE-TYPE...PLUG, CONE-TYPE
-
43303-628 GASKET, CRANKCASEGASKET, CRANKCASE
-
53304-342 PIN, DOWELPIN, DOWEL
-
63304-091 SEAL, OILSEAL, OIL
-
73304-198 BEARINGBEARING
-
83304-191 SCREW, CAPSCREW, CAP
-
93304-221 CRANKCASE - LEFTCRANKCASE - LEFT
-
103304-195 BEARINGBEARING
-
113304-699 BEARINGBEARING
-
123304-074 BEARINGBEARING
-
133304-067 BEARINGBEARING
-
143304-079 SEAL, OILSEAL, OIL
-
153303-283 PLUG, DRAINPLUG, DRAIN
-
163304-205 BALL, STEELBALL, STEEL
-
173304-063 SPRING, BOLT SEAT INNERSPRING, BOLT SEAT INNER
-
183304-021 WASHER, BOLT SEATWASHER, BOLT SEAT
-
193304-109 BOLT, SEAT BALL STOPPERBOLT, SEAT BALL STOPPER
-
203303-365 SCREW, CAPSCREW, CAP
-
213303-381 SCREW, CAPSCREW, CAP
-
223304-158 CLIP, WIRECLIP, WIRE
-
233304-005 SCREW, CAPSCREW, CAP
-
243304-040 PLATE, BEARING HOLDERPLATE, BEARING HOLDER
-
253304-009 BOLT, STUDBOLT, STUD
-
263303-642 GASKET, CRANKCASE COVER - LEFTGASKET, CRANKCASE COVER - LEFT
-
273303-843 CLAMP, WIRECLAMP, WIRE
-
283304-698 CABLE, GEAR CHANGECABLE, GEAR CHANGE
-
293304-187 SCREW, CAPSCREW, CAP
-
303304-073 BEARINGBEARING
-
313303-632 COVER, CRANKCASE - LEFTCOVER, CRANKCASE - LEFT
-
323304-003 SCREW, CAPSCREW, CAP
-
333304-101 GASKET, STARTER COVERGASKET, STARTER COVER
-
343303-341 PIN, DOWELPIN, DOWEL
-
353304-225 COVER, RECOIL STARTERCOVER, RECOIL STARTER
-
363304-190 SCREW, CAPSCREW, CAP
-
373303-384 SCREW, CAPSCREW, CAP
-
383304-222 COVER, CRANKCASE COVER - LEFTCOVER, CRANKCASE COVER - LEFT
-
393304-407 SCREW, PAN HEADSCREW, PAN HEAD
-
403304-004 BOLT, FLANGEBOLT, FLANGE
-
413304-039 PLATE, BEARING HOLDERPLATE, BEARING HOLDER
