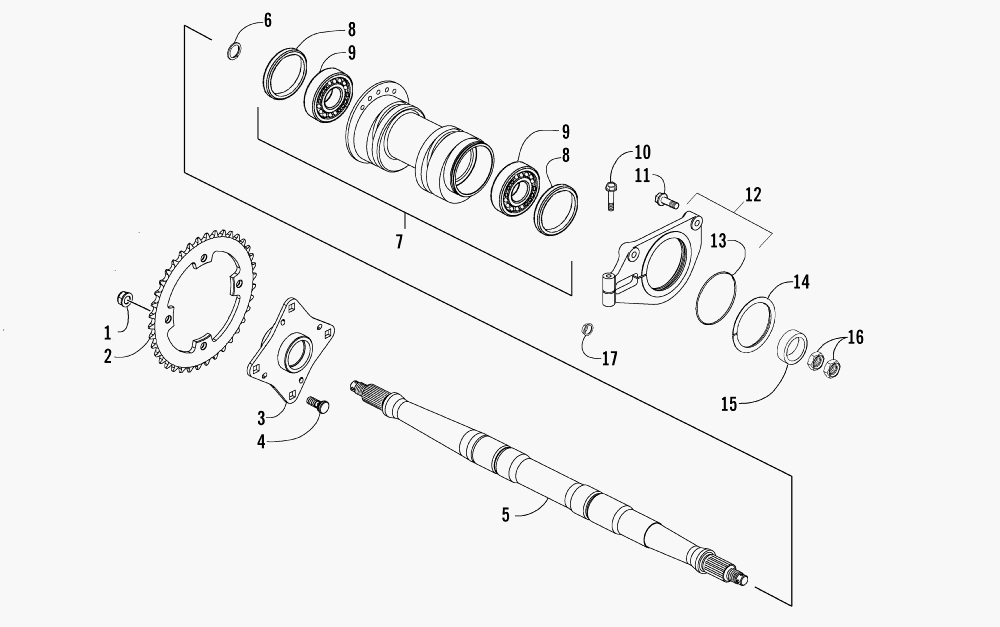

REAR AXLE ASSEMBLY для Arctic Cat DVX 250 (BLACK/ARCTIC CAT GREEN) [A2006KSE2BUSE] - 2006 года выпуска
-
№АртикулНазвание
-
13303-265 NUTNUT
-
23304-291 SPROCKET, FINAL - DRIVENSPROCKET, FINAL - DRIVEN
-
33304-292 FLANGE, FINAL SPROCKETFLANGE, FINAL SPROCKET
-
43304-403 BOLTBOLT
-
53304-293 AXLE, WHEEL - REARAXLE, WHEEL - REAR
-
63304-415 RING, SNAPRING, SNAP
-
73304-294 HUB, REAR - ASSEMBLY (INC. 8-9)HUB, REAR - ASSEMBLY (INC. 8-9)
-
83304-424 ...SEAL, OIL...SEAL, OIL
-
93304-688 ...BEARING...BEARING
-
103304-518 BOLTBOLT
-
113304-687 BOLTBOLT
-
123304-305 BRACKET, CALIPER - ASSEMBLY (INC. 13)BRACKET, CALIPER - ASSEMBLY (INC. 13)
-
133305-259 ...O-RING...O-RING
-
143304-519 RING, RETAININGRING, RETAINING
-
153304-343 COLLARCOLLAR
-
163304-342 NUTNUT
-
173304-304 COLLARCOLLAR
