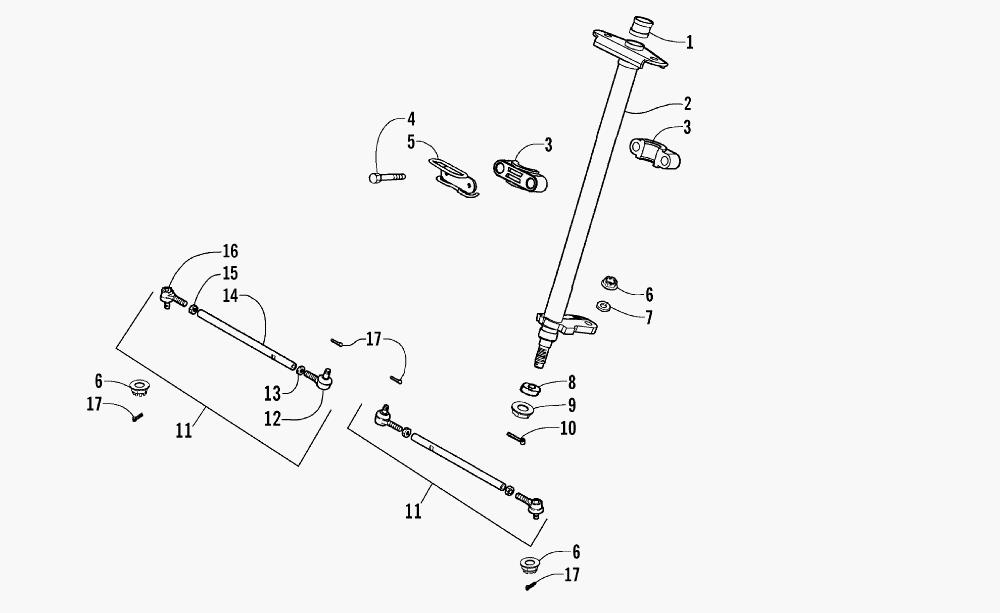

STEERING POST ASSEMBLY для Arctic Cat DVX 250 (BLACK/ARCTIC CAT GREEN) [A2006KSE2BUSE] - 2006 года выпуска
-
№АртикулНазвание
-
13303-963 BUSHING, SLEEVEBUSHING, SLEEVE
-
23303-957 POST, STEERINGPOST, STEERING
-
33303-961 BLOCK, MOUNTING - STEERING POSTBLOCK, MOUNTING - STEERING POST
-
43304-649 SCREW, CAPSCREW, CAP
-
53303-962 CLAMP, MOUNTING BLOCKCLAMP, MOUNTING BLOCK
-
63304-130 NUT, CASTLENUT, CASTLE
-
73304-136 WASHERWASHER
-
83303-960 COLLAR, STEERING POST - LOWERCOLLAR, STEERING POST - LOWER
-
93304-032 NUT, FLANGENUT, FLANGE
-
103303-339 PIN, COTTERPIN, COTTER
-
113303-969 TIE ROD - ASSEMBLY (INC. 12-16)TIE ROD - ASSEMBLY (INC. 12-16)
-
123303-973 ...BALL JOINT, TIE ROD - LEFT...BALL JOINT, TIE ROD - LEFT
-
133303-327 ...NUT, HEX - LEFT...NUT, HEX - LEFT
-
143304-376 ...TUBE, TIE ROD...TUBE, TIE ROD
-
153303-326 ...NUT, HEX - RIGHT...NUT, HEX - RIGHT
-
163303-971 ...BALL JOINT, TIE ROD - RIGHT...BALL JOINT, TIE ROD - RIGHT
-
173304-143 PIN, COTTERPIN, COTTER
