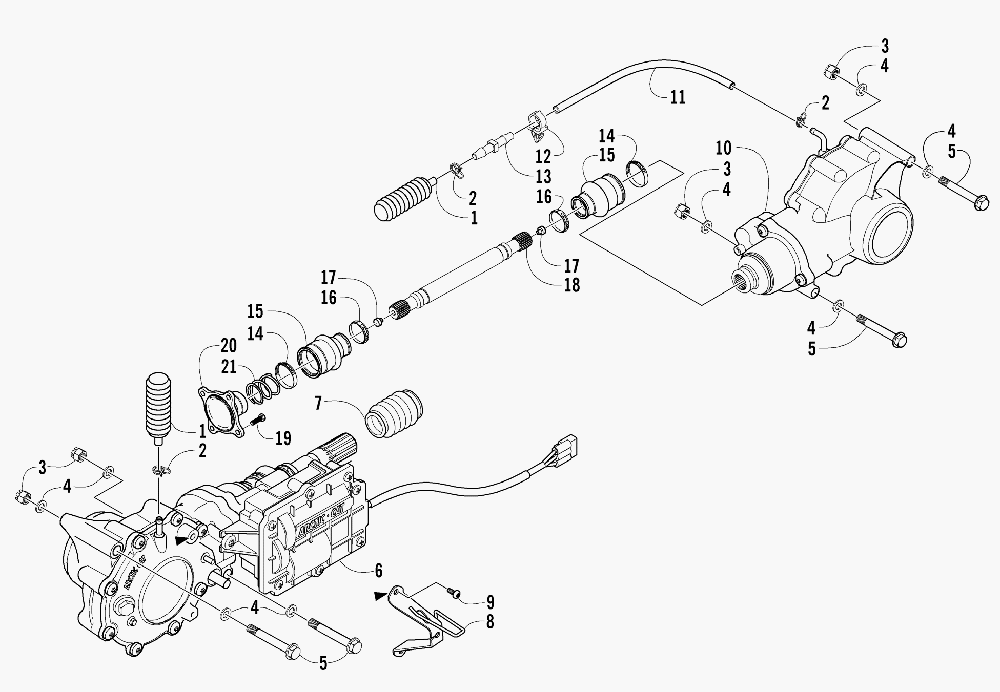

DRIVE TRAIN ASSEMBLY для Arctic Cat 500 FIS MAN (RED) [A2007IBM4AUSR] - 2007 года выпуска
-
№АртикулНазвание
-
10402-147 BLADDER, GEARCASEBLADDER, GEARCASE
-
20423-315 CLAMP, FITTINGCLAMP, FITTING
-
38428-002 NUT, LOCK (M10-1.2)NUT, LOCK (M10-1.2)
-
40423-426 WASHER, FLAT (.438X.875X.125)WASHER, FLAT (.438X.875X.125)
-
50423-404 SCREW, CAP (M10X1.25X120 CL1)SCREW, CAP (M10X1.25X120 CL1)
-
61502-089 GEARCASE, FRONTGEARCASE, FRONT
-
70402-966 BOOT, SHAFTBOOT, SHAFT
-
80502-500 PLATE, CABLE (BLACK)PLATE, CABLE (BLACK)
-
90423-396 SCREW, SELF-TAPPING (M6-1.0X15)SCREW, SELF-TAPPING (M6-1.0X15)
-
101502-079 GEARCASE, REARGEARCASE, REAR
-
110410-048 HOSE, VENT (25')HOSE, VENT (25')
-
120623-101 CLIP, ROUTING - SNAP-INCLIP, ROUTING - SNAP-IN
-
130470-462 FITTING, VENT (3/16X3/16)FITTING, VENT (3/16X3/16)
-
140423-393 CLAMP, BOOTCLAMP, BOOT
-
150402-985 BOOTBOOT
-
160423-411 CLAMP, BOOT (30MM)CLAMP, BOOT (30MM)
-
170673-618 BUMPER, PROPELLER SHAFTBUMPER, PROPELLER SHAFT
-
181402-234 SHAFT, PROPELLERSHAFT, PROPELLER
-
198408-820 SCREW, CAP (M8X1.25X20 CL8.8)SCREW, CAP (M8X1.25X20 CL8.8)
-
200402-950 FLANGE, OUTPUTFLANGE, OUTPUT
-
211402-026 SPRINGSPRING
