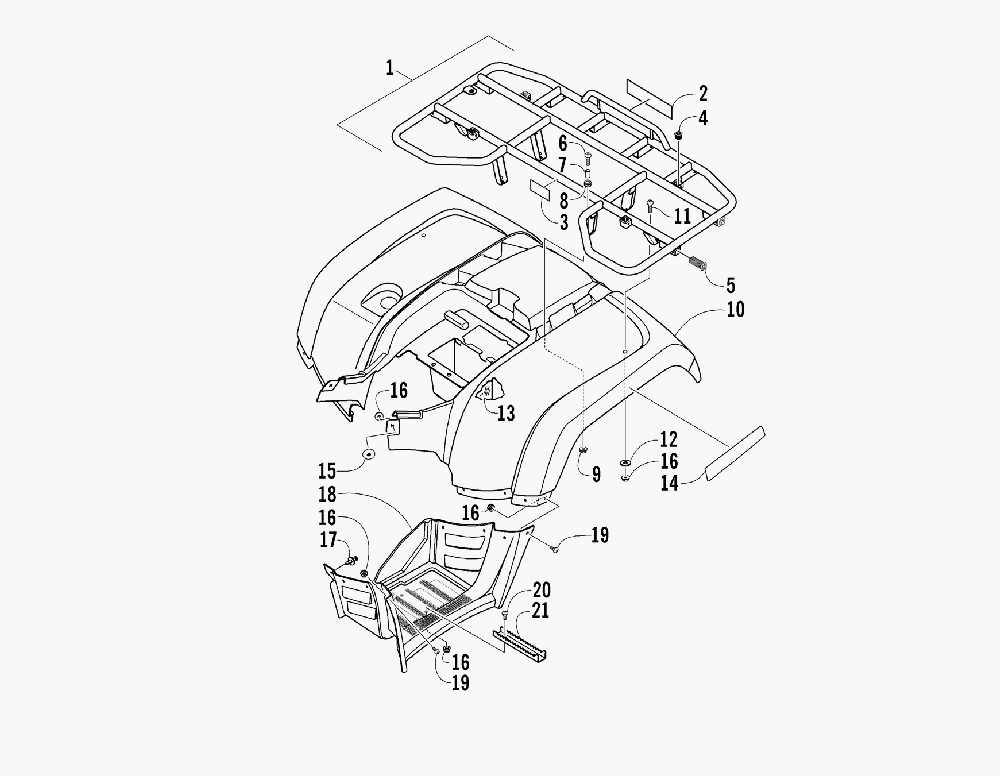

REAR BODY PANEL ASSEMBLY для Arctic Cat 500 FIS MAN (RED) [A2007IBM4AUSR] - 2007 года выпуска
-
№АртикулНазвание
-
10541-337 RACK - REAR - ASSEMBLY (INC. 2-5)RACK - REAR - ASSEMBLY (INC. 2-5)
-
20411-814 ...DECAL, "ARCTIC CAT"...DECAL, "ARCTIC CAT"
-
30411-648 ...DECAL, WARNING - REAR RACK LOAD...DECAL, WARNING - REAR RACK LOAD
-
40441-592 ...BUSHING, RACK...BUSHING, RACK
-
52406-014 ...BUSHING, RACK...BUSHING, RACK
-
68410-830 SCREW, MACHINE (M8X1.25X30 CL8.8)SCREW, MACHINE (M8X1.25X30 CL8.8)
-
70423-669 SPACER, STEELSPACER, STEEL
-
80423-465 GROMMET, RUBBER (12.7X23.8125)GROMMET, RUBBER (12.7X23.8125)
-
98432-802 NUT, NYLOCKNUT, NYLOCK
-
102506-335 PANEL, FENDER - REAR (RED) (INC. 14)PANEL, FENDER - REAR (RED) (INC. 14)
-
102506-337 PANEL, FENDER - REAR (MARSH GREEN) (FOR GREEN) (INC. 14)PANEL, FENDER - REAR (MARSH GREEN) (FOR GREEN) (INC. 14)
-
102506-336 PANEL, FENDER - REAR (LIME GREEN) (FOR CAT GREEN) (INC. 14)PANEL, FENDER - REAR (LIME GREEN) (FOR CAT GREEN) (INC. 14)
-
110423-654 SCREW, SHOULDER (M6-1.0 X 18)SCREW, SHOULDER (M6-1.0 X 18)
-
128050-222 WASHER, FLAT (1/4 X .734 X .063)WASHER, FLAT (1/4 X .734 X .063)
-
130470-658 SHIELD, HEAT BATTERY BOXSHIELD, HEAT BATTERY BOX
-
140411-820 DECAL, REFLECTOR - REAR - RIGHTDECAL, REFLECTOR - REAR - RIGHT
-
140411-821 DECAL, REFLECTOR - REAR - LEFTDECAL, REFLECTOR - REAR - LEFT
-
150423-101 SCREW, BODY (6MM)SCREW, BODY (6MM)
-
160423-540 NUT, LOCKNUT, LOCK
-
170623-362 RIVET, REINSTALLABLERIVET, REINSTALLABLE
-
182406-424 FOOTWELL - RIGHTFOOTWELL - RIGHT
-
182406-425 FOOTWELL - LEFTFOOTWELL - LEFT
-
190423-419 SCREW, MACHINE (M6-1.0 X 16 B)SCREW, MACHINE (M6-1.0 X 16 B)
-
200423-355 SCREW, SHOULDER (M6-1.0 X 18-BL)SCREW, SHOULDER (M6-1.0 X 18-BL)
-
211506-125 FOOTPEG, BLACKFOOTPEG, BLACK
