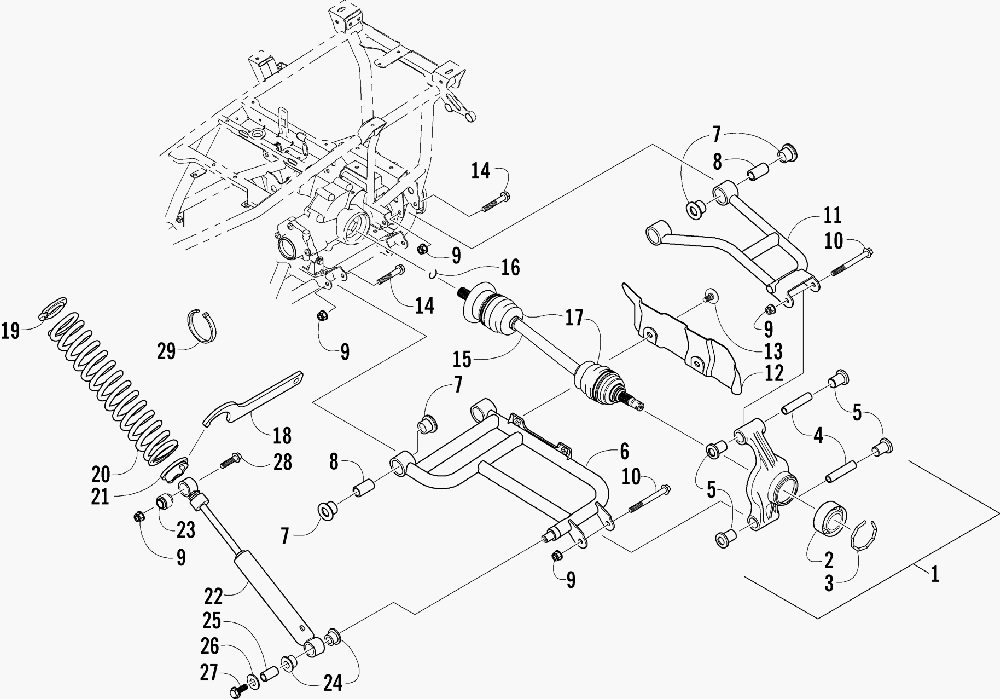

REAR SUSPENSION ASSEMBLY для Arctic Cat 500 FIS MAN (RED) [A2007IBM4AUSR] - 2007 года выпуска
-
№АртикулНазвание
-
10504-372 KNUCKLE, RIGHT REAR - ASSEMBLY (INC. 2-5)KNUCKLE, RIGHT REAR - ASSEMBLY (INC. 2-5)
-
10504-373 KNUCKLE, LEFT REAR - ASSEMBLY (INC. 2-5)KNUCKLE, LEFT REAR - ASSEMBLY (INC. 2-5)
-
21402-027 ...BEARING, WHEEL HUB...BEARING, WHEEL HUB
-
30423-423 ...RING, RETAINING...RING, RETAINING
-
40403-038 ...COLLAR, SUSPENSION BUSHING...COLLAR, SUSPENSION BUSHING
-
50403-032 ...BUSHING, SUSPENSION...BUSHING, SUSPENSION
-
60504-440 A-ARM, REAR - LOWER RIGHT - PLATINUM (INC. 7-8) (FOR RED) (FOR CAT GREEN)A-ARM, REAR - LOWER RIGHT - PLATINUM (INC. 7-8) (FOR RED) (FOR CAT GREEN)
-
60504-441 A-ARM, REAR - LOWER LEFT - PLATINUM (INC. 7-8) (FOR RED) (FOR CAT GREEN)A-ARM, REAR - LOWER LEFT - PLATINUM (INC. 7-8) (FOR RED) (FOR CAT GREEN)
-
60504-438 A-ARM, REAR - LOWER RIGHT - BLACK (INC. 7-8) (GREEN)A-ARM, REAR - LOWER RIGHT - BLACK (INC. 7-8) (GREEN)
-
60504-439 A-ARM, REAR - LOWER LEFT - BLACK (INC. 7-8) (GREEN)A-ARM, REAR - LOWER LEFT - BLACK (INC. 7-8) (GREEN)
-
70403-115 ...BUSHING, SUSPENSION...BUSHING, SUSPENSION
-
80403-114 ...SLEEVE, SUSPENSION BUSHING...SLEEVE, SUSPENSION BUSHING
-
98428-002 NUT, LOCK (M10-1.2)NUT, LOCK (M10-1.2)
-
108409-000 SCREW, CAP (M10-1.25 X100 Z)SCREW, CAP (M10-1.25 X100 Z)
-
110504-476 A-ARM, REAR - UPPER RIGHT - PLATINUM (INC. 7-8) (FOR RED) (FOR CAT GREEN)A-ARM, REAR - UPPER RIGHT - PLATINUM (INC. 7-8) (FOR RED) (FOR CAT GREEN)
-
110504-477 A-ARM, REAR - UPPER LEFT - PLATINUM (INC. 7-8) (FOR RED) (FOR CAT GREEN)A-ARM, REAR - UPPER LEFT - PLATINUM (INC. 7-8) (FOR RED) (FOR CAT GREEN)
-
110504-470 A-ARM, REAR - UPPER RIGHT - BLACK (INC. 7-8) (GREEN)A-ARM, REAR - UPPER RIGHT - BLACK (INC. 7-8) (GREEN)
-
110504-471 A-ARM, REAR - UPPER LEFT - BLACK (INC. 7-8) (GREEN)A-ARM, REAR - UPPER LEFT - BLACK (INC. 7-8) (GREEN)
-
120441-754 GUARD, BOOT -REAR- RIGHT (RED)GUARD, BOOT -REAR- RIGHT (RED)
-
120441-755 GUARD, BOOT -REAR- LEFT (RED)GUARD, BOOT -REAR- LEFT (RED)
-
121441-004 GUARD, BOOT - RIGHT (GREEN)GUARD, BOOT - RIGHT (GREEN)
-
121441-005 GUARD, BOOT - LEFT (GREEN)GUARD, BOOT - LEFT (GREEN)
-
120441-758 GUARD, BOOT - RIGHT (CAT GREEN)GUARD, BOOT - RIGHT (CAT GREEN)
-
120441-759 GUARD, BOOT - LEFT (CAT GREEN)GUARD, BOOT - LEFT (CAT GREEN)
-
130423-545 SCREW,BODY-SELF TAP (#12 X 3/4)SCREW,BODY-SELF TAP (#12 X 3/4)
-
148409-075 SCREW, CAP (M10X1.25X75 CL10)SCREW, CAP (M10X1.25X75 CL10)
-
150502-811 AXLE, DRIVE (INC. 16-17)AXLE, DRIVE (INC. 16-17)
-
160441-893 ...CLIP, RETAINING (28X27)...CLIP, RETAINING (28X27)
-
170436-276 ...REPAIR KIT, BOOT - REAR AXLE...REPAIR KIT, BOOT - REAR AXLE
-
180441-587 WRENCH, SPANNER (66MM)WRENCH, SPANNER (66MM)
-
191603-889 RETAINER, SPRINGRETAINER, SPRING
-
200404-113 SPRING, SUSPENSION - PLATINUM (FOR RED) (FOR CAT GREEN) 150LB/IN X13)SPRING, SUSPENSION - PLATINUM (FOR RED) (FOR CAT GREEN) 150LB/IN X13)
-
200404-112 SPRING, SUSPENSION - BLACK (GREEN) (150LB/IN X13)SPRING, SUSPENSION - BLACK (GREEN) (150LB/IN X13)
-
210404-057 CAM, SPRING ADJUSTERCAM, SPRING ADJUSTER
-
220404-150 SHOCK ABSORBER - REAR (INC. 23-25)SHOCK ABSORBER - REAR (INC. 23-25)
-
230403-182 ...BUSHING, DOUBLE-BONDED...BUSHING, DOUBLE-BONDED
-
240603-955 ...BUSHING, SHOCK ABSORBER (.045 FLANGE)...BUSHING, SHOCK ABSORBER (.045 FLANGE)
-
251603-219 ...SLEEVE, SHOCK (.790)...SLEEVE, SHOCK (.790)
-
260423-087 WASHER (5/16 X 1 1/8-1/16 -Z & Y)WASHER (5/16 X 1 1/8-1/16 -Z & Y)
-
278408-820 SCREW, CAP (M8X1.25X20 CL8.8)SCREW, CAP (M8X1.25X20 CL8.8)
-
288409-040 SCREW, CAP - RIGHT (M10X1.25X40 CL10)SCREW, CAP - RIGHT (M10X1.25X40 CL10)
-
288409-050 SCREW, CAP - LEFT (M10X1.25X50 CL10)SCREW, CAP - LEFT (M10X1.25X50 CL10)
-
290123-788 CABLE TIE (8.5/7.5/7.4)CABLE TIE (8.5/7.5/7.4)
