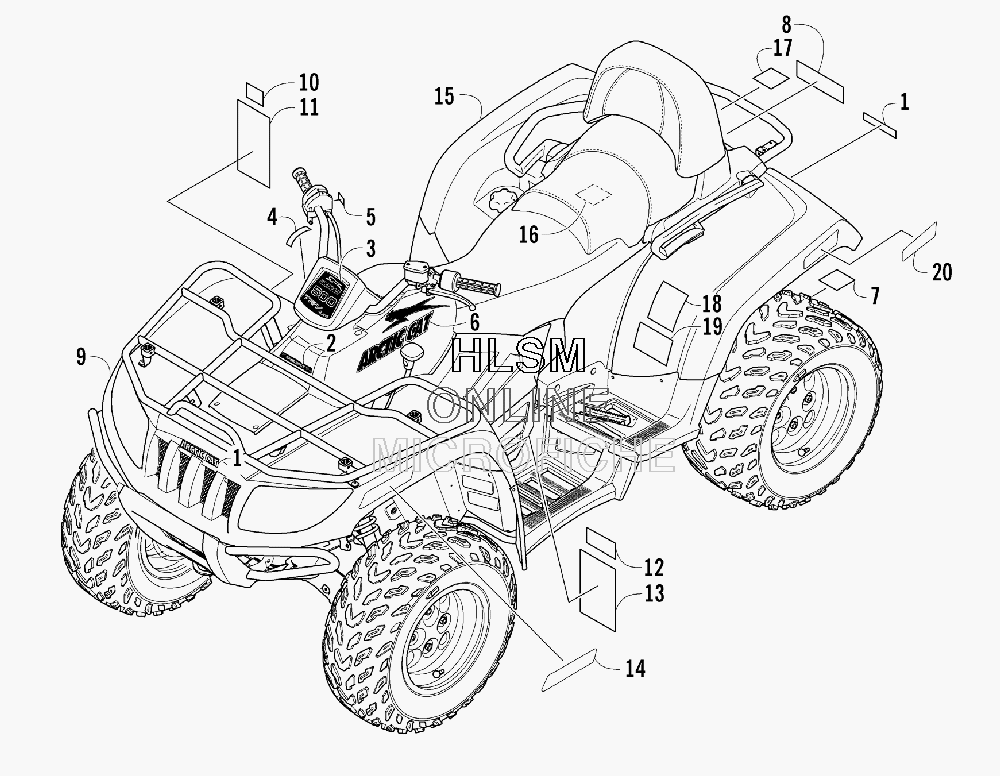

BODY PANELS AND DECALS для Arctic Cat 500 TRV (GREEN) [A2008TBM4BUSG] - 2008 года выпуска
-
№АртикулНазвание
-
11411-725 DECAL, FRONT/REAR (BLACK OUTLINE)DECAL, FRONT/REAR (BLACK OUTLINE)
-
21411-050 DECAL, "SPEEDRACK"DECAL, "SPEEDRACK"
-
31411-695 DECAL, INSTRUMENT PODDECAL, INSTRUMENT POD
-
40411-426 DECAL, WARNING - CLUTCH COVERDECAL, WARNING - CLUTCH COVER
-
50411-966 DECAL, WARNING - DIFFERENTIAL LOCKDECAL, WARNING - DIFFERENTIAL LOCK
-
61411-634 DECAL, SIDE - UPPER RIGHTDECAL, SIDE - UPPER RIGHT
-
61411-635 DECAL, SIDE - UPPER LEFTDECAL, SIDE - UPPER LEFT
-
71411-077 DECAL, WARNING - TOWING (1050 LB)DECAL, WARNING - TOWING (1050 LB)
-
80411-814 DECAL, "ARCTIC CAT" - WHITEDECAL, "ARCTIC CAT" - WHITE
-
90518-006 PANEL, FENDER - ASSEMBLY - FRONT - RED (INC. 10-14) (RED)PANEL, FENDER - ASSEMBLY - FRONT - RED (INC. 10-14) (RED)
-
90518-008 PANEL, FENDER - ASSEMBLY - FRONT - GREEN (INC. 10-14) (GREEN)PANEL, FENDER - ASSEMBLY - FRONT - GREEN (INC. 10-14) (GREEN)
-
90518-007 PANEL, FENDER - ASSEMBLY - FRONT - CAT GREEN (INC. 10-14 (CAT GREEN)PANEL, FENDER - ASSEMBLY - FRONT - CAT GREEN (INC. 10-14 (CAT GREEN)
-
100411-894 ...DECAL, WARNING - HILL...DECAL, WARNING - HILL
-
110411-666 ...DECAL, WARNING - REVERSE/PRE-RIDE...DECAL, WARNING - REVERSE/PRE-RIDE
-
121411-574 ...DECAL, WARNING - OFF-ROAD ONLY...DECAL, WARNING - OFF-ROAD ONLY
-
130411-753 ...DECAL, WARNING - AGE/GENERAL...DECAL, WARNING - AGE/GENERAL
-
140411-818 ...DECAL, REFLECTOR - FRONT - RIGHT...DECAL, REFLECTOR - FRONT - RIGHT
-
140411-819 ...DECAL, REFLECTOR - FRONT - LEFT...DECAL, REFLECTOR - FRONT - LEFT
-
152506-708 PANEL, FENDER - ASSEMBLY - REAR - RED (INC. 16-20 AND ONE NO. 1) (RED)PANEL, FENDER - ASSEMBLY - REAR - RED (INC. 16-20 AND ONE NO. 1) (RED)
-
152506-709 PANEL, FENDER - ASSEMBLY - REAR - GREEN (INC. 16-20 AND ONE NO. 1) (GREEN)PANEL, FENDER - ASSEMBLY - REAR - GREEN (INC. 16-20 AND ONE NO. 1) (GREEN)
-
152506-710 PANEL, FENDER - ASSEMBLY - REAR - CAT GREEN (INC. 16-20 AND ONE NO. 1) (CAT GREEN)PANEL, FENDER - ASSEMBLY - REAR - CAT GREEN (INC. 16-20 AND ONE NO. 1) (CAT GREEN)
-
161411-269 ...DECAL, WARNING - PASSENGER...DECAL, WARNING - PASSENGER
-
171411-251 ...DECAL, WARNING - SEAT/PASSENGER...DECAL, WARNING - SEAT/PASSENGER
-
180411-833 ...DECAL, PASSENGER...DECAL, PASSENGER
-
190411-832 ...DECAL, WARNING - TIRE PRESSURE...DECAL, WARNING - TIRE PRESSURE
-
201411-592 ...DECAL, REFLECTOR - REAR - RIGHT...DECAL, REFLECTOR - REAR - RIGHT
-
201411-593 ...DECAL, REFLECTOR - REAR - LEFT...DECAL, REFLECTOR - REAR - LEFT
