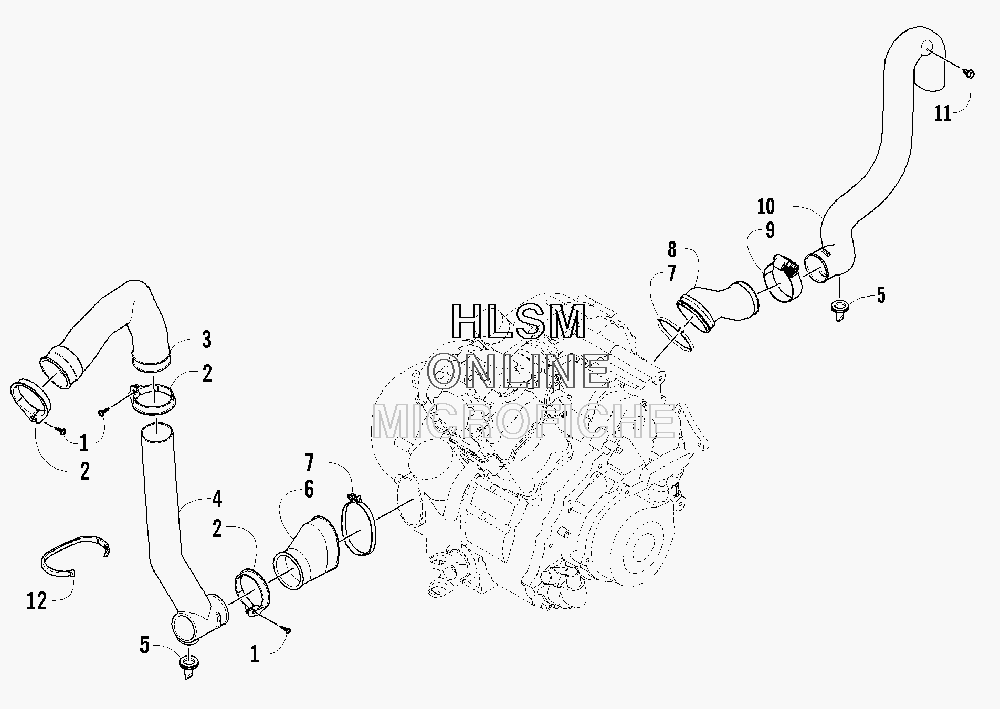

CASE/BELT COOLING ASSEMBLY для Arctic Cat 500 TRV (GREEN) [A2008TBM4BUSG] - 2008 года выпуска
-
№АртикулНазвание
-
10423-342 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
20423-551 CLAMP, BOOTCLAMP, BOOT
-
30413-092 BOOT, AIR-INBOOT, AIR-IN
-
40513-010 DUCT, BELT COOLING - FRONTDUCT, BELT COOLING - FRONT
-
50470-442 VALVE, DRAINVALVE, DRAIN
-
60413-049 BOOT, DUCT - FRONTBOOT, DUCT - FRONT
-
73402-449 CLAMP, BOOTCLAMP, BOOT
-
80413-055 BOOT, DUCT - REARBOOT, DUCT - REAR
-
90423-380 CLAMP, DUCTCLAMP, DUCT
-
100413-106 DUCT, BELT COOLING - REARDUCT, BELT COOLING - REAR
-
110623-301 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
120123-903 CABLE TIE - 11.5 IN.CABLE TIE - 11.5 IN.
-
120123-788 CABLE TIE - 8.5 IN.CABLE TIE - 8.5 IN.
