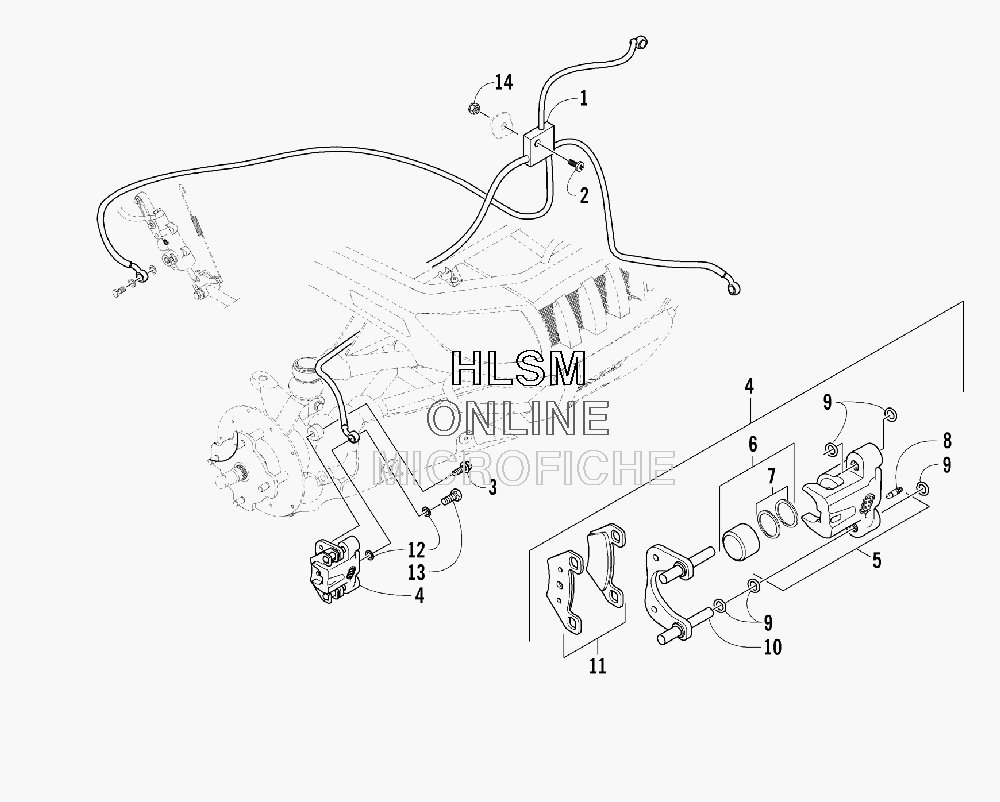

HYDRAULIC BRAKE ASSEMBLY для Arctic Cat 500 TRV (GREEN) [A2008TBM4BUSG] - 2008 года выпуска
-
№АртикулНазвание
-
11502-015 HOSE, BRAKE - ASSEMBLYHOSE, BRAKE - ASSEMBLY
-
28476-625 SCREW, CAPSCREW, CAP
-
38408-821 SCREW, CAPSCREW, CAP
-
40502-878 KIT-CALIPER,FULL ASSY FRONT (INC. 5-11)KIT-CALIPER,FULL ASSY FRONT (INC. 5-11)
-
40502-879 KIT-CALIPER,FULL ASSY FRONT (INC. 5-11)KIT-CALIPER,FULL ASSY FRONT (INC. 5-11)
-
50502-603 KIT-HOUSING,PISTONS,SEALS,BLEADER - RIGHT FRONT (INC. 6-8)KIT-HOUSING,PISTONS,SEALS,BLEADER - RIGHT FRONT (INC. 6-8)
-
50502-611 KIT-HOUSING,PISTONS,SEALS,BLEADER - LEFT FRONT (INC. 6-8)KIT-HOUSING,PISTONS,SEALS,BLEADER - LEFT FRONT (INC. 6-8)
-
60502-606 ......PISTON/SEAL SET (INC. 7)......PISTON/SEAL SET (INC. 7)
-
70502-607 ......SEAL SET......SEAL SET
-
80502-609 ......VALVE, BLEED......VALVE, BLEED
-
90502-608 ...O-RING, GUIDE - SET...O-RING, GUIDE - SET
-
100502-605 ...BRACKET ASSEMBLY...BRACKET ASSEMBLY
-
110502-875 ...KIT-PAD, BRAKE-SET (TYPE 97)...KIT-PAD, BRAKE-SET (TYPE 97)
-
120423-178 WASHER, CRUSHWASHER, CRUSH
-
130423-413 BOLT, BANJO-FITTINGBOLT, BANJO-FITTING
-
140623-038 NUT, LOCKNUT, LOCK
