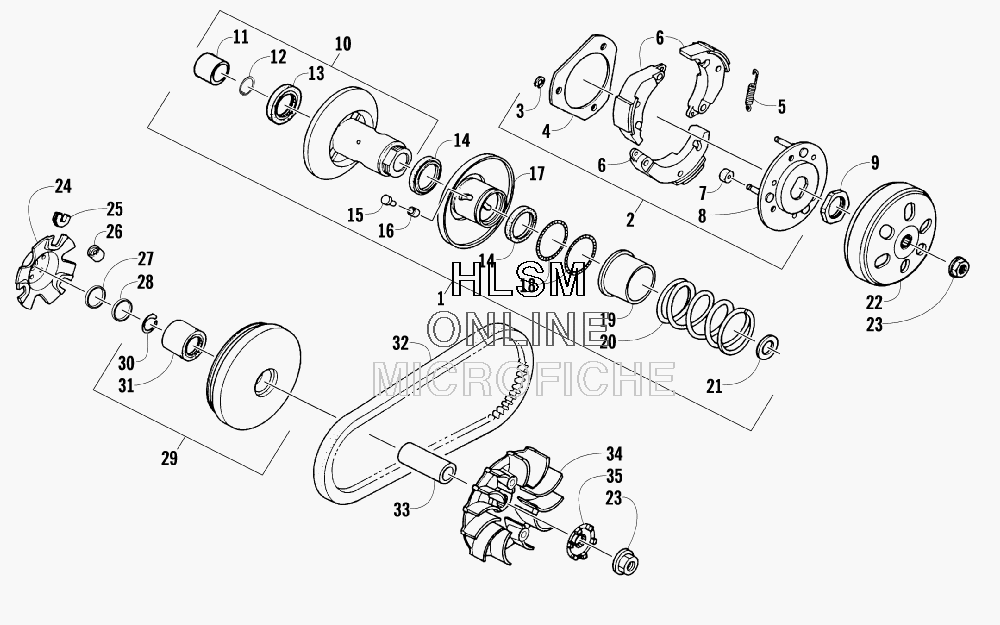

CLUTCH ASSEMBLY для Arctic Cat 150 (RED) [A2009KUC2BUSR] - 2009 года выпуска
-
№АртикулНазвание
-
13304-986 PULLEY, DRIVEN - ASSEMBLY (INC. 2-21)PULLEY, DRIVEN - ASSEMBLY (INC. 2-21)
-
23304-981 ...CLUTCH, CENTRIFUGAL - ASSEMBLY (INC. 3-8)...CLUTCH, CENTRIFUGAL - ASSEMBLY (INC. 3-8)
-
33304-054 ...RING, RETAINING...RING, RETAINING
-
43304-983 ...PLATE, CLUTCH...PLATE, CLUTCH
-
53304-984 ...SPRING...SPRING
-
63304-785 ...WEIGHT, CLUTCH...WEIGHT, CLUTCH
-
73303-780 ...ROLLER...ROLLER
-
83304-982 ...PLATE, CLUTCH...PLATE, CLUTCH
-
93304-994 ...NUT...NUT
-
103304-988 ...FACE, DRIVEN - FIXED (INC. 11-13)...FACE, DRIVEN - FIXED (INC. 11-13)
-
113304-996 ...BEARING...BEARING
-
123304-149 ...RING, RETAINING...RING, RETAINING
-
133304-070 ...BEARING...BEARING
-
143304-997 ...SEAL...SEAL
-
153304-990 ...PIN, GUIDE...PIN, GUIDE
-
163303-787 ...GUIDE, ROLLER...GUIDE, ROLLER
-
173304-989 ...FACE, DRIVEN - MOVABLE...FACE, DRIVEN - MOVABLE
-
183304-998 ...O-RING...O-RING
-
193303-789 ...SLEEVE, SPRING...SLEEVE, SPRING
-
203304-991 ...SPRING...SPRING
-
213304-995 ...WASHER, THRUST...WASHER, THRUST
-
223304-973 CLUTCH, OUTERCLUTCH, OUTER
-
233303-334 NUTNUT
-
243304-979 PLATE, RAMPPLATE, RAMP
-
253304-980 SLIDESLIDE
-
263304-978 ROLLERROLLER
-
273305-744 COLLARCOLLAR
-
283305-745 COLLARCOLLAR
-
293304-976 FACE, DRIVE - MOVABLE (INC. 30-31)FACE, DRIVE - MOVABLE (INC. 30-31)
-
303304-160 ...RING, RETAINING...RING, RETAINING
-
313304-977 ...SLEEVE...SLEEVE
-
323304-987 BELT, DRIVEBELT, DRIVE
-
333304-975 SLEEVESLEEVE
-
343304-974 FACE, DRIVEFACE, DRIVE
-
353304-993 RATCHET, KICK STARTERRATCHET, KICK STARTER
