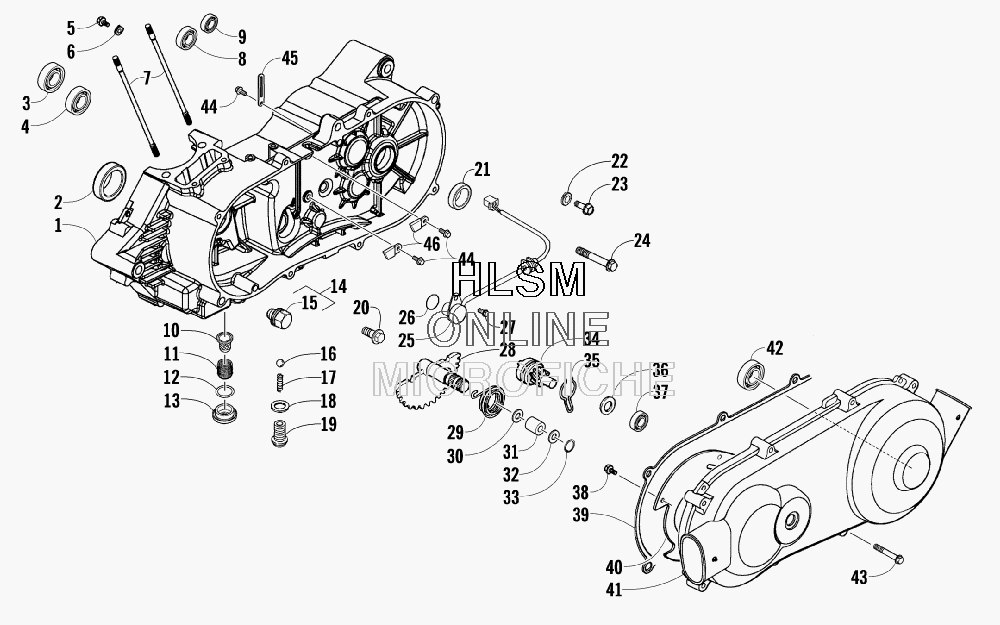

LEFT CRANKCASE AND COVER ASSEMBLY для Arctic Cat 150 (RED) [A2009KUC2BUSR] - 2009 года выпуска
-
№АртикулНазвание
-
13304-888 CRANKCASE - LEFTCRANKCASE - LEFT
-
23304-901 SEAL, OILSEAL, OIL
-
33304-197 BEARINGBEARING
-
43304-905 BEARINGBEARING
-
53004-005 SCREW, CAPSCREW, CAP
-
63304-039 RETAINER, BEARINGRETAINER, BEARING
-
73304-008 BOLT, STUDBOLT, STUD
-
83304-907 BEARINGBEARING
-
93303-465 BRG BALL RADIAL 6204/20*47*14BRG BALL RADIAL 6204/20*47*14
-
103303-691 SCREEN, FILTERSCREEN, FILTER
-
113303-692 SPRINGSPRING
-
123304-096 O-RINGO-RING
-
133303-021 CAP, INSPECTIONCAP, INSPECTION
-
143304-052 PLUG, DRAIN (INC. 15)PLUG, DRAIN (INC. 15)
-
163304-205 BEARING, BALLBEARING, BALL
-
173304-063 SPRING, SEATSPRING, SEAT
-
183304-021 WASHERWASHER
-
193304-109 SCREW, SEATSCREW, SEAT
-
203304-435 SCREW, CAPSCREW, CAP
-
213303-297 SEAL, OILSEAL, OIL
-
223303-591 WASHERWASHER
-
233303-365 BOLT FLANGE 8*12BOLT FLANGE 8*12
-
243304-903 BOLT FLANGE SH 6*40BOLT FLANGE SH 6*40
-
253304-895 SWITCH, GEAR SHIFT (INC. 26)SWITCH, GEAR SHIFT (INC. 26)
-
263305-776 ...O-RING...O-RING
-
273304-187 SCREW, CAPSCREW, CAP
-
283304-894 GEAR, KICK STARTGEAR, KICK START
-
293303-122 SPRINGSPRING
-
303303-121 WASHERWASHER
-
313303-120 SPACERSPACER
-
323305-777 WASHERWASHER
-
333303-345 RING, RETAININGRING, RETAINING
-
343304-893 GEAR, KICK START DRIVEGEAR, KICK START DRIVE
-
353303-117 SPRINGSPRING
-
363303-272 WASHER, THRUSTWASHER, THRUST
-
373304-900 BEARINGBEARING
-
383303-391 SCREW, CAPSCREW, CAP
-
393304-892 GASKETGASKET
-
403304-891 PLATE, COVERPLATE, COVER
-
413304-890 COVER, CRANKCASECOVER, CRANKCASE
-
423304-897 BEARINGBEARING
-
433304-004 BOLT FLANGE SHF 6*40BOLT FLANGE SHF 6*40
-
443303-381 BOLT FLANGE SH 6*12BOLT FLANGE SH 6*12
-
453304-158 CLAMP, WIRECLAMP, WIRE
-
463303-843 RETAINER, WIRERETAINER, WIRE
