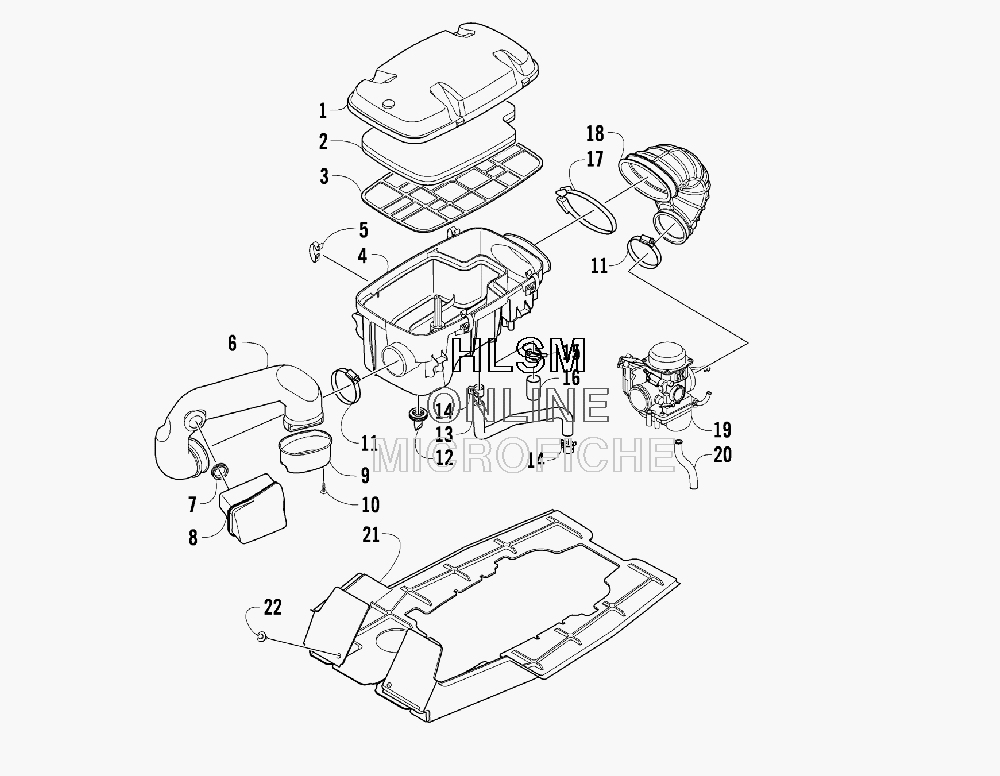

AIR INTAKE ASSEMBLY для Arctic Cat 650 H1 TRV (CAT GREEN) [A2009TBS4BUSZ] - 2009 года выпуска
-
№АртикулНазвание
-
10470-877 COVER, AIR INTAKECOVER, AIR INTAKE
-
20470-558 FILTER, AIRFILTER, AIR
-
30470-560 SCREEN, AIR FILTERSCREEN, AIR FILTER
-
40470-675 HOUSING, AIR INTAKEHOUSING, AIR INTAKE
-
50423-455 CLIP, SPRINGCLIP, SPRING
-
60470-749 DUCT, AIR INTAKE - ENGINEDUCT, AIR INTAKE - ENGINE
-
70423-763 GROMMET, AIR INTAKEGROMMET, AIR INTAKE
-
80570-215 RESONATORRESONATOR
-
90470-729 BOOT, AIR INTAKEBOOT, AIR INTAKE
-
100423-342 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
110423-019 CLAMPCLAMP
-
120470-442 VALVE, DRAINVALVE, DRAIN
-
130410-172 HOSE, VENT - CRANKCASEHOSE, VENT - CRANKCASE
-
141623-281 CLAMP, HOSE-SPRING (12W X 18)CLAMP, HOSE-SPRING (12W X 18)
-
151623-287 CLAMP, HOSE-SPRING (12W X 24)CLAMP, HOSE-SPRING (12W X 24)
-
160423-766 CAP, DRAINCAP, DRAIN
-
170423-554 CLAMPCLAMP
-
180470-525 BOOT, CARBURETORBOOT, CARBURETOR
-
190470-741 CARB, CVK 36-AE (W/PUMPER) (650 H1)CARB, CVK 36-AE (W/PUMPER) (650 H1)
-
200510-592 HOSE, DRAINHOSE, DRAIN
-
212406-604 PANEL, SHIELDPANEL, SHIELD
-
220623-362 RIVET, PLASTIC-REINSTALLABLERIVET, PLASTIC-REINSTALLABLE
