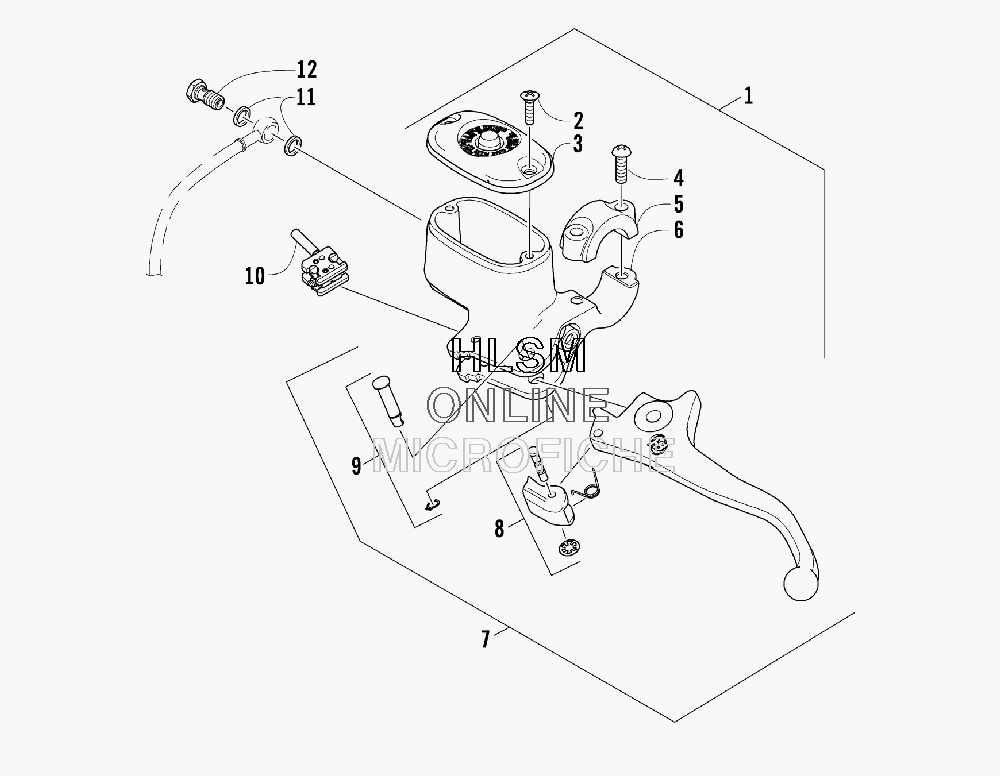

HYDRAULIC HAND BRAKE ASSEMBLY для Arctic Cat 650 H1 TRV (CAT GREEN) [A2009TBS4BUSZ] - 2009 года выпуска
-
№АртикулНазвание
-
10502-914 BRAKE ASSEMBLY (BLK) (INC. 2-10)BRAKE ASSEMBLY (BLK) (INC. 2-10)
-
20502-566 SCREW, MACHINE - KITSCREW, MACHINE - KIT
-
30502-868 COVER, RESERVOIRCOVER, RESERVOIR
-
40502-568 SCREW, MACHINE - KITSCREW, MACHINE - KIT
-
50502-869 CLAMP, MASTER CYLINDERCLAMP, MASTER CYLINDER
-
60502-704 MASTER CYLINDER ASSEMBLYMASTER CYLINDER ASSEMBLY
-
70502-866 LEVER ASSEMBLY - KIT (INC. 8-9)LEVER ASSEMBLY - KIT (INC. 8-9)
-
80502-867 LLOCK, BRAKE LEVER - KITLLOCK, BRAKE LEVER - KIT
-
90502-580 LLEVER PIN - KITLLEVER PIN - KIT
-
100502-564 SWITCH, BRAKESWITCH, BRAKE
-
110423-178 WASHER, CRUSHWASHER, CRUSH
-
120423-413 BOLT, BANJO-FITTINGBOLT, BANJO-FITTING
