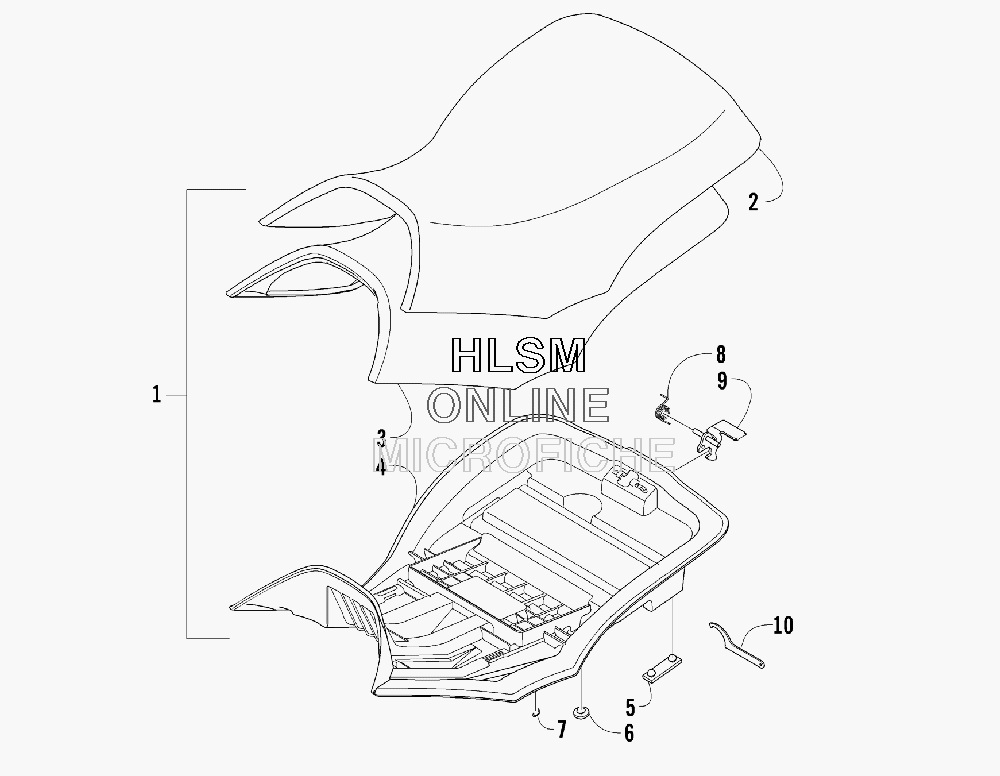

SEAT ASSEMBLY для Arctic Cat 650 H1 TRV (CAT GREEN) [A2009TBS4BUSZ] - 2009 года выпуска
-
№АртикулНазвание
-
12506-805 SEAT ASSEMBLY (INC. 2-9)SEAT ASSEMBLY (INC. 2-9)
-
22506-756 COVER, SEATCOVER, SEAT
-
32506-755 FOAM, SEATFOAM, SEAT
-
42406-144 BASE, SEAT - ASSEMBLY (INC. 5-6)BASE, SEAT - ASSEMBLY (INC. 5-6)
-
50406-879 BUMPER, SEAT - REARBUMPER, SEAT - REAR
-
60406-877 BUMPER, SEAT - FRONTBUMPER, SEAT - FRONT
-
70624-528 STAPLESTAPLE
-
81406-592 SPRING, SEAT LATCHSPRING, SEAT LATCH
-
91506-156 LATCH, SEATLATCH, SEAT
-
100441-587 WRENCH, SPANNER-66MMWRENCH, SPANNER-66MM
