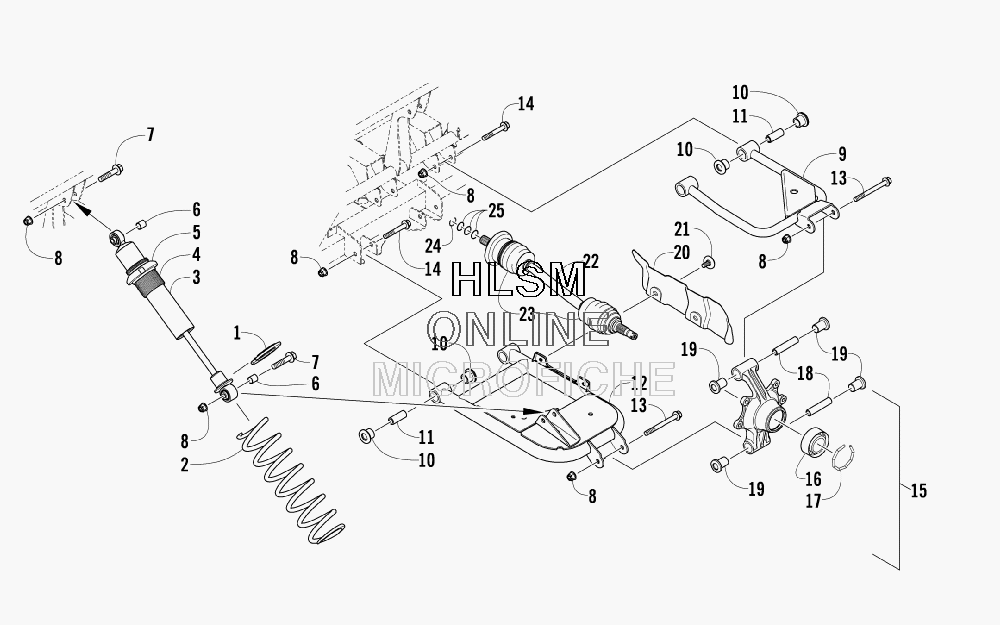

REAR SUSPENSION ASSEMBLY для Arctic Cat PROWLER XTZ - EURO (SUNSET ORANGE) [U2009P4W4EOSK] - 2009 года выпуска
-
№АртикулНазвание
-
10423-920 RETAINER, SPRINGRETAINER, SPRING
-
20504-612 SPRING, SUSPENSION - BLACKSPRING, SUSPENSION - BLACK
-
30404-182 SHOCK ABSORBER (INC. 4)SHOCK ABSORBER (INC. 4)
-
40423-917 SLEEVE, SHOCK - THREADEDSLEEVE, SHOCK - THREADED
-
50423-919 NUT, SPRING ADJUSTERNUT, SPRING ADJUSTER
-
60404-116 SLEEVESLEEVE
-
78409-060 SCREW, CAPSCREW, CAP
-
88428-002 NUT, LOCKNUT, LOCK
-
90504-598 A-ARM, REAR - UPPER RIGHT - BLACK (INC. 10-11)A-ARM, REAR - UPPER RIGHT - BLACK (INC. 10-11)
-
90504-599 A-ARM, REAR - UPPER LEFT - BLACK (INC. 10-11)A-ARM, REAR - UPPER LEFT - BLACK (INC. 10-11)
-
100403-115 BUSHINGBUSHING
-
110403-114 AXLEAXLE
-
120504-592 A-ARM, REAR - LOWER RIGHT - BLACK (INC. 10-11)A-ARM, REAR - LOWER RIGHT - BLACK (INC. 10-11)
-
120504-593 A-ARM, REAR - LOWER LEFT - BLACK (INC. 10-11)A-ARM, REAR - LOWER LEFT - BLACK (INC. 10-11)
-
138409-000 SCREW, CAP-HFH M10-1.25 X100 Z & Y CL10.9SCREW, CAP-HFH M10-1.25 X100 Z & Y CL10.9
-
148409-075 SCREW, CAP-HFH M10X1.25X75 CL10.9 Z & YSCREW, CAP-HFH M10X1.25X75 CL10.9 Z & Y
-
150504-613 KNUCKLE, REAR - ASSEMBLY (INC. 16-19)KNUCKLE, REAR - ASSEMBLY (INC. 16-19)
-
161402-809 BEARINGBEARING
-
170423-423 RING, RETAININGRING, RETAINING
-
180403-038 AXLEAXLE
-
190403-032 BUSHINGBUSHING
-
201406-068 GUARD, BOOT - RIGHT - BLACKGUARD, BOOT - RIGHT - BLACK
-
201406-069 GUARD, BOOT - LEFT - BLACKGUARD, BOOT - LEFT - BLACK
-
210423-545 SCREW, SHOULDERSCREW, SHOULDER
-
221502-562 AXLE, DRIVE (INC. 23-24)AXLE, DRIVE (INC. 23-24)
-
230436-276 REPAIR KIT, BOOT - REAR AXLEREPAIR KIT, BOOT - REAR AXLE
-
240423-845 CLIP, RETAININGCLIP, RETAINING
-
250423-983 O-RINGO-RING
